USER'S GUIDE
Therapeutic and diagnostic endodontic device
«ENDOEST»
CJSC «Geosoft Dent»

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DENT ENDOEST and is the answer not in the manual?

Questions and answers

Related Manuals for GEOSOFT DENT DENT ENDOEST

Summary of Contents for GEOSOFT DENT DENT ENDOEST

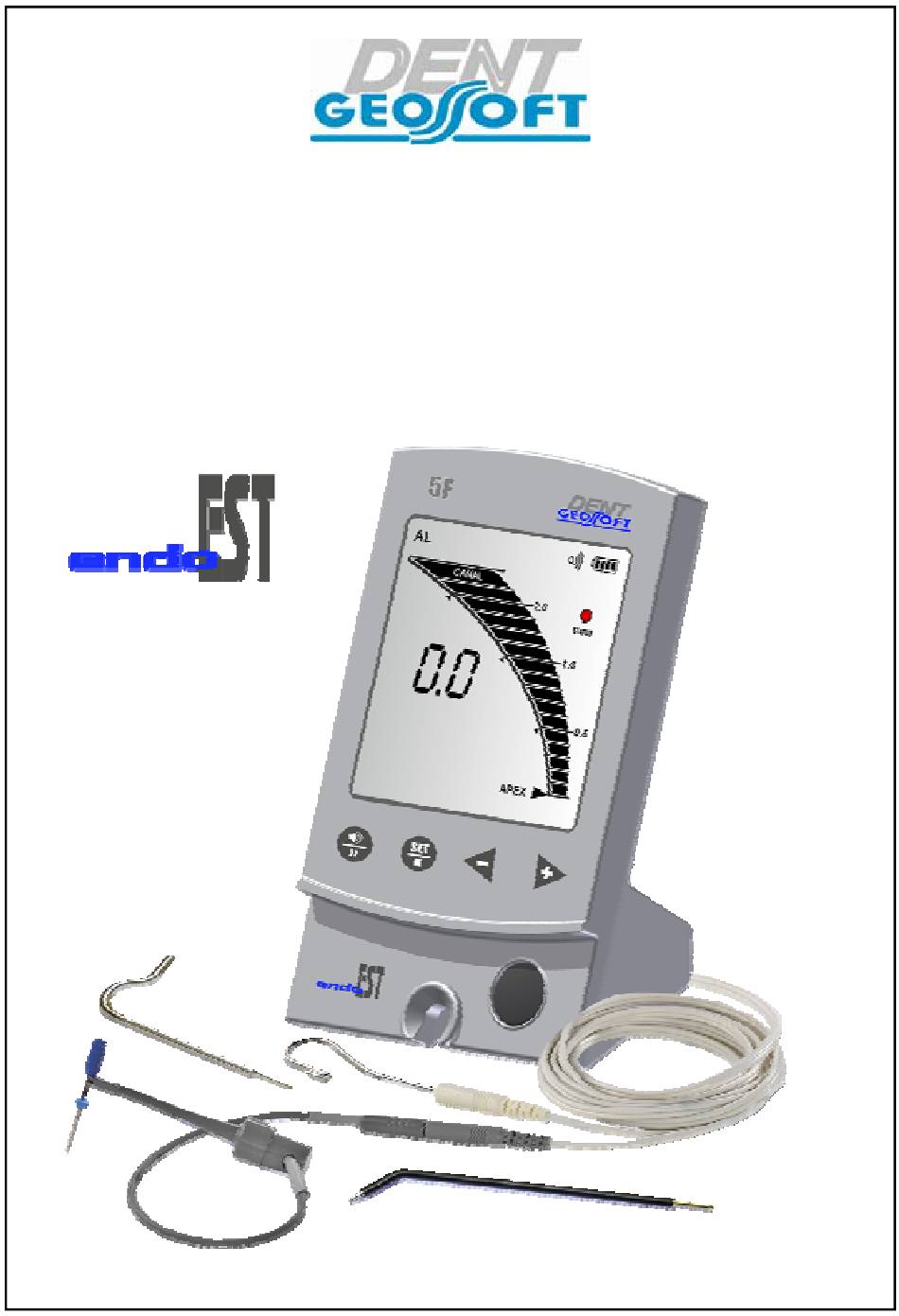

  • Page 1 USER’S GUIDE Therapeutic and diagnostic endodontic device «ENDOEST» CJSC «Geosoft Dent»...
  • Page 2 ! Please, thoroughly read the user’s guide before using the device. Keep the User’s guide for future use. ! Please, address to the manufacturer if you have some questions when using the device. Hotline: +7(495)663-22-11 (extension 170), E-mail: hotline @ geosoft.ru CJSC GEOSOFT DENT (Russia) www.geosoft.ru / en...

  • Page 3: Table Of Contents

    АL mode……………………………………………………….. PULP mode …..………………………………………………. DP mode……………………………………………………… AS mode………………………………………………………. ION mode……………………………………………………… 8. The device sterilization and disinfection………………………. 9. Maintenance………………..………………………………….. 10. Troubleshooting……………………………………………… 11. Storage conditions, transportation and use…………...……... 12. Information on utilization……………………………………. 13. Warranty ......……………………………………... 14. Symbol descriptions…………….…………………………….. hotline @ geosoft.ru...

  • Page 4: General Information

    ! Do not use the device on patients with pacemakers. 1.4. Safety measures and warnings: ! Use the device only with the “Geosoft Dent” authentic accessories (see part 3. “Accessories”). ! Do not dismount and do not change the device construction anyhow.
  • Page 5 (EOD) is based on average data. To set final diagnosis, use the results of EOD together with anamnesis data, patient examination with additional diagnostic methods. ! The device malfunction is possible when using it in the area of strong electromagnetic interference (EMC). Don’t use the device close hotline @ geosoft.ru...

  • Page 6: Delivery Set

    7 - Cable USB (A)-USB (B) for the battery charging (1 pc); 8 - Charger (USB-socket) (1 pc); 9 - Tester apex-locator (1 pc); - User’s guide (1 pc); - Methodology of depophoresis procedures CH HUMANCHEMIE (1 www.geosoft.ru / en...
  • Page 7 ENDOEST Figure 1. Delivery set hotline @ geosoft.ru...

  • Page 8: Accessories

    Fixed on patient’s labia. 5. Cable «Signal Line» (USBВ-plug) GЕ99.169.000 Connective cable. Plug- USBВ ! Accessories are in the device set of delivery and can be also shipped loose at extra cost if necessary. www.geosoft.ru / en...

  • Page 9: Specifications

     The device operation time with a new fully charged battery without recharging …………………………………….…. not less than 10h  The device battery full charge period ………….…………2,5±0,5 h  The battery life cycle ……….………...not less 300 recharge cycles  Overall dimensions …….………………………..126*85*75 mm  Weight….…………………….…………………………...250±30 g hotline @ geosoft.ru...

  • Page 10: The Device Outward Appearance

    USER’S GUIDE  Protection level from dust and liquid penetration ……………..IP41 4.2. Charger:  Input voltage …………………………..…...(100-240) V, ~50/60Hz  Output voltage ……………………………………………….5V; 1А The device life time ………………………………………….5 years 5. THE DEVICE OUTWARD APPEARANCE Fig. 2 www.geosoft.ru / en...
  • Page 11 10 - indicator of battery charge; 11 - button «RESET»; 12- information label with serial number, date of manufacture and firmware version number of the device; 13 - special groove with the rubber sleeve for placement and fixing of a working cable. hotline @ geosoft.ru...
  • Page 12 6 - indicator «PAUSE» in modes «DP», «AS» and «ION»; 7 - indicator « START» in modes «DP», «AS» and «ION»; 8 – indicator of measuring circuit breakage "Attention"; 9 - beep indicator "Sound"; 10 - charging indicator "Battery". www.geosoft.ru / en...

  • Page 13: The Fundamental Operating Instructions Of The Apex-Locator

    1. Root canal with large apical constriction   Root canal that has exceptionally Fig.4 large apical constriction due to a lesion or incomplete development cannot be accurately measured; the measurement results will be less than the actual length. hotline @ geosoft.ru...
  • Page 14 4. Fractured tooth. Leakage through a branch canal Fractured tooth will cause electrical Fig.7 l e a k a g e a n d a c c u r a t e measurement cannot be obtained. A branch canal will also cause electrical leakage.  www.geosoft.ru / en...
  • Page 15 7. Cutting debris on tooth. Pulp inside canal Thoroughly remove all cutting debris Fig.10 on the tooth. Thoroughly remove all the pulp inside the canal. Otherwise an accurate measurement cannot be obtained. hotline @ geosoft.ru...
  • Page 16 10. Extremely dry canal Fig.13 If the canal is extremely dry, the meter will not move until it is quite close to the apex. In this case, try to moisten a canal with saline. www.geosoft.ru / en...

  • Page 17: Make Ready And Using

    - Connect the open plug of the Fig.14 cable for the battery charging to the USB socket of the charger (8- fig.1) - see fig.14 and insert the charger into the standard mains supply socket (110-240)V. Variant 2. Charging from the USB-port: hotline @ geosoft.ru...
  • Page 18 Number of the indicator colored segments is directly proportional to the current level of battery charge (see fig. 15). Fig.15 When the battery charge is lower than minimally allowable level (<20%), you should recharge it (see p.7.1). www.geosoft.ru / en...
  • Page 19 DP- depophoresis, AS - anode sterilization, ION - iontophoresis /electrophoresis. Note: The operation mode you used the last time, before the device switching off or entering the power saving mode, will automatically start when reusing the device. hotline @ geosoft.ru...
  • Page 20 Note: For ensuring the maximum usability of the device in the process, as well as to prevent breakage of the working cable it is possible to output a working cable on the front side of the device. www.geosoft.ru / en...
  • Page 21 Note: To disconnect the cable or the file clip from the device case, take the insulating part of the necessary component plug and pull with a small effort. Attention! Do not disconnect the cable or the file clip holding their wires to avoid break. Avoid wires kinking. hotline @ geosoft.ru...

  • Page 22: Аl Mode

    Before starting to work in the «АL» mode, you should thoroughly read the fundamental operating instructions for the apex- locator considered in the part 6 of the User’s guide. 1. Switch on the device in «АL» mode (see p.7.3) www.geosoft.ru / en...
  • Page 23 >3,0 (in canal) No sound from 3,0 to 1,1 rare discontinuous signal from 1,0 to 0,6 discontinuous signal of GREEN average frequency from 0,5 to 0,1 frequent discontinuous Flashing on and off signal 0,0 (Аpex) <0,0 (Periodontal) CONTINUOUS sound hotline @ geosoft.ru...

  • Page 24: Pulp Mode

    3. Press (or press and hold) the touch button «+» (8– fig.2). The device will start gradually increasing the voltage and displaying the running value of “diagnostic” current (in mcA) passing through tooth (see fig.22). Fig.22 www.geosoft.ru / en...
  • Page 25 Dentist takes final decision of the using data of the anamnesis, survey and inspection of the patient by means of additional methods of diagnostics. 5. The reset of measurements result happens automatically later ~5 sec hotline @ geosoft.ru...

  • Page 26: Dp Mode

    - To change the current setting, shortly press (or press and hold) the touch button «SET/ STOP» (6-fig.2) until the corresponding indication is on the display. Changing the "therapeutic dose" is cyclic and accompanied by an sound signal. www.geosoft.ru / en...
  • Page 27 To proceed, press again on the button «SOUND / PAUSE» or «+» . Indicator «PAUSE» turns off, the current gradually increases to the previously set value, and the process will continue. If necessary to terminate the procedure prematurely, press the touch button «SET /STOP» (6-fig.2). hotline @ geosoft.ru...

  • Page 28: As Mode

    An additional feature of the mode is the increase of acidity in periapex. Studies have shown that during the procedure of the anode sterilization before depophoresis the likelihood of pain, sometimes accompanied by a procedure depophoresis, decreases. www.geosoft.ru / en...
  • Page 29 4. As the current and time increase there is automatically increase of "therapeutic dose". The magnitude of this current value and "dose" (in % of the set value) are displayed on the device. hotline @ geosoft.ru...

  • Page 30: Ion Mode

    To complete the procedure and data reset, press any touch button. Fig.24 7.11. Operating in the «ION» mode When operating in this mode you can carry out the following procedure: a) hydroxyl (non-drug) iontophoresis. www.geosoft.ru / en...
  • Page 31 - lip clip "Big Hook" (5-fig.1) place on the lip of the patient; - file clip (3– fig.1) attach to the metal parts of the file inserted into the root canal. hotline @ geosoft.ru...
  • Page 32 The magnitude of the current value and time (in % of the set value) are displayed on the device. 6. If necessary to pause in the process, press on the touch button «SOUND / PAUSE» (5-fig.2). In this case, the device display www.geosoft.ru / en...
  • Page 33 To complete the procedure and data reset, press any touch button. Fig.25 7.12. Additional functions in modes «DP», «AS» and «ION» 1. Prevention of breakage "therapeutic" chain hotline @ geosoft.ru...
  • Page 34 In this case, the current gradually increase to the previous value, and the process will continue. 7.13. Adjustment the volume level of the sound signal 4 levels volume of the sound signal, including its blackout are provided in this device. www.geosoft.ru / en...
  • Page 35 7.14. The device switching off The device switches off automatically in 40 minutes after the last time of device use. - Press and hold down the button «POWER/ MODE» (4– fig.2) for the device forced switching off. hotline @ geosoft.ru...

  • Page 36: The Device Sterilization And Disinfection

    It is recommended to use ultrasound baths “UltraEst”, “UltraEst- FSM” or “UltraEst-M” manufactured by the “Geosoft Dent”. The belongings sterilization should be carried out directly before the first device use and after every patient to avoid cross infection.

  • Page 37: Maintenance

    It’s only specialists of authorized service departments who should replace the battery. Do not open the device to replace the battery yourself. It may be unsafe. Besides, in the case of device opening by user, warranty is considered to be invalid. hotline @ geosoft.ru...

  • Page 38: Troubleshooting

    Cable for the battery Replace the cable for charging battery charging is damaged   The charger is defected R eplace the charger Problems with   Sound signal volume See p. 7.13 sound level is improperly set www.geosoft.ru / en...
  • Page 39 - Switch on the device power If you have not found the necessary information, You may consult the manufacturer on the hotline phone: +7(495)663-22-11 (extension 170), E-mail: hotline @ geosoft.ru or address to the service department hotline @ geosoft.ru...

  • Page 40: Storage Conditions, Transportation And Use

    80% at atmosphere pressure of (101± 3) kPa. 12. INFORMATION ON UTILIZATION ! Do not throw the device into the system of household rubbish. Utilize the device according to the utilization regulations of the country where it is used . www.geosoft.ru / en...

  • Page 41: Warranty

    Before addressing to the service department connect to the manufacturer consultant on the hotline: Phone: +7(495) 663-22-11 (extension 170), E-mail: hotline @ geosoft.ru 6. The device is accepted for warranty repair only IN COMPLETE package, involving the user’s guide with the stamp of the manufacturer and with the product selling mark.

  • Page 42: Symbol Descriptions

    Protection level from electrical shock: The device of type В Continuous current Do not throw away the device into system of daily rubbish The device serial number Date of the device manufacturing Conformity mark of the device to Russian GOST www.geosoft.ru / en...
  • Page 43 Quality Warranty Card № 1 Date of repair Malfunction Service Master Quality Warranty Card № 2 Date of repair Malfunction Service Master Quality Warranty Card № 3 Date of repair Malfunction Service Master...
  • Page 44 ENDOEST Stamp Serial number Date of manufacture Date of sale Seller ENDOEST Stamp Serial number Date of manufacture Date of sale Seller ENDOEST Stamp Serial number Date of manufacture Date of sale Seller...
  • Page 45 ENDOEST Certificate of acceptance Serial number Date of manufacture Version Controller The stamp of the manufacturer Sales mark Date of sale Seller Stamp of trading organization Sales mark is obligatory! The warranty is invalid without sales mark. hotline @ geosoft.ru...
  • Page 46 USER’S GUIDE For notes www.geosoft.ru / en...
  • Page 47 ENDOEST CJSC GEOSOFT DENT (Russia) Bld. 5, h. 6A, 2-oy Troitskiy per., Moscow, Russia, 129090 PHONE / FAX: +7(495) 663-22-11, E-mail: mail@geosoft.ru Web: www.geosoft.ru Hot line: PHONE: +7(495) 663-22-11 (ext.170), E-mail: hotline @ geosoft.ru Version 21.03.17 hotline @ geosoft.ru...
