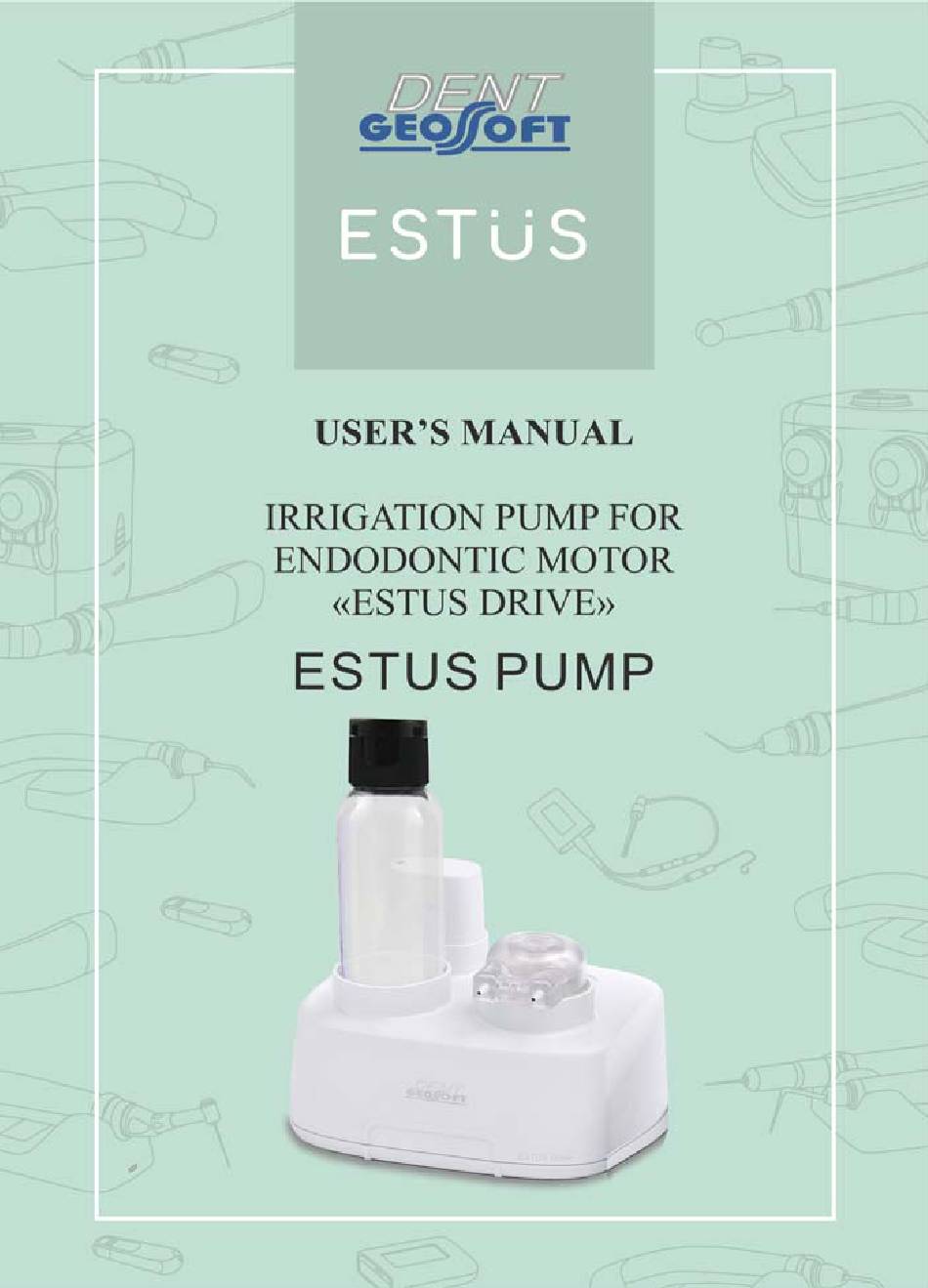

GEOSOFT DENT Estus Pump User Manual

Irrigation pump for endodontic motor "estus drive"
Hide thumbs Also See for Estus Pump:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Estus Pump and is the answer not in the manual?

Questions and answers

Related Manuals for GEOSOFT DENT Estus Pump

Summary of Contents for GEOSOFT DENT Estus Pump

  • Page 2 ! Please, thoroughly read the user’s guide before using the device. Keep the User’s guide for future use. ! Please, address to the manufacturer if you have some questions when using the device. Tel.: +7(495)663-22-11 (extension 109), E-mail: geosoftdent@geosoft.ru JSC GEOSOFT DENT (Russia) www.geosoft.ru/en...

  • Page 3: Table Of Contents

    ESTUS PUMP CONTENT 1. General information.........………………... 2. Delivery set.......………………………………... 3. Accessories……………………………………………………. 4. Technical specifications…......……………………… 5. “Estus Pump” appearance.......……………………… 6. Preparatory stage and working procedure…………………….. ………………………………. 7. Sterilization and disinfection 8. Maintenance………………..………………………………….. 9. Troubleshooting……………………………………………….. 10. Storage, transportation and use ……………………………… 11. Information on utilization…………………………………….

  • Page 4: General Information

    “Estus Drive” with the self-adjusted files (SAF). 1.2. Indication for use: “Estus Pump” is a device to use in dentistry for the endodontic treatment on the stage of the preparation with the simultaneous root canal irrigation.
  • Page 5  Indication of the power supply discharge.  Power saving function. 1.9. Precautions and Warnings ! Use the product with the original “Geosoft Dent” accessories only (see section 3). ! Do not disassemble or modify the product. Violation of the device integrity cancels the warranty.

  • Page 6: Delivery Set

    80%, atmospheric pressure (101±3) kPa. Any violation of these restrictions may cause the device error. 2. DELIVERY SET  Pump unit “Estus Pump” - 1 pc  Battery unit - 1 pc  Pump cassette with silicon tubing - 1 pc ...
  • Page 7 One-port charging stand to charge the battery unit of the pump unit “Estus Pump”. Charging stand “Estus Energy-D” GE39.000.000 Double-port charging stand to charge two battery units of the pump unit “Estus Pump”. Luer connectors set GE99.215.000 The set includes: Luer connector Ø...

  • Page 8: Technical Specifications

    USER’S MANUAL 4. TECHNICAL SPECIFICATIONS 4.1. Pump unit “Estus Pump”:  Power supply - Li-Ро battery unit (2х3,7 V; 800 mАh).  Electric shock protection - Device with the built-in power supply.  The built-in radio module NF-03: frequency range - 2,4-2,525GHz, max output capacity - 7 dBm (0,00501W), cover range -up to 3 m in the direct vision.

  • Page 9: Estus Pump" Appearance

    ESTUS PUMP 5. “ESTUS PUMP” APPEARANCE Figure 1. “Estus Pump” А. Pump unit “Estus Pump”: 1. Pump unit. 2. Control button (see table1). 3. Discharge indicator of the removable battery unit. 4. STATUS indicator. 5. Removable battery unit. 6. Bottle for the irrigating solution.
  • Page 10 USER’S MANUAL 10. Pump cassette silicon tube without a connector. B. Silicon tube with Luer connector and the ring-shaped adapter: 11. Silicon tube with Luer connector (f); 12. Silicon ring-shaped adapter For fixing the tube on the SAF head of the “Estus Drive”...

  • Page 11: Preparatory Stage And Working Procedure

    ESTUS PUMP 6. PREPARATORY STAGE AND WORKING PROCEDURE After transporting the device at the temperature less than + 5°C, before use, keep it at the indoor temperature for 1 hour. 1 hour < +5 °С at +25 °С Step Battery...
  • Page 12 USER’S MANUAL C) Connect the cable USB- USB-B to the сharging stand and the power adapter, then put the power adapter into the mains socket. Power adapter (100-240) V ~50/60 Hz Cable USB - USB-B USB-B-socket D) Wait till the battery is fully charged. green ~ 1 h www.geosoft.ru/en...
  • Page 13 ESTUS PUMP E) Take the charged battery unit out of the сharging stand and put it into the pump unit. In the absence of the battery unit in the socket of the сharging stand, the voltage is automatically disconnected from the terminals of the сharging stand, ensuring complete electrical safety of...
  • Page 14 USER’S MANUAL Step 2. Installation of the pump cassette with silicon tubing А) Install the pump cassette in the special well on the pump unit. To fix the cassette rotate it clockwise to the typical click: B) Joint the silicon tube without the connector to the Tube...
  • Page 15 ESTUS PUMP Step 3. Installation of the bottle with irrigating solution А) Fill the bottle with irrigating solution, for example, sodium hypochlorite. Be sure to pour the solution into the bottle on the distance of the device to avoid letting the aggressive solution on the device elements.
  • Page 16 USER’S MANUAL B) Joint the Luer connector on the pump cassette tube (m) to the Luer connector on the silicon tube (f), slightly rotating Luer (m) clockwise. C) Make sure the tubes are fixed firmly. Tube with Luer (f) Be sure to sterilize the silicon tube with a ring- shaped adapter before use (see section 7 “Sterilization and...
  • Page 17 10 min. the power off or the device is switched off automatically in 10 minutes. STATUS indicator on the pump goes out. Step 7. Audio volume adjustment “Estus Pump” has 4 volume levels: low, normal, high and off. www.geosoft.ru/en...
  • Page 18 USER’S MANUAL To select the required volume hold at power on level hold the button when switching the power on. required Within 10 sec. volume levels volume change one another cyclically. choose required volume level stop pressing the button. Step 8. Pair creating mode activation To start the pump operation with the “Estus Drive”...
  • Page 19 ESTUS PUMP Irrigating solution is supplied with the efficiency, chosen on the endomotor - from 1 to 5 ml/min. The pump stops operating automatically in 1-2 seconds after endomotor operation stop. The pump cassette makes one reverse rotation to prevent the drops formation on the SAF-file.

  • Page 20: Sterilization And Disinfection

    It is strictly forbidden to carry out any heat treatment (in an autoclave, dry air sterilizer, glass bead sterilizers, etc.) of any other components of the product not listed in this paragraph. Instruction #1 Manufacturer: JSC Geosoft Dent (Russia) Product: Pump cassette with silicon tubing   www.geosoft.ru/en...
  • Page 21 ESTUS PUMP Table 2 ATTENTION The minimal guaranteed number of processing cycles Restrictions at repeated is 30. In practice, the number of processing cycles is higher, but depends on the regularity and quality of processing processing by the clinic personnel.
  • Page 22 Keeping specified by the craft package manufacturer (from 21 to 60 days) Instruction # 2 Manufacturer: JSC Geosoft Dent (Russia) Product: Silicon tube with Luer connection and the ring-shaped adapter  Table 3 ATTENTION Silicon tubes with Luer connector and the ring-...
  • Page 23 ESTUS PUMP Not applied in this case. Automatic cleaning/ disinfection Hand cleaning/ Wash the tube outside in the streaming water. disinfection Drying Not applied in this case. Check the tube end of which it is connected to SAF- Inspection, maintenance and file nozzle.

  • Page 24: Maintenance

    USER’S MANUAL To avoid entering the disinfectant into the product housing, it is strictly forbidden to carry out disinfection by immersing the device in any solutions. 8. MAINTENANCE А) Battery unit maintenance:  Charge the battery unit in a timely manner. (see section 6, Step 1). Do not let the battery unit discharge completely.

  • Page 25: Troubleshooting

    ESTUS PUMP 2. Inspect the pump cassette in a timely manner firm connection between the cassette’s inner tube and its outlet nozzles, as well as the lack of skews or pinches of the inner tube. If these defects are found, replace...
  • Page 26 USER’S MANUAL Problem Possible cause Solution The battery unit   The battery unit Replace the battery unit. charges too fast and/or resource is depleted. the pump working The battery unit is not time till the next suitable for use. charging is drastically reduced.
  • Page 27 ESTUS PUMP Problem Possible cause Solution No irrigating solution   The pump power Switch on the pump power supply supply is off. supply (see section 6, Step   The pump cassette is Fix the pump cassette in installed in the well...

  • Page 28: Storage, Transportation And Use

    Dispose of the product in accordance with the disposal regulations of the country in which this product is used. The device “ESTUS PUMP” belongs to the medical waste hazard category of class A (non-hazardous waste of medical institutions).

  • Page 29: Symbol Descriptions

    ESTUS PUMP 12. SYMBOLS DESCRIPTION Symbol Description Warning: Address to supporting documentation. Consult the USER’S MANUAL Do not throw away the device into system of daily rubbish A device serial number A device manufacturing date Manufacturer Non-ionizing radiation sign - the product contains a REV.
  • Page 30 USER’S MANUAL Notes www.geosoft.ru/en...
  • Page 31 ESTUS PUMP Manufactured by JSC GEOSOFT DENT 129090, Russia, Moscow, Vasnetsov pereulok, 7 TEL./ FAX: +7(495) 663-22-11 (ext.109), E-mail: geosoftdent@geosoft.ru Web: www.geosoft.ru/en Representative in Europe: DENTAL WORLD SRL Via Antichi Pastifici, 15-70056 Molfetta (BA). Italy Tel +39 080 3381004; Fax+39 080 3386617 Version 27.12.21...
