Overview Steps for Installation and Commissioning
Work steps
Installation
1
Check the system requirements.
2
Install the wall bracket for the Vitoconnect.
3
Connect the Vitoconnect to the heat generator.
4
Insert the Vitoconnect in the wall bracket.
5
Set up the Vitoconnect power supply connection.
Commissioning
1
Check the network settings.
2
Register the user and set up the heating system.
Installing the Vitoconnect Wall Bracket
Responsible party
Heating contractor
IT professional
Heating contractor
IT professional
Heating contractor
IT professional
Heating contractor
IT professional
Heating contractor
IT professional
IT professional
Heating contractor
System operator

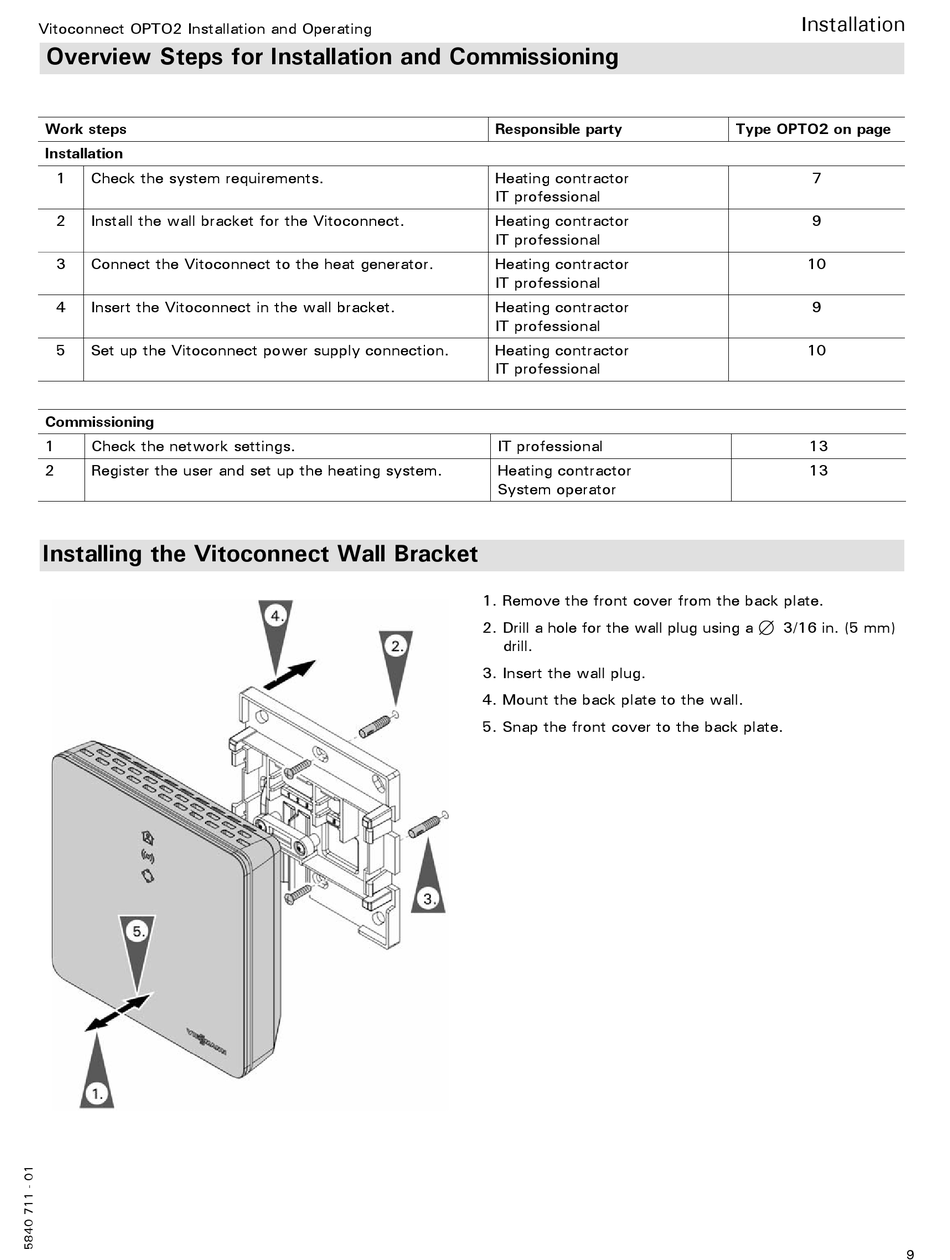

1. Remove the front cover from the back plate.
2. Drill a hole for the wall plug using a 7 3/16 in. (5 mm)
drill.
3. Insert the wall plug.
4. Mount the back plate to the wall.
5. Snap the front cover to the back plate.
Installation
Type OPTO2 on page
7
9
10
9
10
13
13
9
