Installation and Operating
Instructions
for use by heating contractor

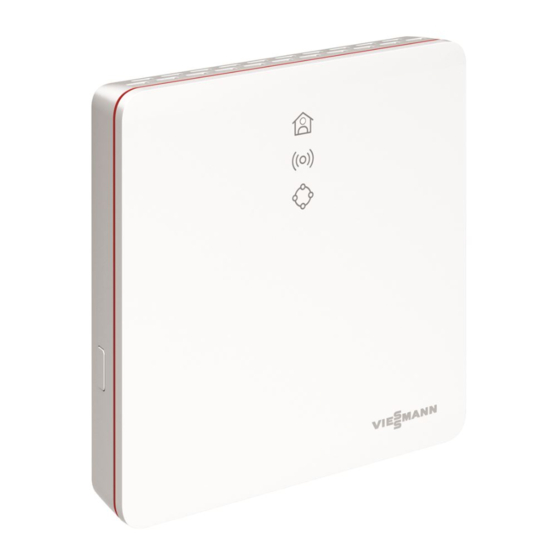

Vitoconnect
Type OPTO2
Communication interface for remote monitoring and remote control of
heating systems over the internet, for the following user interfaces:
ViCare app
Vitoguide
VITOCONNECT
5840 711 - 01
06/2019
Product may not be exactly as shown
IMPORTANT
Read and save these instructions
for future reference.
Please file in Service Binder
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viessmann VITOCONNECT OPTO2
Summary of Contents for Viessmann VITOCONNECT OPTO2
- Page 1 Installation and Operating Instructions for use by heating contractor Vitoconnect Type OPTO2 Communication interface for remote monitoring and remote control of heating systems over the internet, for the following user interfaces: ViCare app Vitoguide VITOCONNECT Product may not be exactly as shown IMPORTANT Read and save these instructions for future reference.
-
Page 2: Safety Instructions
Installers must follow local regulations with respect to readily accessible location for reference in the future installation of carbon monoxide detectors. Follow the by service personnel. Viessmann maintenance schedule of the boiler contained in this manual. For a listing of applicable literature, please see section entitled “Important Regulatory and Installation Requirements”. -
Page 3: Operational Safety
Liability No liability is accepted for lost profit, missed savings, or other direct or indirect consequential damage that arises from the use of Vitoconnect, the Viessmann server or the software, as well as for damage from incorrect use. In the event of any slightly negligent violation of... -
Page 4: About These Instructions
In keeping with the intended use, Vitoconnect products should be installed and operated exclusively in conjunction with the electronic control units and controllers of the Viessmann heat generators supported for this purpose. Vitoconnect products are designed for operation in buildings used for residential and business purposes only. -
Page 5: Table Of Contents
Table of Contents Vitoconnect OPTO2 Installation and Operating Page Safety Safety Instructions .............2 Operational Safety ............3 Liability ..............3 General About these Instructions ..........4 Intended Use .............4 Preparing for Installation Product Information ............6 Data Connections with Vitoconnect, Type OPTO2 ..6 Operation using the ViCare app ........6 Vitoguide ........6... -
Page 6: Product Information
Legend Heat generator with control unit Optolink connecting cable Vitoconnect, type OPTO2 Wi-Fi signal Wi-Fi router (provided by the user) Secure Internet connection to the Viessmann server Viessmann Server Mobile network Wi-Fi connection Smartphone Operation using the ViCare app With the ViCare app you can operate the heating system remotely over the Internet. -
Page 7: System Requirements
User account Regardless of the operating unit, the Vitoconnect requires a valid user account for the Viessmann server. This account is registered automatically at the time of commissioning via the ViCare app: see page 18. Operating unit for ViCare app... -
Page 8: Vitoconnect Installation
Preparing for Installation Vitoconnect OPTO2 Installation and Operating Vitoconnect Installation Wall mounted indoors installation only The installation location must be dry and frost-free. Ensure ambient temperatures between 41 and 104°F (+5 and +40°C). Distance from the heat generator min. 1 ft. (0.3 m) and max. -
Page 9: Overview Steps For Installation And Commissioning
Installation Vitoconnect OPTO2 Installation and Operating Overview Steps for Installation and Commissioning Work steps Responsible party Type OPTO2 on page Installation Check the system requirements. Heating contractor IT professional Install the wall bracket for the Vitoconnect. Heating contractor IT professional Connect the Vitoconnect to the heat generator. -
Page 10: Connection Of The Opto2
Installation Vitoconnect OPTO2 Installation and Operating Connection of the OPTO2 1. Insert the AC plug into the power supply until it locks in place. Vitoconnect bottom view 1. Insert the USB plug A of the Optolink/USB connecting cable into connection of the Vitoconnect. -
Page 11: Display And Operating Elements
Commissioning Vitoconnect OPTO2 Installation and Operating Display and Operating Elements Legend Operating button Reset button LED indicates the current operating status. LED indicates the state of the communication with the Wi-Fi and Viessmann server. LED indicates the system functions and communication with the heat generator (maintenance mode, restart, update, error). - Page 12 Rapidly flashes yellow. No connection to the heat generator: see page 15. Pulsating in red. Maintenance mode (no data transfer to the Viessmann server): see page 17. Flashes red. Vitoconnect is ready to be reset to the delivered condition: see page 15.
-
Page 13: Checking The Network Settings
Commissioning Vitoconnect OPTO2 Installation and Operating Checking the Network Settings Have the following settings on the Wi-Fi router checked and adjusted by an IT professional, if required: Dynamic IP addressing must be active. Port 80, port 123, port 443 and port 8883 must be open for outgoing connections. -
Page 14: Access Point Mode
Operating Vitoconnect OPTO2 Installation and Operating Access Point Mode In access point mode you can query open source licences and configure the Wi-Fi router. Activate the access point mode, e.g. after replacing the Wi-Fi router. Activating access point mode Press the operating button A (see page 11) for longer than 5 seconds, but not longer than 30 seconds. -
Page 15: Measures For Troubleshooting
Check the password at the time of Wi-Fi commissioning. Restart the Vitoconnect: see page 16. Illuminated in yellow. No Internet connection or No connection to the Viessmann server No Wi-Fi connection Illuminated in red. – Check the network setting at the time of Wi-Fi commissioning. -
Page 16: Restart The Vitoconnect
Troubleshooting Vitoconnect OPTO2 Installation and Operating Restarting the Vitoconnect After rectifying the fault, the Vitoconnect has to be restarted. Operating button area Simultaneously press the Reset button and the operating Operating button button for approx. 15 seconds: Operating status LED... -
Page 17: Maintenance Mode
Maintenance Vitoconnect OPTO2 Installation and Operating Maintenance Mode This function suppresses the transmission of messages from the heating system to the Viessmann server, e.g. during maintenance work on the heating system. Operating button area Activating maintenance mode Operating button Press the Reset button for approx. 5 to 15 seconds: Operating status LED LED pulsating in red. -
Page 18: Parts List
Parts Vitoconnect OPTO2 Installation and Operating Parts List Vitoconnect, Type OPTO2 The following details are required when ordering parts: Part no. (see type plate A) Position number of the part (from this parts list) Parts 0001 Wall power supply 0002... -
Page 19: Specification
Specification Vitoconnect OPTO2 Installation and Operating Specification Vitoconnect Rated voltage 12VDC Wi-Fi frequency 2,4 GHz Wi-Fi encryption Unencrypted or WPA2 Frequency band 2400.0 to 2483.5 MHz Max. transmitting power 0.1 W (e.i.r.p.) Internet protocol IPv4 IP assignment DHCP Rated current 0.5A... - Page 20 Vitoconnect OPTO2 Installation and Operating Scan for digital copy of this document...
