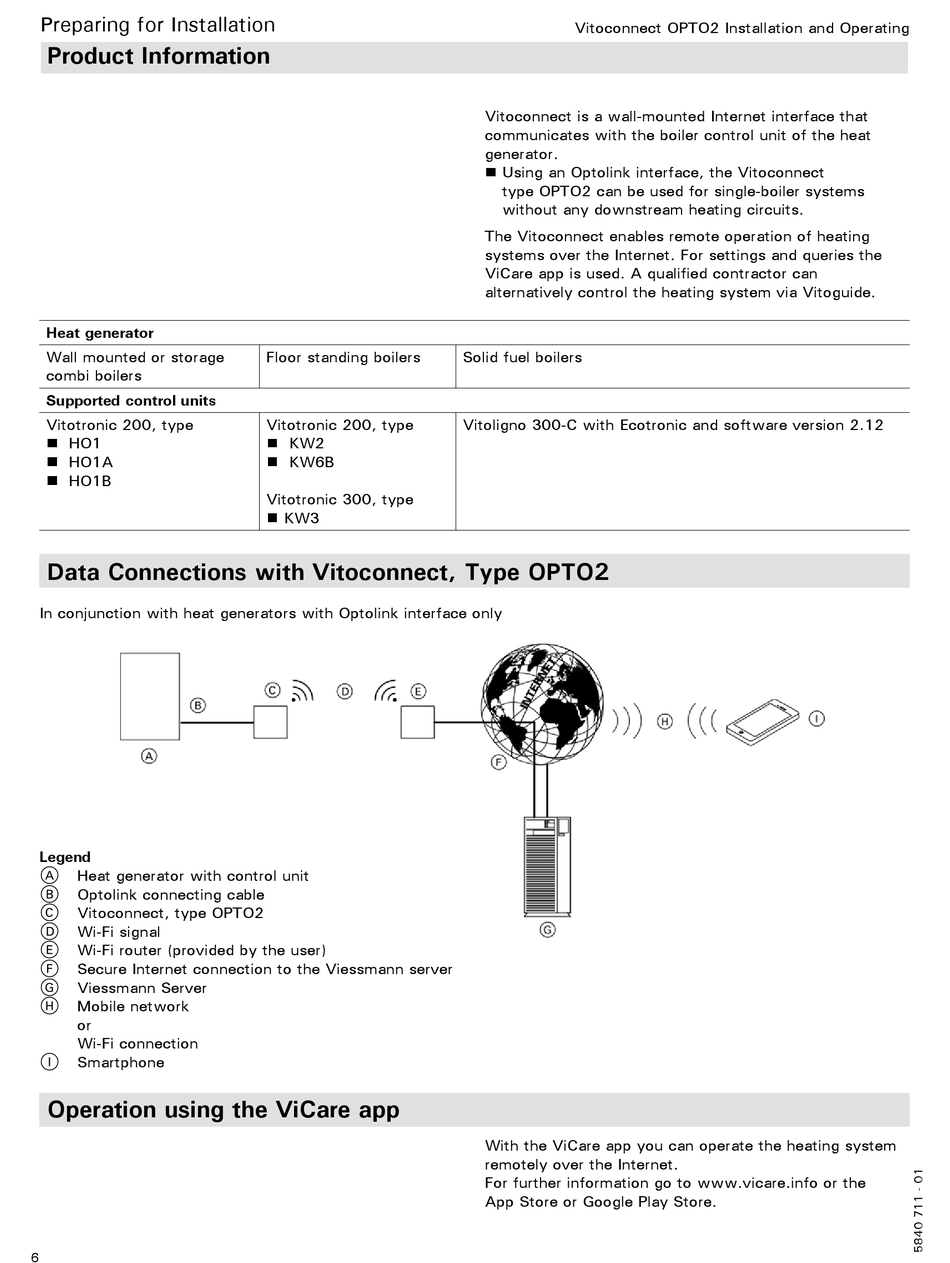

Preparing for Installation

Product Information

Heat generator
Wall mounted or storage
combi boilers
Supported control units
Vitotronic 200, type
HO1
HO1A
HO1B

Data Connections with Vitoconnect, Type OPTO2

In conjunction with heat generators with Optolink interface only
Legend
Heat generator with control unit
A
B Optolink connecting cable
C Vitoconnect, type OPTO2
Wi-Fi signal
D
E Wi-Fi router (provided by the user)
Secure Internet connection to the Viessmann server
F
Viessmann Server
G
H Mobile network
or
Wi-Fi connection
I Smartphone

Operation using the ViCare app

6
Floor standing boilers
Vitotronic 200, type
KW2
KW6B
Vitotronic 300, type
KW3
Vitoconnect OPTO2 Installation and Operating
Vitoconnect is a wall-mounted Internet interface that
communicates with the boiler control unit of the heat
generator.
Using an Optolink interface, the Vitoconnect
type OPTO2 can be used for single-boiler systems
without any downstream heating circuits.
The Vitoconnect enables remote operation of heating
systems over the Internet. For settings and queries the
ViCare app is used. A qualified contractor can
alternatively control the heating system via Vitoguide.
Solid fuel boilers
Vitoligno 300-C with Ecotronic and software version 2.12
With the ViCare app you can operate the heating system
remotely over the Internet.
For further information go to www.vicare.info or the
App Store or Google Play Store.
