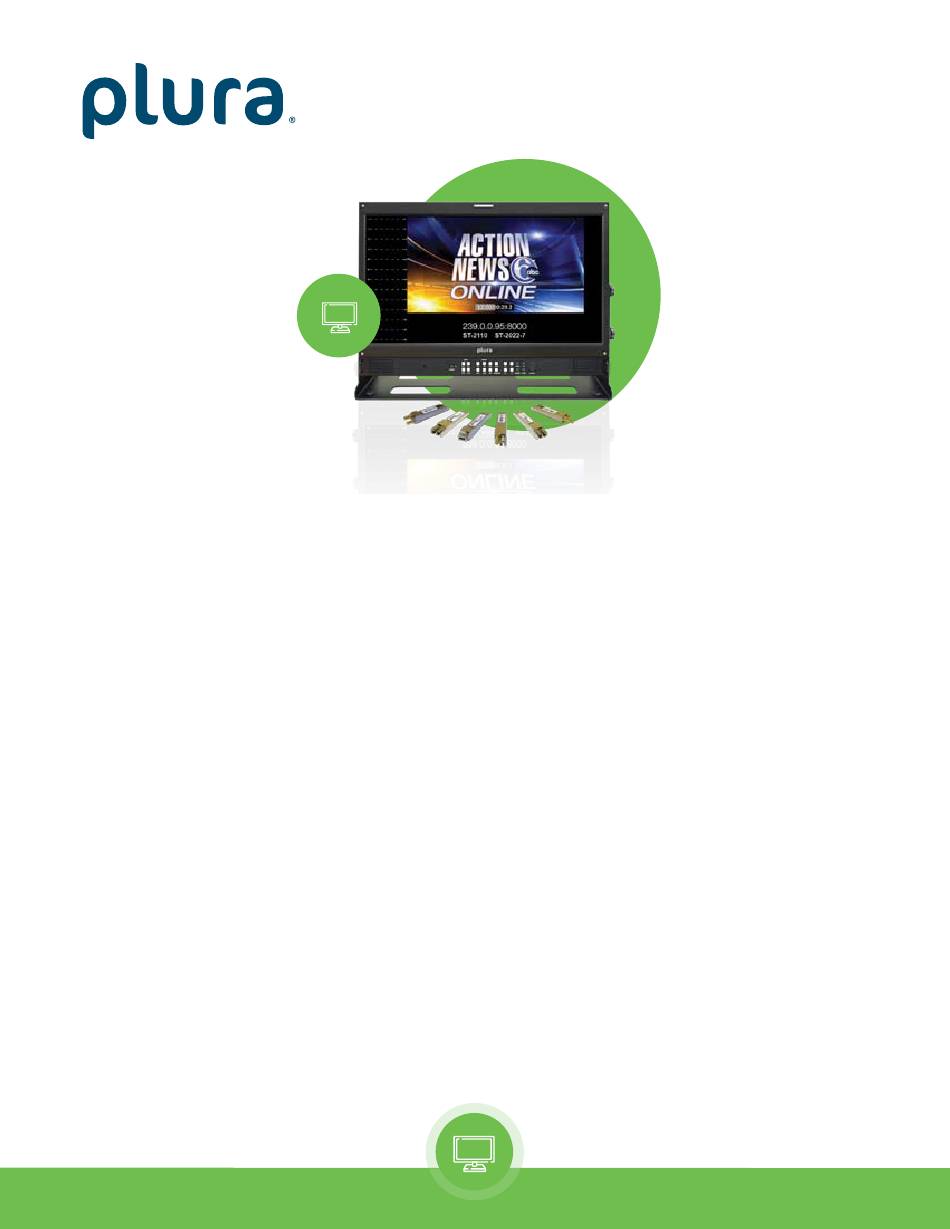

- Page 1 Operating Instructions SFP-324-H-7 SFP-Modules SFP-H & SFP-H-7 "HYBRID" Series SFP-317-H / SFP-317-H-7 SFP-321-H / SFP-321-H-7 SFP-324-H / SFP-324-H-7 SFP-332-H / SFP-332-H-7 SFP-347-H / SFP-347-H-7 SFP-355-H / SFP-355-H-7 SFP-365-H / SFP-365-H-7 SFP-384-H / SFP-384-H-7 Re-imagine Beyond Technology sales@plurainc.com...
-
Page 2: Table Of Contents
Operating Instructions SFP-H / SFP-H-7 PRECAUTION--------------------------------------------------------------------------------------------------6 OVERVIEW------------------------------------------------------------------------------------------------9 GENERAL FEATURES -------------------------------------------------------------------------------------9 FUNCTIONS AND I/O DESCRIPTIONS --------------------------------------------------------------- 10 ----------------------------------------------------------------------------------------------- 10 RONT SFP-317-H------------------------------------------------------------------------------------------ 10 Front Keypad--------------------------------------------------------------------------------------- 10 Front Keypad Operations ------------------------------------------------------------------------- 11 SFP Modules Information ------------------------------------------------------------------------- 11 Front panel LED Operations----------------------------------------------------------------------- 12 ... - Page 3 Operating Instructions SFP-H / SFP-H-7 How to Select Video Source by OSD----------------------------------------------------------- 19 MENU OPTIONS FOR DIFFERENT I/P SOURCES ---------------------------------------------------- 20 Menu of different Input source ------------------------------------------------------------------- 20 Adjust ---------------------------------------------------------------------------------------------- 21 Color Temperature Control------------------------------------------------------------------------ 21 SCAN ----------------------------------------------------------------------------------------------- 21 ...
- Page 4 Operating Instructions SFP-H / SFP-H-7 GPI Control & GPI#-------------------------------------------------------------------------------- 30 SETUP MENU OPTIONS ---------------------------------------------------------------------------- 31 Setup Load & Setup Save------------------------------------------------------------------------- 31 Function 1 & Function 2 & Function 3----------------------------------------------------------- 31 On Screen Display --------------------------------------------------------------------------------- 32 OSD Option ---------------------------------------------------------------------------------------- 32 ...
- Page 5 Operating Instructions SFP-H / SFP-H-7 Aspect Ratio --------------------------------------------------------------------------------------- 40 Position--------------------------------------------------------------------------------------------- 40 PIP Blend ------------------------------------------------------------------------------------------- 41 PIP Swap ------------------------------------------------------------------------------------------- 41 Audio Select --------------------------------------------------------------------------------------- 41 Sub Window Function ----------------------------------------------------------------------------- 41 OSD TREE ------------------------------------------------------------------------------------------- 43 -------------------------------------------------------------------------------------------------- 44 IDEO ------------------------------------------------------------------------------------------------- 45 UDIO...
-
Page 6: Precaution
Operating Instructions SFP-H / SFP-H-7 Precaution B efore operati ng the set, please read this m anual carefully. W A R N IN G T o r e duce the r is k of a ny e le ctr ic s hock, do not r e move back cove r as the r e ar e no us e r s e r v ic e a ble par ts ins ide . - Page 7 Operating Instructions SFP-H / SFP-H-7 6. W ater and M oisture D o not use this unit near w ater. 7. T ransportation A product should be transported w ith care. E xcessive force and uneven surfaces m ay cause the dam age to product. 8.
- Page 8 Operating Instructions SFP-H / SFP-H-7 17. S ervice T urn this product off, unplug from the m ains supply and refer servicing to qualified service personnel under the follow ing conditions: A . If the pow er- supply cord or plug is dam aged. B .
-
Page 9: Overview
Coaxial SFP I/O connectivity, IP SFP+ over Fiber decoding "ST-2110 & ST-2022" with Third-Party H/W decoder and the NEW PIPM-R-7 "Plura FPGA based module supports 3G SMPTE ST 2110 signals across dual 10 GigE and it features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7, providing redundancy protection for critical distribution and monitoring applications “hitless switching”. -
Page 10: Functions And I/O Descriptions
Operating Instructions SFP-H / SFP-H-7 3. Functions and I/O descriptions 1) Front SFP-317-H Headphone Speaker USB-PIPM Front Key FFront Keypad • Re-imagine Beyond Technology sales@plurainc.com... -
Page 11: Front Keypad Operations
Operating Instructions SFP-H / SFP-H-7 Front Kepad Operationserations • Key Name Operation STANDBY ►Power ON/OFF Button. This button is operated after being pressed about 3 seconds. ►SFP Modules Input CH selected. INPUT SFP1/SFP2/SDI/PIPM ►Channels in the input signal, the key led light. OUTPUT SFP1/SFP2/SDI/AUX/ ►SFP Modules Output CH selected. -
Page 12: Front Panel Led Operations
Operating Instructions SFP-H / SFP-H-7 • Front panel LED Operations Green LED ON when Function Key and Power On RED LED ON in standby mode • Speaker Outt Interface Description Speaker R/L out 8 ohm±15%, Max 3W + 3W 2) Rear I/O Details •... -
Page 13: Pipm-R-7 Option
Operating Instructions SFP-H / SFP-H-7 • PIPM-R-7 OPTION PIPM-R-7 In OPS 8p Connector • PIPM-R-7 Connectivity Re-imagine Beyond Technology sales@plurainc.com... -
Page 14: Pipm-R-7 Configuration Page
Operating Instructions SFP-H / SFP-H-7 • PIPM-R-7 configuration page Please enter the static IP address listed on the back of the monitor. You will see the below webpage. Select Video Level Set PTP Re-imagine Beyond Technology sales@plurainc.com... - Page 15 Operating Instructions SFP-H / SFP-H-7 Select input setting Select SDP, Manual or NMOS/Ember. SDP - The SDP method greatly simplifies the configuration process for the Input Stream Selection fields. Selecting SDP causes the following four fields to display: o SDP URL Video - Enter the SDP URL Video string. o SDP URL Audio - Enter the SDP URL Audio string.
-
Page 16: Connections
Operating Instructions SFP-H / SFP-H-7 • RJ-45 Connections ETHERNET/UPDATE RJ 45 Jack Face - Firmware Upgrade/ System Controller (Ethernet) & GPI Remote PIN Assignment 8 PIN COMMON(GND) 4 PIN GPI 4 PORT GPI 7 PORT 7 PIN 3 PIN GPI 3 PORT (STAND BY/POWER ON/OFF) 6 PIN GPI 6 PORT... -
Page 17: Menu Overview
Operating Instructions SFP-H / SFP-H-7 CVBS2/Y/G/Y In Y, Pb, Pr Component Video Input CVBS / Composite/S-Video Input CVBS3/Pb/B/C In CVBS1/Pr/R Out CVBS2/Y/G/Y Out Component/GBR/Composite1,2,3/ S-Video Loop Out CVBS3/Pb/B/C Out AUDIO R In DVI-I/Component/GBR/Composite1,2,3/S-Video Sound Input AUDIO L In AUDIO R Out AUDIO MONITOR OUT AUDIO L Out AC IN... -
Page 18: Basic Operation
Operating Instructions SFP-H / SFP-H-7 3. While the desired menu option is selected, press to move to the second level. SEL/INPUT 4. Use button to select the second menu option. Adjust / Take Turn Right/ Left 5. Press to move to the third level: Some menu options require additional steps. SEL/INPUT 6. -
Page 19: On Screen Menu Selection And Adjustment
Operating Instructions SFP-H / SFP-H-7 6. ON Screen Menu Selection and Adjustmentustment How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. 2. Press the button and then use UP/DOWN (SEL/INPUT)/MENU button to SEL/INPUT display the available menu. -
Page 20: Menu Options For Different I/P Sources
Operating Instructions SFP-H / SFP-H-7 8. MENU OPTIONS FOR DIFFERENT I/P SOURCES Menu of different Input source < Video (NTSC) menu> < PC menu> < SDI, HDMI menu> < Video (NTSC) menu> < PC menu> < SDI, HDMI menu> Re-imagine Beyond Technology sales@plurainc.com... -
Page 21: Adjust
Operating Instructions SFP-H / SFP-H-7 Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint N/A (PC, DVI, HDMI, Component), Phase (Component). Color Temperature Control ... -
Page 22: Aspect Ratio
Operating Instructions SFP-H / SFP-H-7 Aspect Ratio - For setting the aspect ratio. - Full Screen: The images are displayed to the full panel resolution. - Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1: The images are displayed to the selected aspect ratio. - AFD function Added - PC mode: Full Screen &... -
Page 23: Mono/Blue Only
Operating Instructions SFP-H / SFP-H-7 Mono/Blue Only - Mono color: For selecting monochrome images. - Blue Only: IN blue ONLY PC Menu (pc mode only) - PC input mode ONLY - Select Auto-adjust to adjust Phase, HV position, Frequency - Auto-Adjust automatically set the optimum values of Phase, HV position and Frequency. -
Page 24: Nr (Noise Reduction)
Operating Instructions SFP-H / SFP-H-7 NR (Noise Reduction) -Noise Reduction on/off. (NR is for Video signal (HD-SDI, Composite, S-Video and Y.Pb.Pr) & DTV timing. SFP Setting - SFP 1/ SFP 2 / SDI / AUX / SDI Main / SDI Sub available Output ports. - SFP 1/ SFP 2 / SDI / PIPM available Input ports. -
Page 25: Audio Menu Options
Operating Instructions SFP-H / SFP-H-7 9. AUDIO MENU OPTIONS MAIN / SUB Audio out -Main: Select Internal Speaker out. (Auto/SDI1/SDI2/HDMI/Line in) -Sub: Select sub display sound. (Auto/SDI1/SDI2/HDMI/Line in) SDI Main/ SDI Sub Audio Output Channel - Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off) SDI Main/ SDI Sub Audio Group ... -
Page 26: Level Meter Type
Operating Instructions SFP-H / SFP-H-7 Level Meter Type -Pair: Displays Right and Left Channels in pairs -Group: Displays Right and Left Channels in groups Level Meter Position - Level Meter Position selection. (TOP/Middle/Bottom) Level Meter Scale - Level Meter Scale mode selection (SMPTE Digital/EBU Digital/SMPTE IRT/EBU IRT/Nordic/ BBC/EBU/DIN/Expander DIN/SMPTE VU/EBU VU/France Audio Loudness (LKFS) -
Page 27: Volume
Operating Instructions SFP-H / SFP-H-7 Volume - Adjust the speaker or headphone Volume level. (0~32) Lip Sync Delay - Lip sync delay: Off, 1 Frame, 2 Frame Re-imagine Beyond Technology sales@plurainc.com... -
Page 28: Marker Menu Options
Operating Instructions SFP-H / SFP-H-7 MARKERS MENU OPTIONS Marker & User Marker < Marker > < User Marker > 1. Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 fitted panel size marker on screen. 2. User Marker: The user wants Marker size setting. (Below panel size) Example (1440x900 panel) 16:9 (16:9 Marker) 16:9 (4:3 Marker) -
Page 29: Center Maker
Operating Instructions SFP-H / SFP-H-7 Center Maker - “+” Marker on center of screen Marker Width -Marker line thickness setting. (0~10) Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED, Black) - Marker Back Color: Select Marker Back Color. -
Page 30: Gpi Menu Options
Operating Instructions SFP-H / SFP-H-7 GPI MENU OPTIONS GPI Control & GPI# - For allocating functions to particular GPI pins. - When remote control operations are to be performed using the GPI Controller. - GPI Control: GPI function Enable/Disable - GPI 1 ~ 7 GPI Function Description... -
Page 31: Setup Menu Options
Operating Instructions SFP-H / SFP-H-7 SETUP MENU OPTIONS Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. Function 1 & Function 2 & Function 3 ... -
Page 32: On Screen Display
Operating Instructions SFP-H / SFP-H-7 Safety Area Marker Select Safety Area Time Code Time Code Display Caption Closed Caption On/Off Audio Mute Toggles Audio speaker/headphone Mute . Still Image Still Image On/Off Flip H-Flip Display ON/OFF Gamma Select Gamma Level Select (0.8 ~ 3.0) Vector Color Select 100% or 75% I/P Mode... -
Page 33: Time Code
Operating Instructions SFP-H / SFP-H-7 Time code Time code Enable: Time code Display (off/VITC/ATC LTC/ATC VITC1/ATC VITC2) Time code size: Time code size selection. (Small, Middle, Large) Time code Position: Time code display position selection (L-T, C-T, R-T, L-B, C-B, R-B) Time code Transparency: Disable blending Timecode background with video image. -
Page 34: Sdi Signal State
Operating Instructions SFP-H / SFP-H-7 Input Label: Display user custom name instead of standard input source ID on source OSD and message OSD SDI Signal state SDI Signal date display on/off (H/V sync, image, Audio, Audio Phase, EDH packet, EDH FF CRC, EDH APCRC, SAC, EAV, VPI) Advanced ... -
Page 35: Screen Saver
Operating Instructions SFP-H / SFP-H-7 Screen Saver - Blue Screen: Enables screen saver functions if necessary. - BG Gray: Select gray level for outside video boundary - Power save Mode: DPMS ( Display Power Management Signaling Power Save Mode Screen Control ... -
Page 36: Network Configuration
Operating Instructions SFP-H / SFP-H-7 Network Configuration -Plura System Controller (PSC-400/500) Network setting. Load Network Settings: select “Enter”. (IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) and Select “Apply” . X768 Mode -Selects X768 native PC video timings. (Auto/1024x/1280x/1360x/1366x) Caption ... -
Page 37: Waveform Format (Sdi Only)
Operating Instructions SFP-H / SFP-H-7 - 608 Caption mode Select. (C/C1, C/C2, C/C3, C/C4, TEXT1, TEXT2, TEXT3, TEXT4, OFF) Waveform Format (SDI ONLY) Press the WAVEFORM button to display the WAVEFORM Mode Y-Pb-Pr Waveform - Y_Pb_Pr WAVEFORM, Audio Level Meter, Video Info status & Time code Display. Y-Waveform + Vector Scope ... -
Page 38: Double
Operating Instructions SFP-H / SFP-H-7 Double SDI 1 SDI 2 TC: 00:00:00:00 TC: 00:00:00:00 SDI 1 1920x1080I SDI 2 1920x1080I - SDI 1, 2 & WAVEFORM & Vector Scope & Audio Level Meter, Video Info status & Time code Display. -
Page 39: Line
Operating Instructions SFP-H / SFP-H-7 Line # -line select Line Display -off/on/5 sec Dual Link Mode (SDI only) -Dual Link Mode select. (Auto/Off/RGB444/YCbCr444/YCbCr422/Progressive) Set ID & Active Set ID - Set ID is required for remote control. Set ID range (01~99). - Set Active SET ID number to enable Remote control. -
Page 40: Aspect Ratio
Operating Instructions SFP-H / SFP-H-7 Aspect Ratio - Choose PIP size PIP Small POP2 PIP1 Position - Choose the PIP position Re-imagine Beyond Technology sales@plurainc.com... -
Page 41: Pip Blend
Operating Instructions SFP-H / SFP-H-7 PIP Blend -Blend setting PIP Swap - Using Swap option, you can swap the program or source. Audio Select - Using Audio Swap option, you can swap the audio of the program or source. Sub Window Function ... - Page 42 Operating Instructions SFP-H / SFP-H-7 - Part Sub Window: images are scaled to fit the screen in half. - FULL, Part function is only available with Digital input (SDI1, SDI2, DVI, HDMI) Sub Window Full Sub Window Part Re-imagine Beyond Technology sales@plurainc.com...
-
Page 43: Osd Tree
Operating Instructions SFP-H / SFP-H-7 OSD TREE Video Audio Marker OSD MENU Setup Re-imagine Beyond Technology sales@plurainc.com... -
Page 44: Video
Operating Instructions SFP-H / SFP-H-7 1) Video Re-imagine Beyond Technology sales@plurainc.com... -
Page 45: Audio
Operating Instructions SFP-H / SFP-H-7 2) Audio Re-imagine Beyond Technology sales@plurainc.com... -
Page 46: Marker
Operating Instructions SFP-H / SFP-H-7 3) Marker Re-imagine Beyond Technology sales@plurainc.com... -
Page 47: Gpi
Operating Instructions SFP-H / SFP-H-7 4) GPI Re-imagine Beyond Technology sales@plurainc.com... -
Page 48: Setup
Operating Instructions SFP-H / SFP-H-7 5) Setup Re-imagine Beyond Technology sales@plurainc.com... -
Page 49: Pip
Operating Instructions SFP-H / SFP-H-7 6) PIP Re-imagine Beyond Technology sales@plurainc.com... - Page 50 Operating Instructions SFP-H / SFP-H-7 Contact Us U.S.A. Corporate Offices: Plura Broadcast, Inc. Ph: +1-602-944-1044 Sales@plurainc.com GERMANY Plura Europe GmbH Ph: +49-6725-918006-70 Sales@plurainc.com U.A.E. Plura MEA Ph: +971-50-715-9625 Sales@plurainc.com S. KOREA Plura Asia Ph: +82-10-6688-8826 Sales@plurainc.com Re-imagine Beyond Technology sales@plurainc.com...
