Page 1: Keysight Uxg Agile Vector Adapter

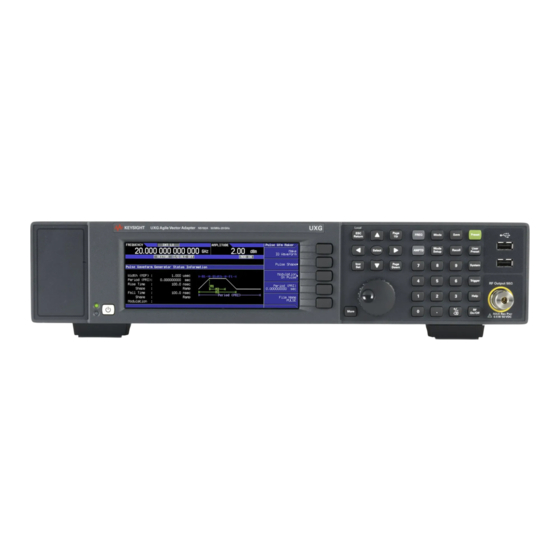

Keysight N5192A/94A UXG X-Series Agile Vector Adapter Getting Started Guide... -
Page 2: Notices
EULA. Keysight Keysight Technologies, Inc. as with the terms of such license. shall be under no obligation to governed by United States and U.S. - Page 3 Where to Find the Latest Information To receive the latest updates by email, subscribe to Keysight Email Updates at the following URL: http://www.keysight.com/find/MyKeysight Information on preventing instrument damage can be found at: www.keysight.com/find/PreventingInstrumentRepair Is your product software up-to-date? Periodically, Keysight releases software updates to fix known defects and incorporate product enhancements. To search for software updates for your product, go to the Keysight Technical Support website at: http://www.keysight.com/find/techsupport...
-
Page 5: Table Of Contents
Keysight UXG Agile Vector Adapter Table of Contents Keysight UXG Agile Vector Adapter Getting Started Guide Notices Manual Part Number Edition Warranty Technology Licenses U.S Government Rights Safety Notices Documentation Overview 1 Safety Information Warnings, Cautions, and Notes General Safety Considerations Instrument Markings 2 Getting Started Statement of Compliance... - Page 6 Keysight UXG Agile Vector Adapter Run Self Tests Self Test Failure Ordering Accessories Proper Use and Cleaning Cleaning Suggestions Returning an Instrument to Keysight Technologies Contacting Keysight 3 Regulatory Information Certification Assistance South Korean Class A EMC Declaration: Safety Acoustic Statement: (European Machinery Directive)
-
Page 7: Documentation Overview
Keysight UXG Agile Vector Adapter Documentation Overview Getting Started Guide Safety Information Available in hardcopy and as part of the Receiving the Instrument online help file. Obtaining User Documentation Environmental & Electrical Requirements Basic Setup Self Tests Accessories Regulatory Information User's Guide Vector Adapter Overview Available as part of the online help file. - Page 8 Keysight UXG Agile Vector Adapter Configuration Guide Information to configure instruments for purchase Available as a PDF and as part of the online help file. Error Messages Provides the instrument's error messages and brief descriptions Available as a PDF and as part of the online help file.
-
Page 9: Safety Information
Keysight N5192A and N5194A UXG Geting Started Guide 1 Safety Information See "Warnings, Cautions, and Notes" on page 9 See "General Safety Considerations" on page 10 See "Instrument Markings" on page 11 Warnings, Cautions, and Notes The documentation for this product uses the following safety notations. Familiarize yourself with each notation and its meaning before operating the instrument. -
Page 10: General Safety Considerations
1 Safety Information General Safety Considerations If the instrument is not used as specified, the protection provided by the equipment could be impaired. The instrument must be used in a normal condition only, in which all means for protection are intact. No operator serviceable parts inside. -
Page 11: Instrument Markings
1 Safety Information Instrument Markings The instrument has the following markings. Familiarize yourself with each marking and its meaning before operating the instrument. The ON/ STANDBY symbol is used to mark the positions of the instru- ment power line switch. This symbol indicates that the input power required is AC. - Page 12 1 Safety Information This symbol indicates separate collection for electrical and electronic equipment, mandated under EU law as of August 13, 2005. All electric and electronic equipment are required to be separated from normal waste for disposal (Reference WEEE Directive, 2002/96/EC). This symbol indicates compliance with the China RoHS regulations for paper/fiberboard packaging.
-
Page 13: Getting Started
See "Configuring for Remote Control " on page 20 See "Performing Self Test" on page 22 See "Ordering Accessories" on page 23 See "Proper Use and Cleaning" on page 24 See "Returning an Instrument to Keysight Technologies" on page 24 See "Contacting Keysight" on page 24... -
Page 14: Statement Of Compliance
2 Getting Started Statement of Compliance This product has been designed and tested in accordance with accepted industry standards, and has been supplied in a safe condition. The documentation contains information and warnings that must be followed by the user to ensure safe operation and to maintain the product in a safe condition. -
Page 15: Verifying Pre-Installed Software License
If the software license(s) was ordered with the instrument for pre-installation and it does not show in the instrument, please contact Keysight Technologies: http://www.keysight.com/find/contactus Keysight N5194A UXG X-Series Agile Vector Adapter Getting Started Guide... -
Page 16: Instrument Physical Characteristics
2 Getting Started Instrument Physical Characteristics Height: 89 mm (3.5 in) Depth: 559 mm (22 in) Width : 427 mm (16.8 in) Weight: 17.2 kg (37.9 lb) Meeting Environmental and Electrical Requirements To avoid the loss of data or current user instrument states that have not been permanently saved to non- volatile memory, the instrument should always be powered down either via the instrument's front panel power button or the appropriate SCPI command. -
Page 17: Line Setting Requirements
2 Getting Started Line Setting Requirements Before switching on this instrument, ensure that the following items have been checked: the correct rating of the service breaker the supply voltage is in the specified range The instrument has auto-ranging line voltage input; be sure that the supply voltage is within the specified range and voltage fluctuations do not exceed 10 percent of the nominal supply voltage. -
Page 18: Connecting The Ac Power Cord
2 Getting Started Connecting the AC Power Cord Install the instrument so that the detachable power cord is readily identifiable and is easily reached by the operator. The detachable power cord is the instrument disconnecting device. It disconnects the mains circuits from the mains supply before other parts of the instrument. -
Page 19: Configuring The Display
2 Getting Started Configuring the Display Screen saver settings are persistent states; they are unaffected by preset or a power cycle. Use the arrow keys, numeric keypad, or front panel knob to adjust numeric values. UXG agile vector adapters are shipped from the factory with default display settings. When the instrument display is not required to be active for long periods of time, consider using the Screen Saver Mode to extend the life of the display. -
Page 20: Configuring For Remote Control
2 Getting Started Configuring for Remote Control LAN Configuration The following figures show the instrument key menu maps to use to configure the LAN interface and the various services. Configuring the LAN Interface Keysight N5194A UXG X-Series Agile Vector Adapter Getting Started Guide... - Page 21 2 Getting Started Enabling LAN, Web, and SCPI Services Keysight N5194A UXG X-Series Agile Vector Adapter Getting Started Guide...
-
Page 22: Performing Self Test
Include a detailed description of the most significant failure (root failure) and any displayed error mes- sages. Also include the model, serial number, installed options, and firmware version. See "Returning an Instrument to Keysight Technologies" on page 24 for return instructions. Keysight N5194A UXG X-Series Agile Vector Adapter Getting Started Guide... -
Page 23: Ordering Accessories
2 Getting Started Ordering Accessories You can purchase instrument accessories or get the latest documentation (see the table below) by contacting Keysight Technologies. See also, See "Contacting Keysight" on page Model, Option, or Part Number Description Additional removable solid state drive Transit Case 100-pin LVDS cable, 1.5 m length 1CC131A... -
Page 24: Proper Use And Cleaning
To prevent dust build-up that could potentially obstruct ventilation, periodically clean the instrument’s cover. Use a dry cloth or a cloth slightly dampened with water to clean the external case parts. Returning an Instrument to Keysight Technologies 1. Gather as much information as possible about the instrument’s problem. -
Page 25: Regulatory Information
Certification Keysight Technologies certifies that this product met its published spe- cifications at the time of shipment from the factory. Keysight Technologies further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by the Institute’s calibration facility, and to the calibration facilities of other... -
Page 26: South Korean Class A Emc Declaration
3 Regulatory Information South Korean Class A EMC Declaration: This equipment has been conformity assessed for use in business environments. In a residential environment this equip- ment may cause radio interference. This EMC statement applies to the equipment only for use in business environment. Safety Complies with the essential requirements of the European Low Voltage Directive as well as current editions of the following standards (dates and editions are cited in the Declaration of Conformity):... -
Page 27: Open Source Licenses
Keysight N5192A and N5194A UXG Geting Started Guide 4 Open Source Licenses This chapter contains the licenses for open source software used in the instrument. Apple mDNSresponder Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ 1. Definitions “License” shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. - Page 28 4 Open Source Licenses “Work” shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). “Derivative Works”...
- Page 29 4 Open Source Licenses excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the fol- lowing places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works;...
-
Page 30: Sun Onc/Rpc
4 Open Source Licenses Sun ONC/RPC Portions of this software are copyright Sun Microsystems, Inc. and are licensed under the following terms: Sun's ONC/RPC Copyright Sun RPC is a product of Sun Microsystems, Inc. and is provided for unrestricted use provided that this legend is included on all tape media and as a part of the software program in whole or part. - Page 31 This information is subject to change without notice. © Keysight Technologies 2017-2018 Edition 1, November 2018 N5191-90016 www.keysight.com...
