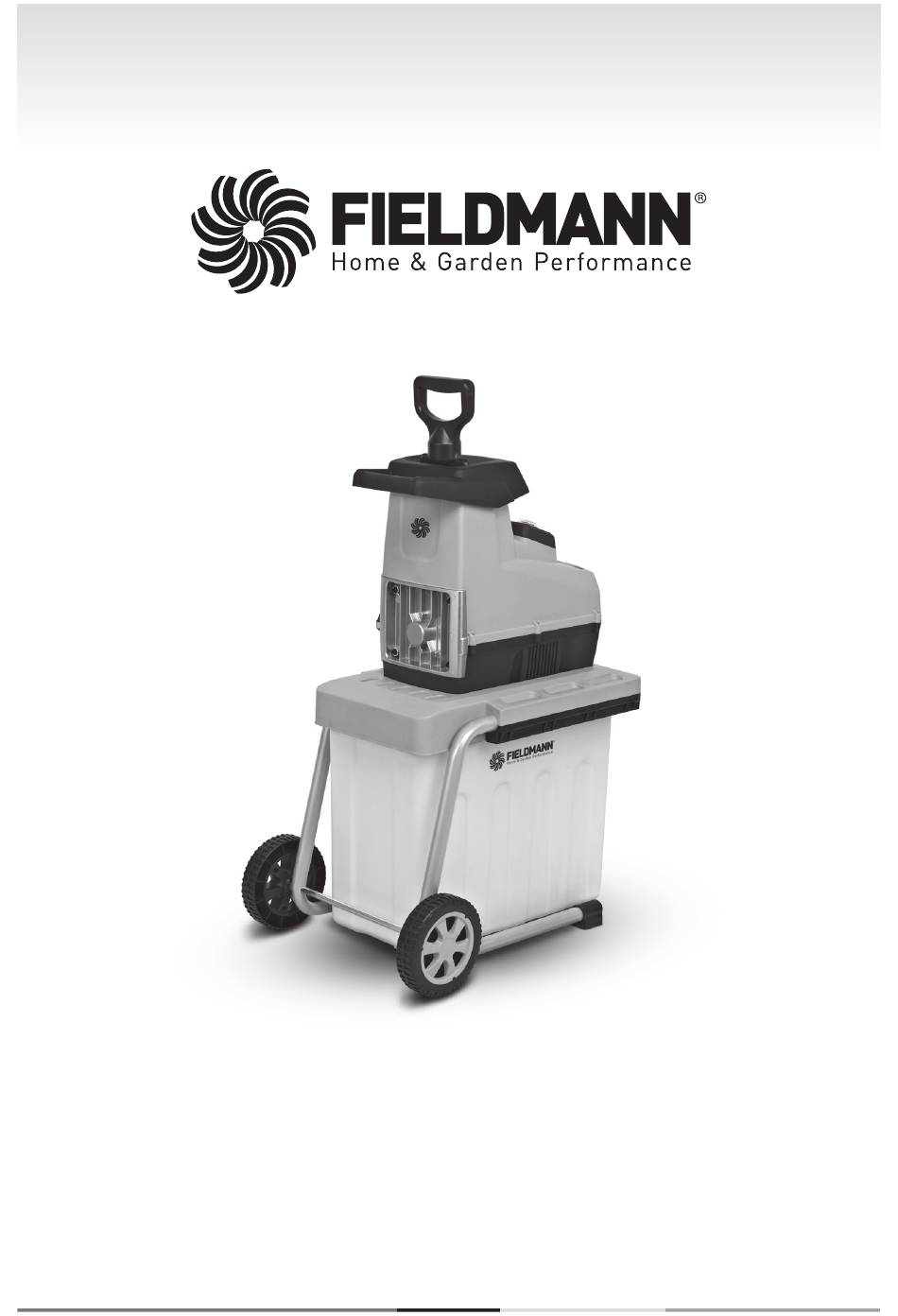

  • Page 1 FZD 5015 E...

  • Page 2: Table Of Contents

    Contents Garden Shredder USER’S MANUAL Dear customer, thank you very much for the trust that you have expressed! Before putting this machine into operation, it is imperative to read this user’s manual! In it, you will fi nd all the instructions for normal operation and for achieving a long lifetime of the machine.

  • Page 3: General Safety Instructions

    The user’s manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZD 5015 E...

  • Page 4: Symbols

    Symbols 2. SYMBOLS Follow the safety instructions prior to putting into operation. Prior to putting into operation, read the user's manual and adhere to it. Danger of amputation. Do not reach into the funnel. Risk from defl ected objects. Maintain a safe distance from bystanders. If the cable is damaged or interrupted, immediately disconnect the plug from the mains.

  • Page 5: Before You Begin

    Do not use a heating element with a timer switch or another type of switch that automatically switches on the machine, this would represent a fi re hazard. Take steps to ensure that children do not play with the product. Always adhere to valid national and international safety, health and work regulations. FZD 5015 E...

  • Page 6: Electrical Safety

    For you safety Electrical safety The machine may only be connected to a power socket with a properly installed protective contact. The machine must be protected by a residual current device (FI switch) with a rated false current not exceeding 30 mA. Prior to connecting the machine it is necessary to ensure that the mains connection corresponds to the values for the connection of the machine.
  • Page 7 Do not use the machine on a tiled or concrete fl oor. The shredded material could defl ect and cause injury. The symbols found on your machine must not be removed or covered over. Notifi cations on the machine that are no longer legible must be replaced with new ones without delay. FZD 5015 E...

  • Page 8: Description Of The Machine

    Description of the machine 5. DESCRIPTION OF THE MACHINE Fig. 1 Description of the machine (see Fig. 1) 1. Filling funnel 2. Control panel 3. Power cord 4. Collection box safety lock 5. Collection box 6. Cutting adjustment screw 7. Plastic pusher GARDEN SHREDDER USER'S MANUAL...

  • Page 9: Assembling The Shredder

    — Repeat this procedure for both wheels. 3. Insert the collection box and lock in place using the safety mechanism. Fig. 6, point 1 ATTENTION! The safety mechanism must be properly locked, otherwise the machine will not start. Fig. 3 Fig. 3. 1 FZD 5015 E...
  • Page 10 Assembling the shredder Fig. 4 Fig. 5 Fig. 6 GARDEN SHREDDER USER'S MANUAL...

  • Page 11: Operating The Shredder

    The roller will stop automatically when the button is released. NOTE: To shred large branches it may be necessary to repeat the forward and reverse procedure several times. Prior to changing the rotation direction again, always wait until the shredder comes to a complete stop. FZD 5015 E...

  • Page 12: Protection Against Overload

    Operating the shredder Protection against overload The shredder is equipped with overload protection (Fig.7, point 4) In the event of an overload, the motor protection will automatically disconnect the electrical circuit. To renew functionality, proceed as follows: 1. Turn off the machine so that it is without voltage. 2.

  • Page 13: Setting Up And Working With The Shredder

    The shredder MUST NOT process the following types of materials: Glass, metals, plastics, rocks, ceramics, branches thicker than specifi ed in the technical specifi cations, hard wood, thick wooden boards, fabrics, plastic bags, roots with soil. Wastes that are almost in liquid form, e.g. kitchen scraps. FZD 5015 E...

  • Page 14: Operation

    Operation | Maintenance 9. OPERATION Place the material into the funnel from the right side. Shred branches immediately after they are cut. When they dry out, they may become very hard. Remove all lateral shoots from the branches if it is not possible to insert them into the shredder. Avoid too much shredded material from accumulating in the collection box.

  • Page 15: Troubleshooting

    25 m. If a longer power cord is and is soon shut off by the motor source or the cross-section of the wires in used then the minimum wire cross-section protection switch. the power cord is too small is 2.5 mm FZD 5015 E...

  • Page 16: Technical Specifications

    Technical Specifications | Disposal 12. TECHNICAL SPECIFICATIONS Rated voltage .................................230–240 V ~ /50 Hz Rated power input ..................................2800 W Protection class ......................................II Protection marking ....................................IP24 Idle speed ......................................60 RPM Maximum branch diameter ................................. 44 mm Collection box capacity..................................60 l Sound pressure level (LPA)* ..............................

  • Page 17: Declaration Of Conformity

    FAST ČR, a. s. Černokostelecká 2111, 100 00 Prague 10, Czech Republic Tax ID number: CZ26726548 Product/brand: ELECTRIC SHREDDER / FIELDMANN Type/model: FZD 5015-E 230–240 V ~ , 50 Hz, 2800 W This product meets the requirement of the directives and regulations below: ES Council Directive No.
  • Page 18 Záruční list Záručný list Warranty Certificate Jótállási jegy Garantijos taisyklės Karta Gwarancyjna Vyplní prodejce. Vyplní predajca. To be filled in by the seller. V případě opravy vyplní servis. V prípade opravy vyplní servis. To be filled in by a repair shop Wypełnia sprzedawca.
  • Page 19 Záruční podmínky Záručné podmienky Prodávající poskytuje kupujícímu na výrobek záru- škození výrobku v  důsledku neodborné či nesprávné Predávajúci poskytuje kupujúcemu na výrobok či nesprávnej inštalácie, použitie výrobku v  rozpore ku v  trvání 24 měsíců od převzetí výrobku kupují- instalace, použití výrobku v rozporu s návodem k ob- 24 mesiacov záruku od jeho prevzatia kupujúcim.
  • Page 20 Garantieschein Hoja de garantía Fiche de garantie Jamstveni list Certificato di garanzia Garantiebewijs Im Falle einer Reparatur vom Service auszufüllen. Para ser llenado por el servicio, en caso de reparación. À remplir par le service de réparation en cas de réparation. U slučaju popravke Vom Verkäufer auszufüllen.
  • Page 21 I Garantiebedingungen Condiciones de garantía Der Verkäufer gewährt dem Kunden eine Garantie auf Produktes Beschädigung des Produktes infolge unsa- El vendedor proporcionará una garantía de 24 meses al rrecta, el uso del producto en contradicción con las in- das Produkt in der Länge von 24 Monaten nach der chgemäßer oder falscher Installation, Benützung des comprador a partir de la recepción del producto por parte strucciones de manejo, las normas jurídicas vigentes y...
  • Page 22 Гарантийный талон Заполняется продавцом. В случае ремонта заполняется сервисной организацией. Название: Дата обращения в сервисный центр: Число: Месяц: Год: Тип: Дата принятия в ремонт: Число: Месяц: Год: Серийный номер изделия Причина неисправности: A termék azonosításra alkalmas részeinek meghatározása (amennyiben alkalmazható): Способ...
  • Page 23 Условия гарантии Продавец предоставляет покупателю гарантию на товар в течение 24 месяцев с момента получения Гарантийные обязательства на товар, главным образом, не распространяются на: товара покупателем. Гарантия предоставляется при соблюдении следующих условий. Гарантия недостатки, на которые была предоставлена скидка износ и повреждения, вызванные обычным распространяется...
