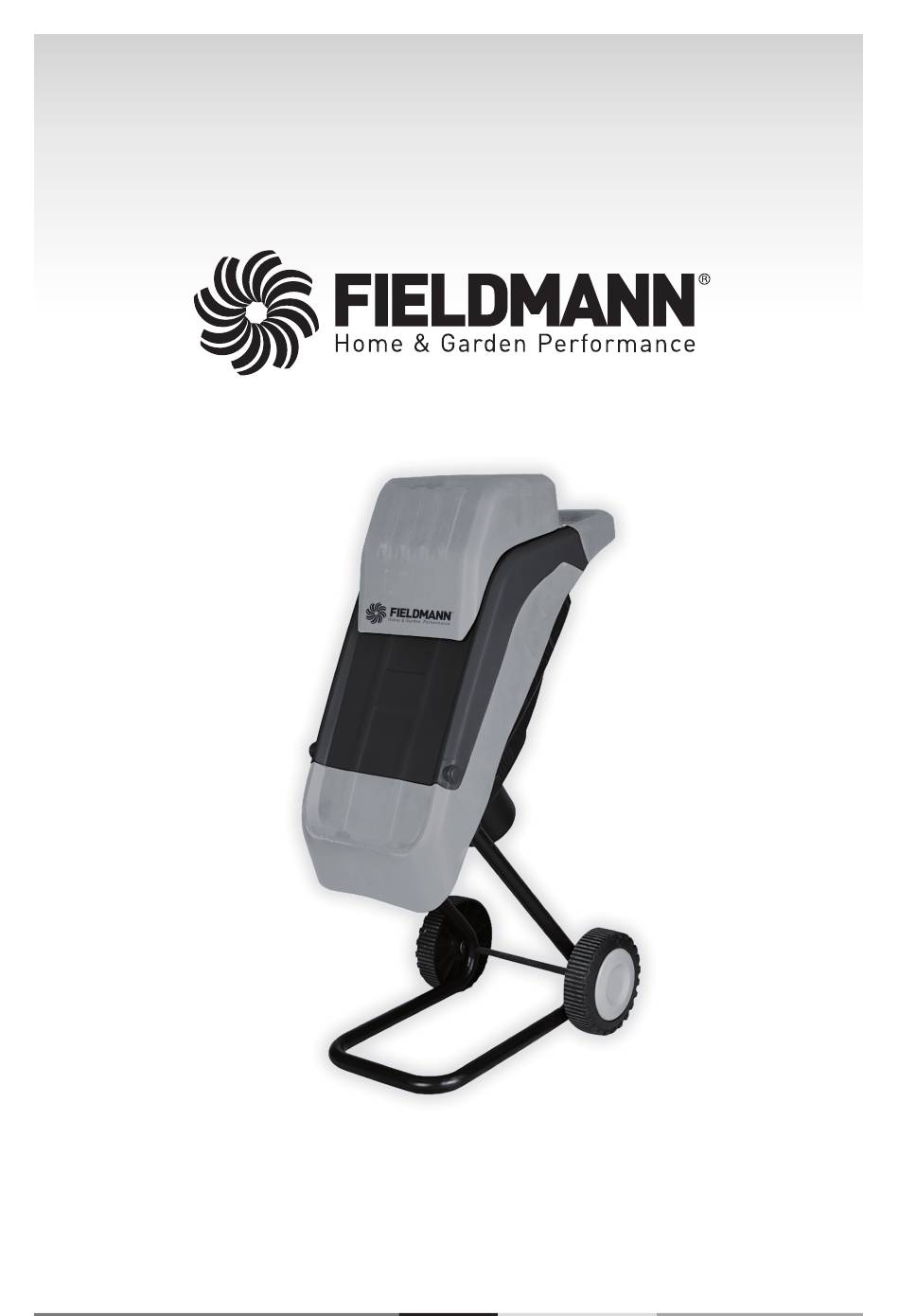

- Page 1 FZD 4005 E...
- Page 2 English ..............................5 - 20 Čeština .............................. 21 - 35 Slovenčina ............................37 - 52 Magyarul ............................53 - 69 Polski ..............................71 - 87 Русский .............................. 89 - 107 FZD 4005 E...
- Page 4 FZD 4005 E...
-
Page 5: Table Of Contents
Table of contents Garden shredder OPERATION MANUAL Thank you for your purchase of our garden shredder. Before beginning to use it, please, read this operation manual carefully and keep it for the case of a further use. TABLE OF CONTENTS APPENDIX OF FIGURES ......................... -
Page 6: General Safety Instructions
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZD 4005 E... -
Page 7: Explanation For Instruction Plates On The Machine
Explanation for instruction plates on the machine 2. EXPLANATION FOR INSTRUCTION PLATES ON THE MACHINE WARNING: Read the instructions carefully and be familiar with control elements and the proper procedure of the machine operation. WARNING: Keep hands, legs, hair and clothes in a safe distance from moving parts of the shredder. -
Page 8: Popis Stroje A Obsah Dodávky
11 - Interlock switch (circuit breaker) Shredder body Discharge chute Note: The above mentioned specification characterizes the machine MAXIMUM CAPACITY. Maximum thickness of a branch workable in this shredder is not specified as it depends on wood hardness. FZD 4005 E... -
Page 9: Safe Operation Principles
Safe operation principles 4. SAFE OPERATION PRINCIPLES Advice Before beginning to work with this equipment, please, read the operation manual carefully. Preparation for operation Do not allow children to operate the equipment. Do not use the machine in the immediate vicinity of bystanders. Do not use the power supply cable if damaged. -
Page 10: Maintenance And Storage
Necessary precondition for ensuring safety while using this electrical equipment is to be familiar with the principles of its safe operation and to follow them. Before beginning to use this product, read this operation manual carefully and keep it for the case of a further use. FZD 4005 E... - Page 11 Safety measures and instructions Before the first use of this product, read the instructions below and check whether: - The power supply cable sheath is safely secured by a terminal. - The extension cable sheath is not damaged. - The cable(s) is/are led so that risk of damage or accidental switch-off is eliminated. - The power supply cable is unreeled from the coil completely so that not to get overheated.
- Page 12 Pay close attention also to the extension cable condition. Maintain the equipment handles dry, clean and without rests of oils and greases. FZD 4005 E...
- Page 13 Safety measures and instructions Be always ready! Before the next use you need to check or repair the safety stop or any other part which is damaged so that their proper function is ensured. Check functionality and adjustment of all moving parts of the machine and their components. If protective guards or any other elements with a similar purpose were damaged, let them replaced in an authorized service station, unless otherwise specified in this manual.
-
Page 14: How To Assemble This Product
Put the axle (8) through openings in the chassis (4) (Fig. 3). Mount the wheels acc. to the drawing in (Fig. 5). a - wheel axle b - wheel c - cotter pin d - wheel cover FZD 4005 E... -
Page 15: How To Use This Product
How to assemble this product? | How to use this product? Tighten the fixing screw of the blade head cover (9) (Fig. 2), equipped with an emergency switch Note: It is very dangerous to operate the shredder without a cover (1) 8. -
Page 16: How To Handle The Product
If the machine does not run, push the “interlock switch” (11) (Fig. 2), whereas make sure that the machine is connected (the power supply cable plug) to the mains. Let the machine engine run idle for several seconds and only then start shredding. FZD 4005 E... -
Page 17: The Use Of The Plunger
How to handle the product? The interlock switch gets activated under the following circumstances: - build-up of shredded material around the shredder roller. - the engine capacity overload. - processed material resists the shredder roller blades. If the interlock switch was activated, switch-off the shredder and disconnect from the mains. - Unscrew the control of the reamer at the bottom of the head and open the upper part. -
Page 18: What To Do When Replacing Knives
Always clean the machine after each use. Use soap and a wet rag for cleaning the plastic parts. Do not use aggressive substances and solvents. Never clean the shredder by water stream. Keep the equipment protected against water. Use the shredder only with recommended accessories. FZD 4005 E... -
Page 19: Troubleshooting Guide
The User’s Manual is in a specific language version. falls in quality blades 11. TECHNICAL DATA 10. TECHNICAL DATA FZD 4005 E Model number ............................Rated voltage (V) ........................... 230~ 50Hz 2500 Nominal input (W) .............................. Idle run speed (min-1) ............................4500 Max. -
Page 20: Disposal
This product fulfils all basic requirements of the EU directives that apply to it. Text, design and technical specifications can change without prior notice and we reserve the right for their change. FZD 4005 E... -
Page 21: Declaration Of Conformity
Černokostelecká 2111, 100 00 Praha 10, Czech Republic VAT no: CZ26726548 Product / brand: ELECTRICAL SHREDDER / FIELDMANN Type / model: FZD 4005 E as factory model BSLD01D 230-240V ~ , 50Hz, 2500W The product is inline with directives and regulations listed below:...
