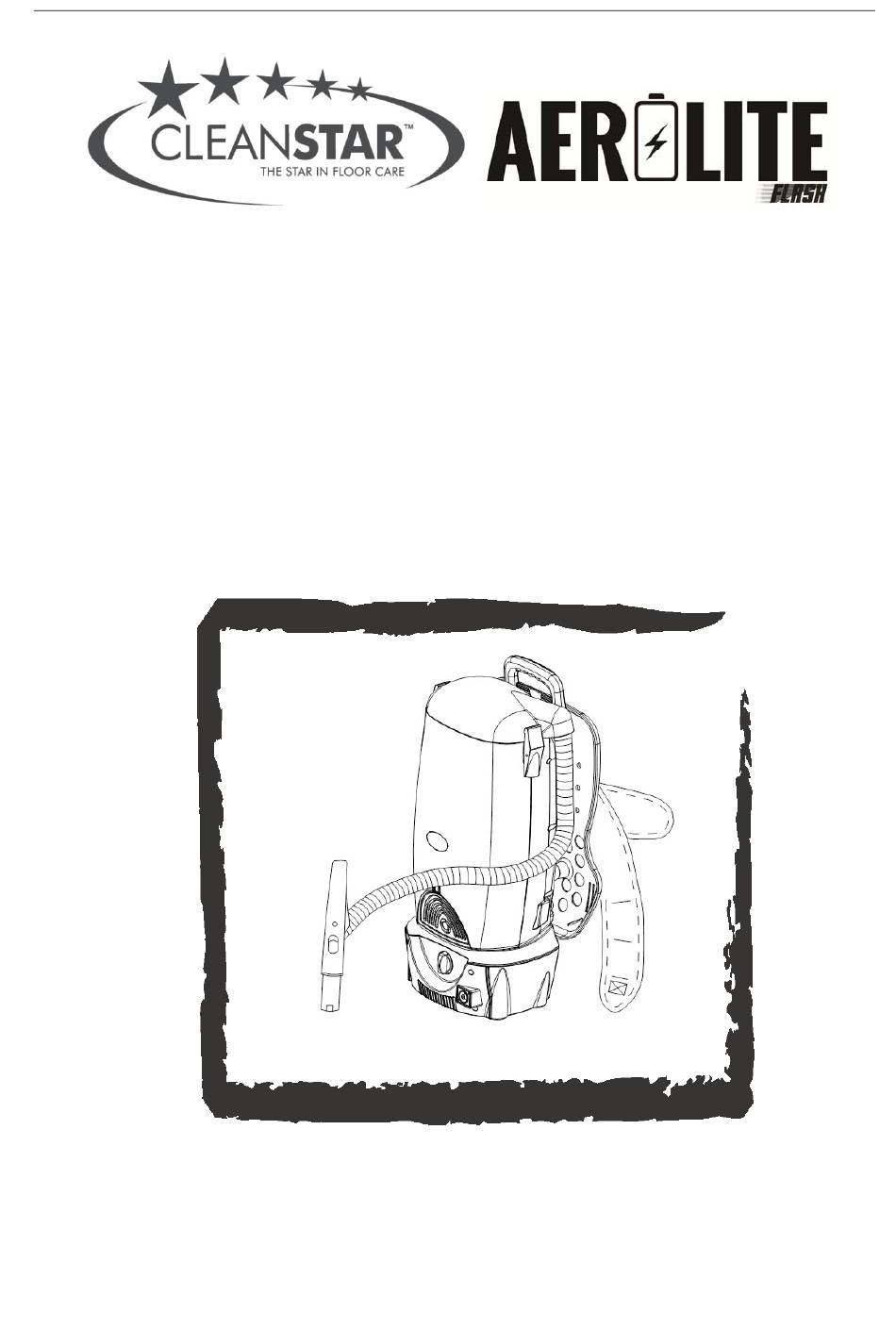

CLEANSTAR AEROLITE FLASH BATTERY POWERED BACKPACK VACUUM Instruction Manual Read all instructions before using this appliance Part no# VBP-BATT30...
IMPORTANT SAFETY INSTRUCTIONS When using your Vacuum, basic safety precautions should always be observed, Including the following: Vacuum Safety Read Owner’s Manual before using this product. Failure to do so can result in serious injury or death. To reduce the risk of fire, electric shock, or injury. 1.
Page 3
GETTING TO KNOW YOUR BATTERY POWER BACK PACK VACUUM...
Page 4
1. Main Unit 14. Dusting Brush 2. Exhaust Grill Port 15. Crevice Tool 3. On/Off Power Switch 16. Upholstery Tool 4. Canister Lid Tabs 17. Exhaust Grill 5. Waist Band 18. Blower Port 6. Shoulder Straps 19. Wessel-Werk Low Profile Tool 7.
ASSEMBLING YOUR VACUUM INSERT THE HEPA DUST BAG Note: This unit can be used with the cloth bag alone, however it must be cleaned after every use if there is No Disposable dust bag installed. Important: Do not use the vacuum without all filters, cloth bag, and with or without Disposable dust bag in place.
Page 7
Cloth Bag Attaching the flexible hose to the vacuum The flexible hose should be connected to the Vacuum before strapping the unit on. 1. To connect the flexible hose into the hose inlet, insert the threaded end of the flexible hose into the hose inlet and turn counter-clockwise until it locks into place.
USING THE ATTACHMENTS Dusting Brush The dusting brush is used for the furniture. (Fig 9) Crevice Tool Use for radiators, crevices, corners, baseboards and between cushions. (Fig10) Upholstery Tool The unique surface makes it an excellent tool for removing unwanted pet hair. (Fig11) Note: This tool is not a grooming tool and should not be used on animals.
Page 9
Using the Blower Attachments The blower attachments are extremely useful for vacuuming in hard to reach crevices and small compartments such as in cars. Important Note: When blocking the air holes, grasp the blower attachment firmly so that they do not blow off. Note: Do not use blower function to clear dust Off of fragile or delicate objects unless they are secured or held firmly in place as the blower action is quite strong and cause damage.
Page 10
Using Your Vacuum 1. Ensure the battery pack is correctly assembled in the vacuum 2. Connect hose and telescopic tube if desired. 3. Correctly place shoulder straps on each shoulder and secure the waist band with hook and loop strips. (Fig.16) Caution: If the waist band and both Shoulder straps are not properly and securely in place the unit could fall off your back causing damage or injury.
Page 11
7. Flip the disposable bag holder and press tab until it clicks. 8. Replace the canister lid onto the vacuum. Warning: Never over fill the disposable dust bag – replace when bag is full and clean the cloth bag and filters each time the disposable dust bag is replaced. Cleaning &...
For detailed usage and warning information, read the HOW TO CHARGE THE BATTERY PACK carefully before using this unit. 2. Use only the Cleanstar Charger and Cleanstar Battery Pack supplied with the Cleanstar Aerolite Flash. 3. DO NOT expose battery pack to temperatures above 50°C. Never leave battery packs in automobiles on hot days, where temperatures can be much higher than the outside temperature.
Page 13
Cutting of the ground wire or using a cord that is not equipped with a ground wire will void the warranty on the unit, and Cleanstar will accept NO liability associated with the unit.
Keep them clear to allow proper ventilation. CHARGING LITHIUM POLYMER BATTERY PACKS Lithium Polymer batteries deliver fade-free power for their entire run time. The Cleanstar vacuum will not gradually lose power due to decreasing battery charge. The vacuum will...
Page 15
happens, recharging of the battery is required. It is not necessary to drain the battery pack completely before recharging. If the charger’s light is not lit at any point during the charging process, remove the battery pack from the charger to avoid damaging the product. DO NOT insert another battery. Contact your place of purchase with any issues.
If the product was serviced or repaired by anyone other than Cleanstar, or one of Cleanstar’s Authorised Service Agents (ASA). Cleanstar is unable to accept any responsibility under this warranty for any repair work not carried out by an ASA or from the use of non-genuine parts.
