CleanStar AEROLITE ECO Instruction Manual

800 watt eco-friendly backpack vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

AEROLITE ECO
800 WATT ECO-FRIENDLY
BACKPACK VACUUM
Please read this Instruction Manual carefully before operation and follow
all guidelines before using this vacuum cleaner.
Please keep this Manual for future reference.
Instruction Manual
Model
Rated Voltage (V)
Rated Frequency (Hz)
Rated Power (W)
VBP-ECO
220-240 V
50 Hz
800 Watts
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEROLITE ECO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CleanStar AEROLITE ECO

Summary of Contents for CleanStar AEROLITE ECO

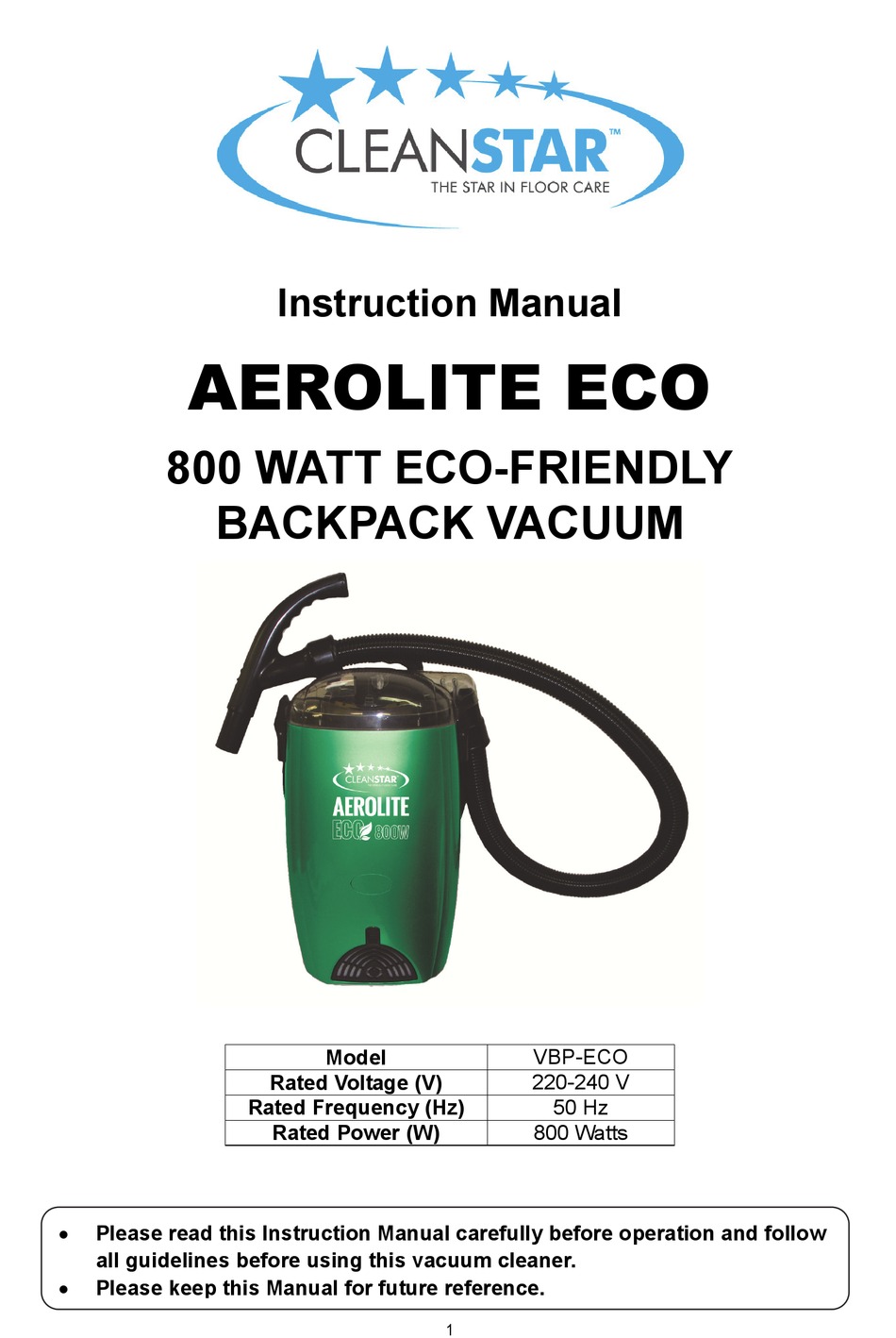

  • Page 1 Instruction Manual AEROLITE ECO 800 WATT ECO-FRIENDLY BACKPACK VACUUM Model VBP-ECO Rated Voltage (V) 220-240 V Rated Frequency (Hz) 50 Hz Rated Power (W) 800 Watts  Please read this Instruction Manual carefully before operation and follow all guidelines before using this vacuum cleaner.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS ........................3 MAIN PARTS ............................4 ACCESSORIES ............................5 OPERATING INSTRUCTIONS ........................ 5 Attaching the Shoulder Straps ......................5 Attaching the Waist Strap ........................6 On/Off Power Switch ..........................7 Using the Cable Restraint ........................7 Opening the Lid ............................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE *** WARNING - To reduce the risk of fire, electric shock, or injury: Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before servicing. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.

  • Page 4: Main Parts

    MAIN PARTS Shoulder Strap Exhaust Filter Latch Back plate Exhaust Filter Cover Carry Handle On/Off Switch Low Profile Floor Tool Cable Restraint Power Cord...

  • Page 5: Accessories

    ACCESSORIES 1. Vacuum Hose 6. Telescopic Rod 2. Upholstery Tool 7. Cloth Filter Bag 3. Crevice Tool 8. Paper Dust Bag 4. Dusting Brush 9. Blower Attachment Cover Plate 5. Low Profile Floor Tool 10. Blower Attachments OPERATING INSTRUCTIONS Attaching the Shoulder Straps Pass the straps through the two rectangular holes of the CARRY HANDLE then feed the strap through and attach to the buckle of the shoulder strap.

  • Page 6: Attaching The Waist Strap

    Attaching the Waist Strap Feed the NO.1 strap through the NO.2 angled slot. Then, secure this strap to the lower shoulder strap buckle. Feed and loop the NO.2 strap through the NO.1 vertical rectangular slots, and secure the strap to the buckle that is attached to the waist harness.

  • Page 7: On/Off Power Switch

    On/Off Power Switch Switch – located on side of body. Press the On/Off power switch; the machine will turn on. Switch Using the Cable Restraint The cable restraint is located on the side of the machine. This device is used to ensure that the power cord is securely fastened and cannot be pulled out of the machine while in use.

  • Page 8: Replacing The Lid

    Replacing the Lid Make sure the lid is sitting properly over the rim. Simply place the latches over the locking points located on the lid and click the latches down into position. Attaching and Removing the Hose from the Lid To attach the hose assembly to the vacuum cleaner, insert the hose end into the receiving chamber on the lid and rotate as shown below.

  • Page 9: Cleaning The Reusable Cloth Filter Bag

    enters into the Lid. Pull gently on the top side of the frame (on the opposite side of the frame hinges), and the frame will swing open with the bag in it. Then remove the bag from the frame as shown below. Once the replacement paper bag is correctly inserted back into the frame, close the plastic frame as indicated in the illustrations below.

  • Page 10: Blower Function And Accessory Kit

    Blower Function and Accessory Kit This vacuum cleaner also comes with a bonus accessory tools kit which are used when using the “blower” function. These accessories can be used to blow up airbeds, mattresses, etc. How to use the Blower Feature Simply remove the Exhaust Filter Cover and Exhaust Filter (just as you did to clean/replace the exhaust filter).

  • Page 11: Conditions Of Warranty

    Thank you for purchasing your new Cleanstar product. We are confident this product will give you trouble-free use and excellent service, provided the operator uses and maintains the product in accordance with the Instruction Manual. Please read the Instruction Manual carefully before using the product for correct operation and maintenance procedures, and store it in a safe place for future reference.
  • Page 12 If the product was serviced or repaired by anyone other than Cleanstar, or one of Cleanstar’s Authorised Service Agents (ASA). Cleanstar is unable to accept any responsibility under this warranty for any repair work not carried out by an ASA or from the use of non-genuine parts.
