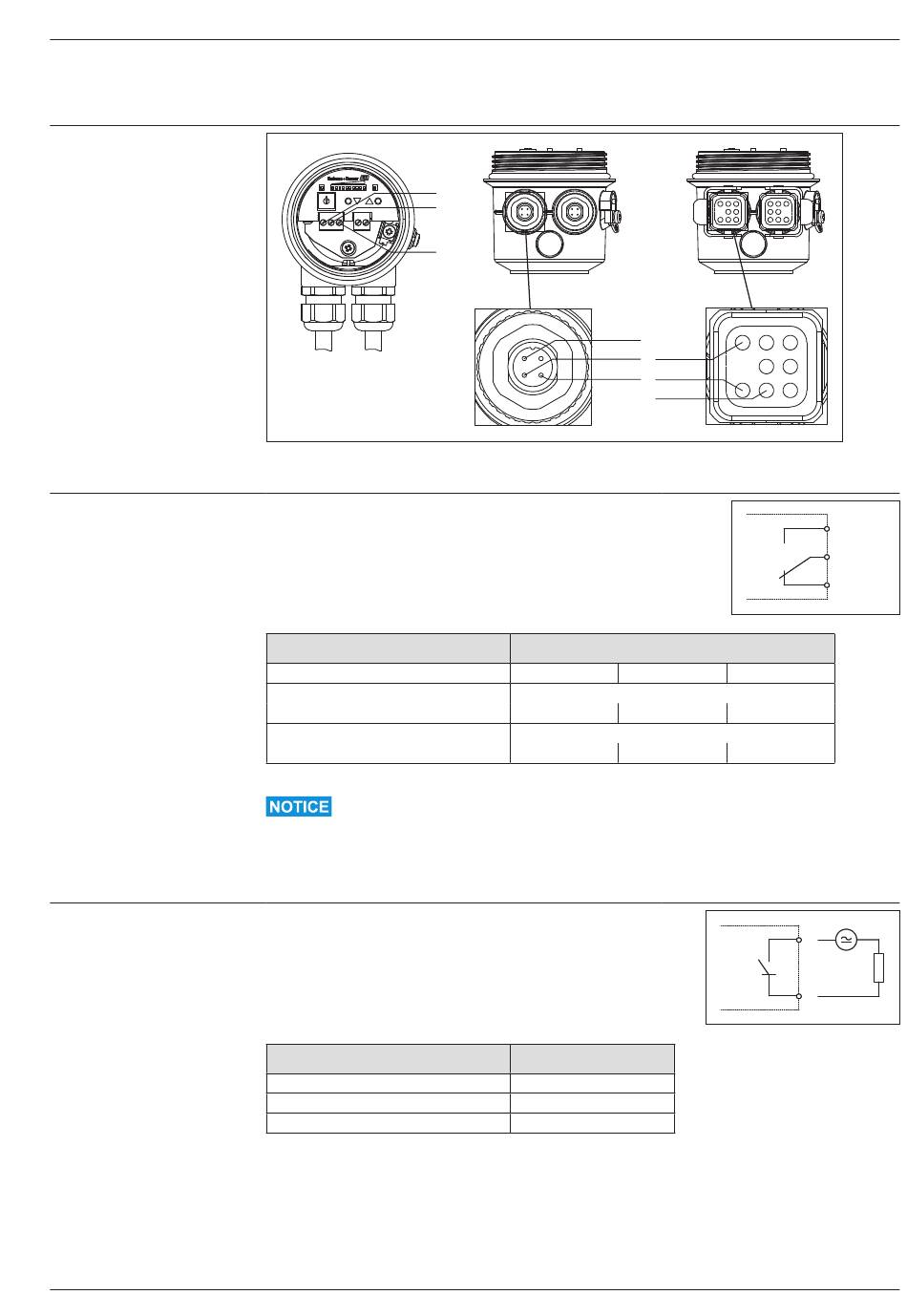

5 Terminal and connector assignment of the output
• Potential-free change-over contact
• Switching capacity:
 250 V / 4 A (Harting connector type HAN8D max. 50 V)
 125 V / 0.4 A or 30 V / 4 A
• Contact material: AgCdO (gold-flashed)
• Switching frequency: max� 2 Hz
Electrical connection
Connection terminals
M12 connector (Binder series 713/763)
Harting connector type HAN8D
• The contact material is also suitable for switching small signal circuits� However, this is possible
only if no inductive loads or higher currents have been switched previously�
• The solid-state relay can be used to evaluate higher switching frequencies�
• Switching contact of a semiconductor relay
• Switching capacity:
 30 V / 0.4 A
 40 V / 0.4 A
• Switching frequency: max� 2 Hz
Electrical connection
Connection terminals
M12 connector (Binder series 713/763)
Harting connector type HAN8D
3
4
5
A ( 1 : 1 )
Relay
Terminal 3 (NO)
Terminal 2 (NO)
Terminal 3 (NO)
Solid-state relay
Terminal 3 − 4
Connector 2, contact 3 − 4
Connector 2, contact 3 − 4
2
3
4
5
B ( 1 : 1 )
Terminal 4 (CC) Terminal 5 (NC)
Connector 2
Terminal 3 (CC) Terminal 4 (NC)
Connector 2
Terminal 4 (CC) Terminal 5 (NC)
3 (NO)
4 (CC)
5 (NC)
3
4
7
