Summary of Contents for Endress+Hauser ControlCare SPC150

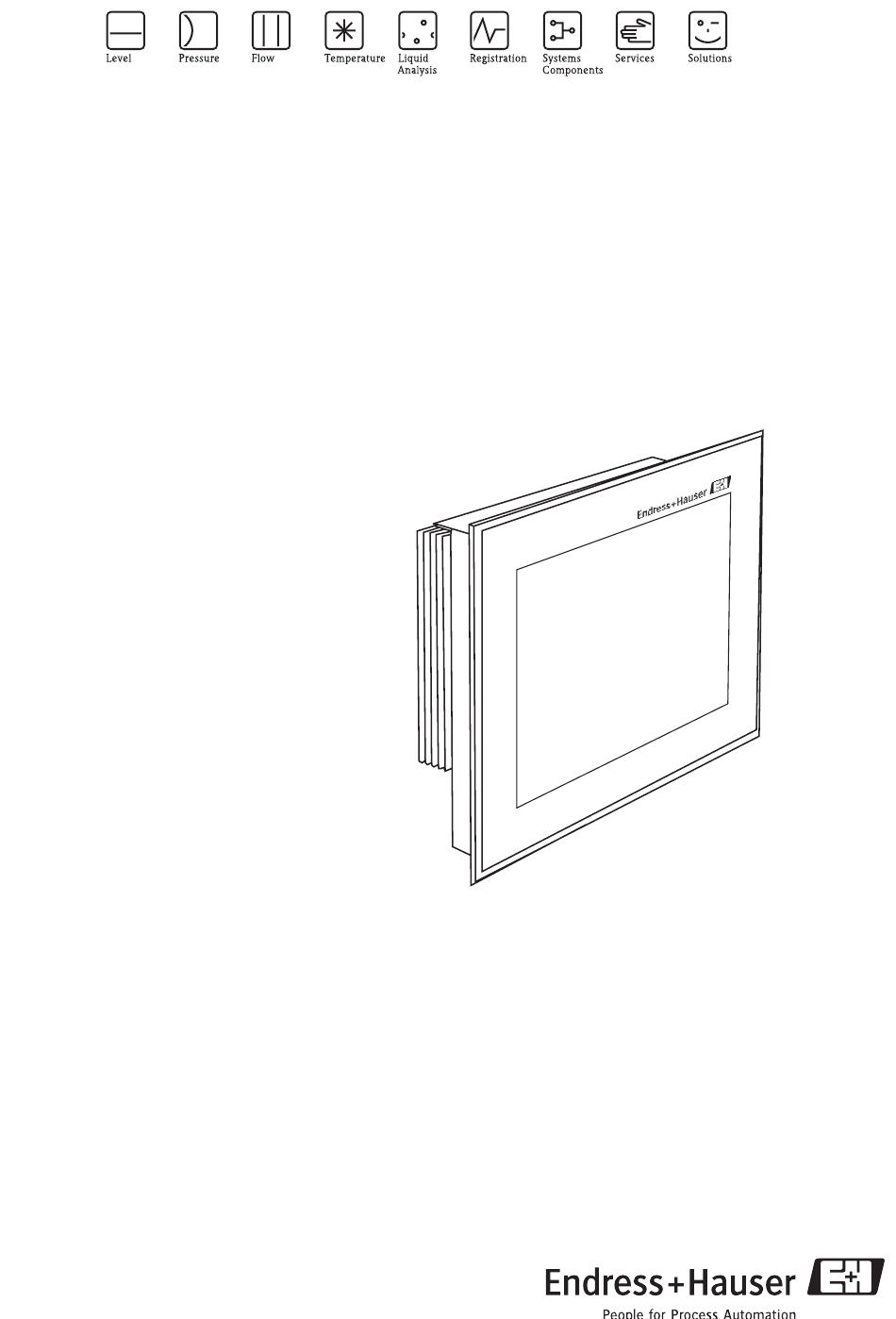

- Page 1 Operating Instructions ControlCare SPC150 12" Panel PC as P View Web-client C 1 5 e S P C a r t r o l C o n BA045S/04/en/03.06 Version 1.00.xx 70103679...
-
Page 3: Table Of Contents
5.4.4 VGA port ......15 5.4.5 PS/2 keyboard port ....15 Endress+Hauser... -
Page 4: Revision History
Microsoft logo are registered trademarks of the Microsoft Corporation. ® Acrobat Reader is a registered trade mark of the Adobe Systems Incorporated. All other brand and product names are trademarks or registered trademarks of the companies and organisations in question Endress+Hauser... -
Page 5: Safety
Endress+Hauser Process Solutions AG. Technical improvement Endress+Hauser reserves the right to make technical improvements to its software and equipment at any time and without prior notification. Where such improvements have no effect on the operation of the equipment, they are not documentated. If the improvements effect operation, a new version of the operating instructions is normally issued. -
Page 6: Conventions And Icons
A terminal which must be connected to earth ground prior to making any other connection to the equipment Equipotential connection (earth bonding) A connection made to the plant grounding system which may be of type e.g. neutral star or equipotential line according to national or company practice Endress+Hauser... -
Page 7: Identification
• Store the accompanying documents in a safe place If you find that the Panel PC has been damaged in any way, do not put it into operation. In this case, contact your Endress+Hauser Sales Center. Return the device, where possible in the original packing, to us. -
Page 8: Device Name
SPC150 ControlCare Panel PC as P View Web-Client Monitor 12 12" Memory extension 256 MB 512 MB Compact Flash 512 MB 1024 MB Keyboard No keyboard Compact keyboard with trackball Keyboard with optical mouse Hardware extension A None Options 1 None SPC150 Endress+Hauser... -
Page 9: Function And System Design
Function and System Design Function ControlCare SPC150 is an industrial PC with preinstalled operating system, Internet Explorer and P View Web-client. It is supplied as part of a packaged solution that also includes a P View SCADA application installed on a second computer. -
Page 10: Mechanical Installation
• If the Panel PC is not mounted vertically, care must be taken that air can circulate properly via the ventilation slits. Cooling fins to dissipate the heat generated by the CPU to the surrounding air Ventilator kit (Option) The rear wall is prepared for the mounting of a ventilator Fig. 4-1: Ventilation Endress+Hauser... -
Page 11: Cut-Out
• Insert the ControlCare Panel PC SPC150 into the cut-out and hold in position. • Seat the screw clamps in the openings provided for them. • Fasten the Panel PC in the cut-out by tightening the screws. Seal Cellular rubber gasket Fastening screw clamp Screw clamp Fig. 4-3: Fastening and sealing Endress+Hauser... -
Page 12: Electrical Installation
• Use an earth connection conductor of minimum 2.5 mm² (0.1 in ) diameter. Special precautions for 24 VDC devices: • The panel PC may be connected to a safety extra low voltage (SELV) circuit only. • The circuit transformer must fulfil the pertinent standards. Endress+Hauser... -
Page 13: Power Supply
• Connect the other end of the cable to a 24 VDC power supply that fulfils the requirements of a safely extra low voltage (SELV) circuit to EN 60950. 5.2.3 Option: ventilator kit If a ventilator is used, a separate 24 VDC power supply is required. Endress+Hauser... -
Page 14: Peripherals
Various mouse types can be connected to the ControlCare Panel PC SPC150: • Serial mouse connected to the COM1 interface: the corresponding mouse driver must be installed and configured. • USB mouse connected to the USB port: for first-time use it is usually necessary to install a USB mouse driver. Endress+Hauser... -
Page 15: Monitor
SDRAM is provided for this purpose. • An unstable power supply may lead to uncontrolled writing to the storage medium and files can be overwritten and lost. In order to prevent data loss, a variable voltage an uninetrruptable power supply should be used. Endress+Hauser... -
Page 16: External Interfaces
ControlCare Panel PC SPC150 has two Type A 4-pin USB receptacles (double-decker) labelled "USB A" and "USB B", USB Type A USB A USB B Description 4-pin Power (+5V / 0,5A) USB0- USB1- Data USB0+ USB1+ Data Ground Tab. 5-3: USB [double] Endress+Hauser... -
Page 17: Vga Port
ControlCare Panel PC SPC150 has a 6-pin MiniDIN port labelled "PS/2 keyb" for the connection of an external PS/2 keyboard. MiniDIN female Signal Description Input/ connector, 6-pin Output KBDAT Keyboard Data N.C. Not connected Ground VCC-PS/2 (+5V) Power KBCLK Keyboard Clock N.C. Not connected Tab. 5-5: PS/2- keyboard Endress+Hauser... -
Page 18: Commissioning And Operation
The function and operation of the HMI pages is described in an application-specific operating manual that is supplied with the associated P View SCADA application. " Caution • Do not use metallic or pointed objects to operate the touchscreen - they will damage it. Endress+Hauser... -
Page 19: Maintenance
Caution • The housing need only be opened to exchange the back-up battery. If the display backlight needs to be replaced, send the unit back to Endress+Hauser. • Electronic components are extremely sensitive to electrostatic discharge. For this reason they must be handled with great care. -
Page 20: Opening The Housing
Slide the hood to the left (as seen from above) in its guide slots... until the fixing lugs are free. Pull off the hood. Fig. 7-2: Opening the housing After the hood has been removed, the basic board with its various (covered) elements are visible. Endress+Hauser... -
Page 21: Back-Up Battery
• The replacement battery must be of identical type or of a type recommended by the manufacturer. • The lithium battery may not be trown away as domestic refuse. It can be sent back to the manufacturer, the dealer or their agents, so that it can be recycled or properly disposed of. Endress+Hauser... -
Page 22: Display Backlights
We recommend that the backlights are replaced after this time has elapsed. Property Operating conditions Life time of display backlights (MTBF) min. 50.000 h When it becomes necessary to exchange the backlights, please contact your Endress+Hauser Service department for more information. Endress+Hauser... -
Page 23: Technical Data
1x CF socket for flash card Attribute 12" ControlCare Panel PC SPC150 Software Operating system Windows XP Embedded ControlCare P View Web-Client Attribute 12" ControlCare Panel PC SPC150 Power supply Power supply 18...36 VDC (SELV) Power consumption Max. 70 W Endress+Hauser... -
Page 24: Operating Conditions
Designed for mounting in panel, cabinet or industrial monitor enclosure Front panel Aluminium baseplate with laminated plastic foil Housing 1 mm galvanized steel plate Cooling No cooler Weight 4.0 kg Overall dimensions 288mm x 220mm x 85.4mm (11.8" x 8.3" x 3.3"), for details see Page 5 Endress+Hauser... -
Page 25: Certificates And Approvals
Abmessungen in mm (in) 275 (10.8) 261.5 (10.3) 196 (7.7) 78.5 (3.1) 249 x 187 (9.8 x 7.4) 13.5 (0.5) 0 (0.0) 335 (13.2) Certificates and approvals Attribute 12" ControlCare Panel PC SPC150 Approvals CE Certificate EMC conformity UL Certificate in preparation Endress+Hauser... -
Page 26: Index
Start-up ........16 System design ........7 Endress+Hauser... - Page 28 www.endress.com/worldwide...
