Sight glass fitting
For mounting with microwave-impermeable process walls and unpressurized process, the following
sight glass fittings can be used for welding on or in:
• Order No�:
71026443, DN50
71026444, DN80
71026445, DN100
• Material: 316Ti stainless steel, silicon seal (max� +200 °C/+392 °F)
• Weight: DN50 approx. 2.4 kg (5.29 lbs) to DN100 approx. 4.1 kg (9.04 lbs)
• The delivery includes the inspection glass fitting, incl. seals and mounting screws.

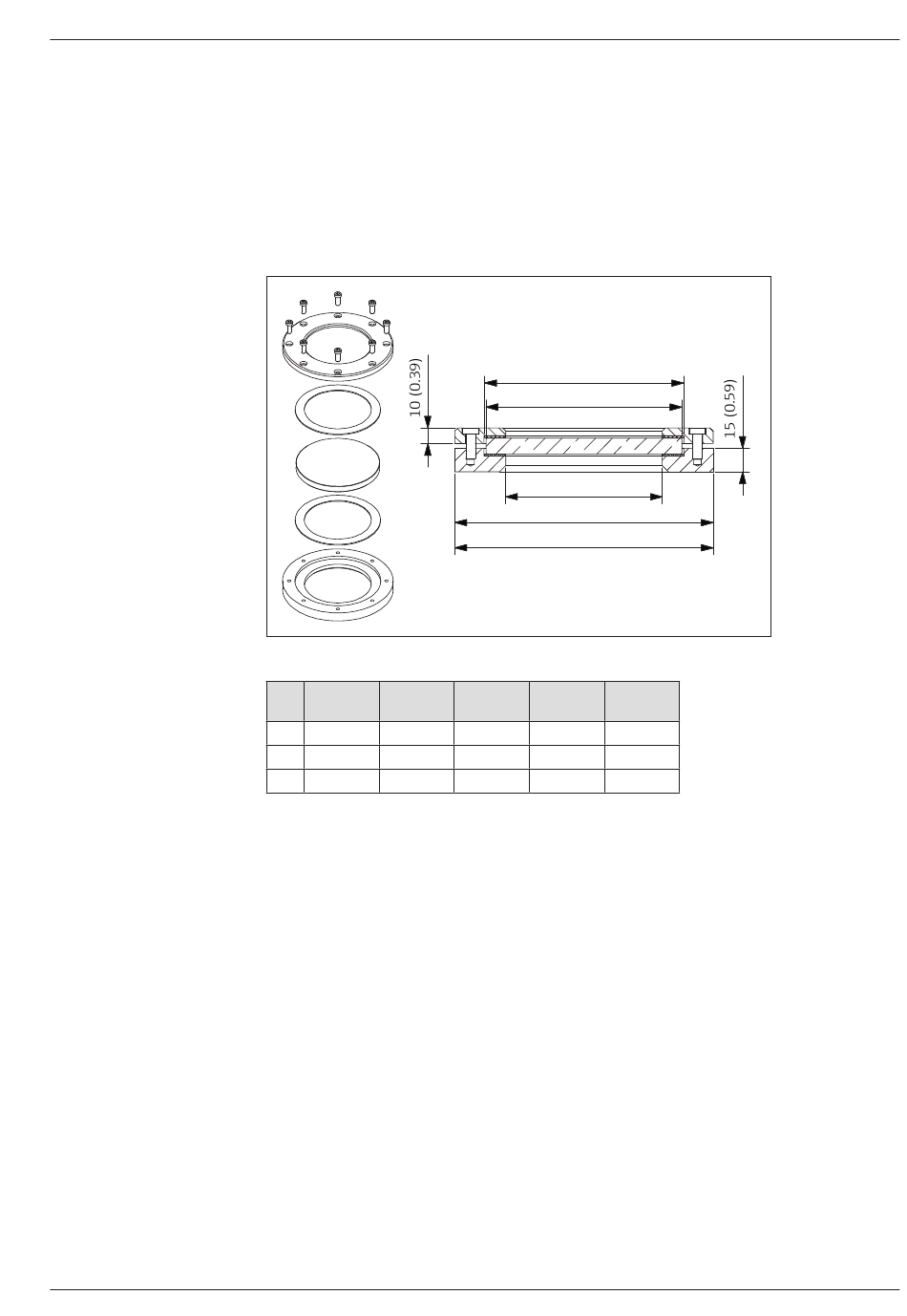

31 Dimensions of sight glass fitting for welding on/in for unpressurized processes
DN d1 d2
mm (in) mm (in)
50 80 (3�15) 100 (3�94) 102 (4�02) 140 (5�51) 120 (4�72)
80 100 (3�94) 125 (4�92) 127 (5�00) 165 (6�50) 145 (5�71)
100 125 (4�92) 150 (5�91) 152 (5�98) 190 (7�48) 170 (6�69)
For mounting with microwave-impermeable process walls and process up to max� 1 MPa (10 bar),
the following sight glass fittings can be used for welding on or in:
• Order No�:
71026446, DN50
71026447, DN80
71026448, DN100
• Material: 316Ti stainless steel, silicon seal (max� +200 °C/+392 °F)
• Weight: DN50 approx. 6.7 kg (14.77 lbs) to DN100 approx. 13.0 kg (28.66 lbs)
• The delivery includes the inspection glass fitting, incl. seals and mounting screws.
d3
d2
d1
k
D
d3 D k
mm (in) mm (in) mm (in)
A-A ( 1 : 3 )
mm / (in)
