TI00447F/97/EN/13.17
71387792

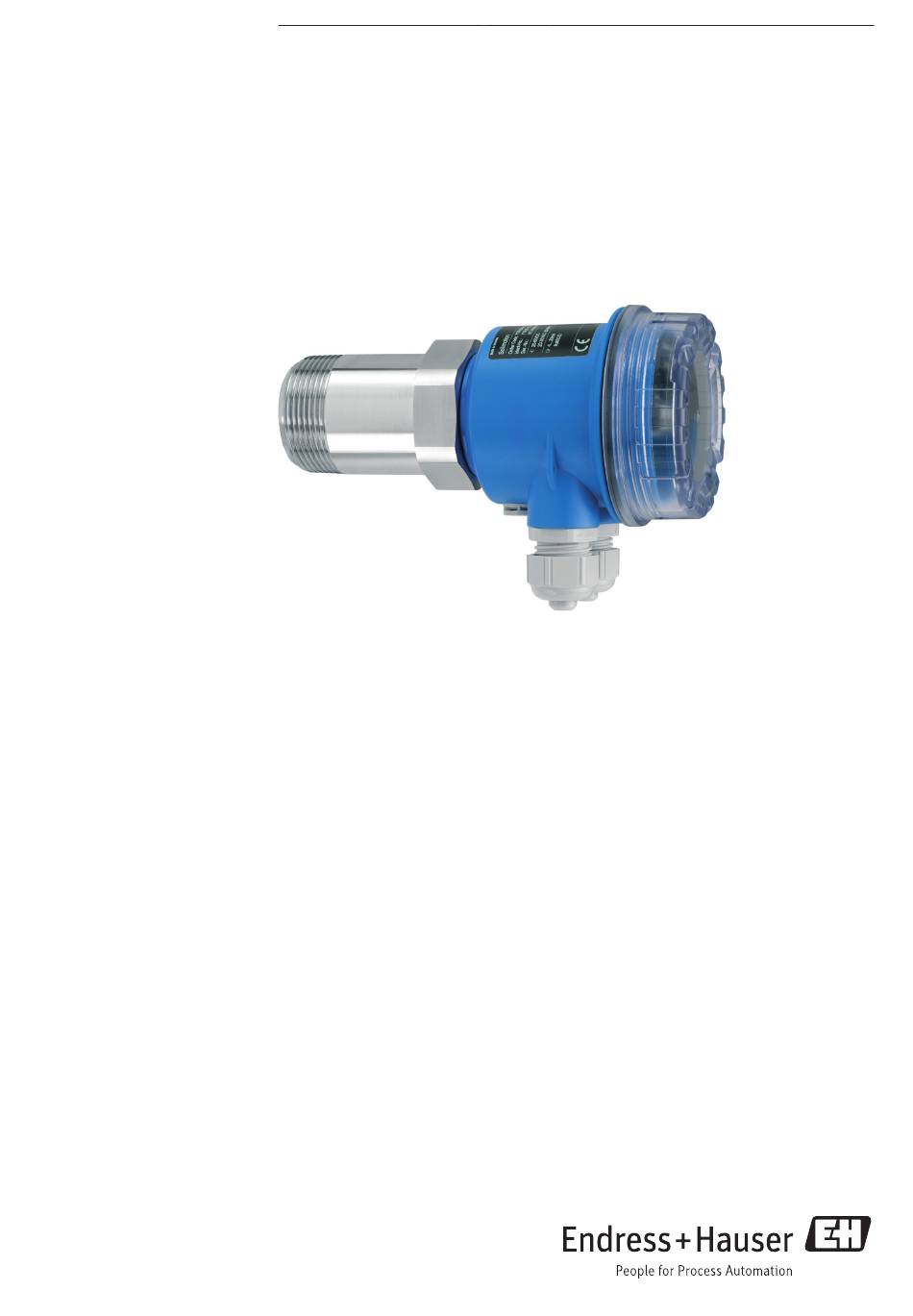

Compact measuring device for non-contact flow detection for bulk solids
Application
The FTR20 flow indicator for bulk solids is a non-contact
device based on microwave technology. It is ideally suited for
monitoring pneumatic and mechanical transport processes for
bulk solids. The compact device can be used wherever the cost-
effective monitoring of bulk solids movement is required.
Typical areas of application or bulk solids are:
• Building materials industry: Cement, plaster, wood chips etc.
• Chemical industry: Fertilizers, plastic powder, granules etc.
• Food industry: Coffee, tea, tobacco, cereals, malt etc.
• Energy production: Coal, carbon dust, fly-ash, coke etc.
Individual adjustments to the application are carried out
by means of configurable functions (including automatic
calibration). In addition, changes in the mass flow can be
analyzed by the optional 4 - 20 mA current output.
Device properties
• Detection range up to 20 m depending on the bulk solids
• Process temperatures up to +70 °C (+158 °F) or +450 °C
(+842 °F) with optional high temperature adapter
• Process pressure up to 680 kPa (6.8 bar) absolute or 2 MPa
(20 bar) absolute with optional high pressure adapter
• For use in hazardous areas (dust)
Products
Technical Information
Solimotion FTR20
Flow indicator for bulk solids
Solutions
Your benefits
• Compact device:
Sensor, transmitter and power unit are mounted in a
housing, which means less effort is required for installation
and mounting.
• The device can be used wherever cost-effective monitoring
of a mass flow (present or not present) is required.
• Flush-mounted installation, non-contact installation
possible
• Easy mounting using R 1½, 1½ NPT or G 1½ thread or a
suitable mounting bracket
• Electronics housing can be rotated by 360 °, allowing
orientation into optimum position after installation
• Easy electrical connection using the connectors (optional
with suitable mating connectors or prefabricated connection
cables)
• Mechanical robustness
- No wear
- Process-wetted ceramic sensor diaphragm (optional)
- Long service life
- Maintenance-free
• Signaling of mass flow
• Adjustable sensitivity
• Compliant with ATEX, CSA and IECEx
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Solimotion FTR20
Summary of Contents for Endress+Hauser Solimotion FTR20
- Page 1 Products Solutions Services TI00447F/97/EN/13.17 71387792 Technical Information Solimotion FTR20 Flow indicator for bulk solids Compact measuring device for non-contact flow detection for bulk solids Application Your benefits The FTR20 flow indicator for bulk solids is a non-contact • Compact device: device based on microwave technology.
-
Page 2: Table Of Contents
Solimotion FTR20 Table of contents Document information ���������������������������������� 3 Environment ������������������������������������������������ 21 Display conventions ������������������������������������������������������������ 3 Operating temperature range ������������������������������������������ 21 Storage temperature ��������������������������������������������������������� 21 Function and system design ������������������������� 4 Degree of protection ���������������������������������������������������������� 21 Measuring principle ������������������������������������������������������������ 4 Vibration resistance ����������������������������������������������������������... -
Page 3: Document Information ���������������������������������� 3 Environment
Solimotion FTR20 Document information Display conventions Safety symbols Symbol Meaning NOTICE! This symbol contains information on procedures and other facts which do not result in personal injury� Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current... -
Page 4: Function And System Design
Solimotion FTR20 Function and system design Measuring principle The FTR20 flow indicator for bulk solids works using microwave technology. A signal is transmitted, and this signal is reflected by the moving bulk solids. The FTR20 measures the strength of the reflected, frequency-shifted (Doppler effect) energy, this is analyzed and put out via the display or the signal output�... -
Page 5: Safety
Solimotion FTR20 Example of a conveyor belt The FTR20 monitors the continuous mass flow at a transition point, a break in the flow is detected and put out at the signal output� 3 Example transition point monitoring The FTR20 monitors if there is material on the conveyor belt�... -
Page 6: Input
Solimotion FTR20 Input Measured variable Doppler frequency Measuring range With an unobstructed radiation path to the surface of the bulk solids, the maximum range is 20 m (detection range) depending on bulk solids (reflection characteristics). This is reduced if container walls, sight glasses or similar need to be penetrated�... -
Page 7: Output
Solimotion FTR20 Output Terminal and onnector assignment 5 Terminal and connector assignment of the output Relay • Potential-free change-over contact B ( 1 : 1 ) • Switching capacity: A ( 1 : 1 ) 3 (NO) 250 V / 4 A (Harting connector type HAN8D max. 50 V) 4 (CC) ... -
Page 8: Current
Solimotion FTR20 Current • Current output 4 ��� 20 mA • Active • Max. load: 600 Ω Electrical connection Current output Connection terminals Terminal 3 (+) − 4 (−) M12 connector (Binder series 713/763) Connector 2, contact 3 (+) − 4 (−) Harting connector type HAN8D Connector 2, contact 3 (+) −... -
Page 9: Power Supply �������������������������������������������������� 9 Certificates And Approvals
Solimotion FTR20 Power supply Terminal and connector assignment 6 Terminal and connector assignment of the power supply Electrical connection Power supply B ( 1 : 1 ) Connection terminals Terminal 1 − 2 A ( 1 : 1 ) M12 connector (Binder series 713/763) Connector 1, contact 1 − 2 Harting connector type HAN8D Connector 1, contact 1 −... -
Page 10: Cable Entries
Solimotion FTR20 Cable entries • Cable gland M20 x 1�5 or cable entry ½ NPT • Degree of protection: Min� IP66 • Cable gland in non-hazardous areas: - Material: Plastic - Color: Gray - Clamping range: 5 to 10 mm (EN 61444) or 7-10 mm (UL-514 B) •... -
Page 11: Performance Characteristics ����������������������� 11 Accessories
Solimotion FTR20 Performance characteristics Reference operating Every application is different in terms of its shapee (such as influential reflexion edges), medium as conditions well as the properties of the medium (such as attenuation and moisture levels) and therefore always requires an individual basic setup of the flow indicator. -
Page 12: Installation
Solimotion FTR20 Installation Mounting location The mounting location must be selected such that application-specific influences are minimized (→ 11). Depending on the installation locations, different process adapters are available as accessories (→ 31). Mechanical protection of the devices (such as protection against larger falling product pieces) should be taken into account. - Page 13 Solimotion FTR20 Installation with self-sealing connection thread (R 1½ and 1½ NPT) 9 Installation with self-sealing connection thread Turn self-sealing connection thread R 1½ or 1½ NPT into the process (SW55 hexagon)� Align electronic housing� Secure the housing (2 mm hex socket). Installation with non-self-sealing connection thread (G 1½) 10 Installation with non-self-sealing connection thread...
-
Page 14: 12 Direct Mounting With Threaded Connection
Solimotion FTR20 Direct mounting with threaded The simplest mounting method is by screwing into the process wall� To do this, a corresponding connection internal thread (Rp 1½, 1½ NPT or G 1½) must be available in the process� • Weld-in adapters of type FAR52-A*, with corresponding internal thread, are available as accessories (→... -
Page 15: Mounting In Front Of Microwave-Impermeable
Solimotion FTR20 For applications with a high process pressure up to 2 MPa (20 bar) absolute, we recommend the following high pressure adapter (accessories → 31). Integrated venting element High pressure adapter 15 (0.59) 32 (1.26) mm (in) 13 Mounting with high-pressure adapter The maximum temperature at the FTR20 must be observed�... -
Page 16: Mounting In Front Of Microwave-Permeable Sight
Solimotion FTR20 • Suitable mounting brackets made of plastic or aluminum are available as accessories (→ 31). • Suitable plugs made of PTFE or aluminum oxide ceramic of type FAR54 are available as accessories in different lengths and diameters (→ 31). • Details on plug mounting → TI01371F/97/EN... -
Page 17: Mounting On Process Nozzles
Solimotion FTR20 Mounting on process nozzles Mounting on a process nozzle offers the following advantages: • By using available nozzles, no modifications of the process are required. • The use of suitable plugs can prevent material from collecting in the nozzle�... -
Page 18: Mounting With Spacer Tube (Wave Guide)
Solimotion FTR20 When there is a risk of condensate forming between the process connection of the FTR20 and the plug, we recommend using the process nozzle type FAR50 (→ 31), which is equipped with a mounting flange with a pressure equalization element�... - Page 19 Solimotion FTR20 Spacer tube Process insulation Container wall Inner lining 20 Mounting with spacer tube Suitable spacer tubes of type FAR53, made of steel or stainless steel, are available as accessories in different versions (→ 31). When there is a risk of condensate forming in the spacer tube, we recommend using process nozzle type FAR50 (→...
-
Page 20: Mounting With High Temperature Adapter And Length Extensions
Solimotion FTR20 Mounting with high For simple and easily accessible high temperature applications in the range from +70 to +450 °C temperature adapter and (+158 to +842 °F) there is a simple adapter with flush-mounted aluminum oxide ceramic, which can length extensions be extended with length extensions�... -
Page 21: Storage Temperature
Solimotion FTR20 Environment Operating temperature -40 to +70 °C (-40 to +158 °F) range Storage temperature -40 to +80 °C (-40 to +176 °F) Degree of protection • IP 66 (with closed housing) • IP 20 (with open housing) Vibration resistance see vibration influence (→... -
Page 22: Process
Solimotion FTR20 Process Process temperature range • Without optional process adapter: -40 to +70 °C (-40 to +158 °F) • With optional high temperature adapter (→ 31): -40 to +450 °C (-40 to +842 °F) • Note deviating temperature ranges with the accessories offered! Process pressure range •... -
Page 23: Dimensions
Solimotion FTR20 Mechanical construction Dimensions 85 (3.35) 169 (6.65) 60 (2.36) 183 (7.20) 164 (6.46) 77 (3.03) 189 (7.44) 95 (3.74) 175 (6.89) mm (in) 23 Dimensions Connection thread R 1½, 1½ NPT or G 1½ Hexagon SW55 Weight 0.7 to 1.7 kg (1.54 to 3.75 lbs), depending on the selected housing and process connection On device variants with connector and extended ordering option "Electronics, encapsulated"... -
Page 24: Materials
Solimotion FTR20 Materials • Stainless steel 316Ti (1�4571): - Process connection - Pressure equalization element (F15/F34 housing) • Stainless steel 316L (1�4435): - F15 housing - Adapter ½ NPT (F15/F34 housing) • Aluminum: - F34 housing • Plastic: - F16 housing - M20 cable gland, adapter ½... -
Page 25: Operability
Solimotion FTR20 Operability By using frequencies in the 24 GHz range, the material flow of products with low attenuation can be detected, even if the product quantities are low� The calibration options for the FTR20 flow indicator offer the necessary flexibility to ensure that the device can be easily adapted to the application: •... -
Page 26: Local Operation
Solimotion FTR20 • Toggling the encoding switch position unequal "0" (function selection) puts the FTR20 into parameter configuration mode. The bulk solids motion detector continues to work in the background, changed settings are taken into account directly. • Remember to set the encoding switch to position "0" (= operation) when you have finished configuring settings�... - Page 27 Solimotion FTR20 Function/meaning Value range off (no delay) Switching delay setting (response delay) 100 ms ··· (200/300/500 ms, 1/2/3/5/10 s) Switching delay setting (drop-out delay) 20 s Low level of bulk solids movement ··· Enable simulation mode High level of bulk solids movement...
-
Page 28: Ce Mark
The FTR20 flow indicator meets the legal requirements of the applicable EU guidelines. These are listed in the corresponding EU Declaration of Conformity, together with the applied standards� By applying the CE mark, Endress+Hauser confirms that the device has passed the necessary tests. Ex approval The measuring device is certified for use in hazardous areas and the safety instructions to be observed are provided in the separate "Safety Instructions"... -
Page 29: Ordering Information
Solimotion FTR20 Ordering information Detailed ordering information is available from the following sources: • In the product configurator on the Endress+Hauser website: www�endress�com → Select your country → Products → Select measurement technologies, software or components → Select product (selection lists: Measuring methods, product family, etc.) → Device support (right column): Configure the selected product →... -
Page 30: User-Specific Settings
Solimotion FTR20 User-specific settings Ordering a device with the extended option "User-specific settings", it will be programmed according to the customers specification during assembly, in this case the following form must be completed and added� User-specific settings FTR20 Order code: FTR20 - Device no.:... - Page 31 Various accessories are available for the device, and can be ordered with the device or at a later stage from Endress+Hauser� Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www�endress�com�...
- Page 32 Solimotion FTR20 Mounting flange The following mounting flanges can be used for mounting on available process nozzles with connection dimensions in accordance with DIN EN 1092-1: • Order No�: 71006348, DN40 PN16, Rp 1½ internal thread 71108383, DN40 PN16, Rp 1½ internal thread, inspection certificate in accordance with EN 10204-3.1...
- Page 33 Solimotion FTR20 The following mounting flanges can be used for mounting on available process nozzles with connection dimensions in accordance with ANSI/ASME B16�5: • Order No�: 71006349, 1½" 150 lbs, 1½ NPT internal thread 71108387, 1½" 150 lbs, 1½ NPT internal thread, inspection certificate in accordance with EN 10204-3.1...
- Page 34 Solimotion FTR20 High pressure adapter For mounting of with a microwave-impermeable process wall and high process pressure up to 2 MPa (20 bar) absolute, the following high pressure adapters (→ 14) can be used: • Order No�: 71381894: Process and device connecting thread G 1½ in accordance with ISO 228-1 71381898: Process and device connecting thread G 1½...
- Page 35 Solimotion FTR20 Sight glass fitting For mounting with microwave-impermeable process walls and unpressurized process, the following sight glass fittings can be used for welding on or in: • Order No�: 71026443, DN50 71026444, DN80 71026445, DN100 • Material: 316Ti stainless steel, silicon seal (max� +200 °C/+392 °F) •...
- Page 36 Solimotion FTR20 mm (in) 32 Dimensions of sight glass fitting for welding on/in for processes up to 1 MPa mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) 80 (3�15) 100 (3�94) 102 (4�02) 165 (6�50) 125 (4�92) 16 (0�63) 100 (3�94) 125 (4�92) 127 (5�00) 200 (7�87) 160 (6�30) 20 (0�79)
- Page 37 Solimotion FTR20 33 Dimensions of sight glass fitting for bolting on for processes up to 2.5 MPa mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) 65 (2�56) 80 (3�15) 15 (0�59) 165 (6�50) 125 (4�92) 41 (1�61) 18 (0�71) 82 (3�23) 80 (3�15) 100 (3�94) 20 (0�79)
- Page 38 Solimotion FTR20 60 (2.36) Venting element Sealed disc, optional 100 to 300 (3.94 to 11.81) ca. 105 (4.13) mm (in) 34 Dimensions of plug-in adapters Weld-in nozzles For nozzle mounting, weld-in nozzles of type FAR50 can be used (→ TI01362F/97/EN): • Process nozzle DN50 to DN100 PN16 shape A, 2 NPT to 4 NPT 150 lbs RF •...
- Page 39 Solimotion FTR20 200 to 2000 (7.87 to 78.74) 60.3 (2.37) mm (in) 36 Dimensions of spacer tube (wave guide) Wave guide For mounting in structurally restricted installation positions, wave guides of type FAR55 can be used (→ TI01372F/97/EN). • Process connection: With or without thread R 1½ and 1½ NPT •...
- Page 40 Solimotion FTR20 High temperature adapter with length extensions For mounting with connection thread in processes with temperatures up to max� +450 °C (+842 °F), the following high temperature adapters (SW55) and length extensions can be used (→ 31): • Order No. (high temperature adapter with flush-mounted ceramic disc and pressure equalization element): 71113441, thread R 1½/Rp 1½...
-
Page 41: Supplementary Documentation
Supplementary documentation For an overview of the scope of the associated technical documentation, see the W@M Device Viewer: enter serial number from nameplate (www�endress�com/deviceviewer) Standard documentation Operating instructions for Solimotion FTR20 Documentation code: BA01136F/97/EN Supplementary device- Safety instructions ATEX dependent documentation... - Page 42 Solimotion FTR20 Endress+Hauser...
