Endress+Hauser Solimotion FTR20 Brief Operating Instructions

Endress+Hauser Solimotion FTR20 Brief Operating Instructions

Flow indicator for bulk solids
Hide thumbs Also See for Solimotion FTR20:

Advertisement

Quick Links

Download this manual
KA01725F/97/EN/01.24-00
71671574
2024-09-09
Products
Brief Operating Instructions

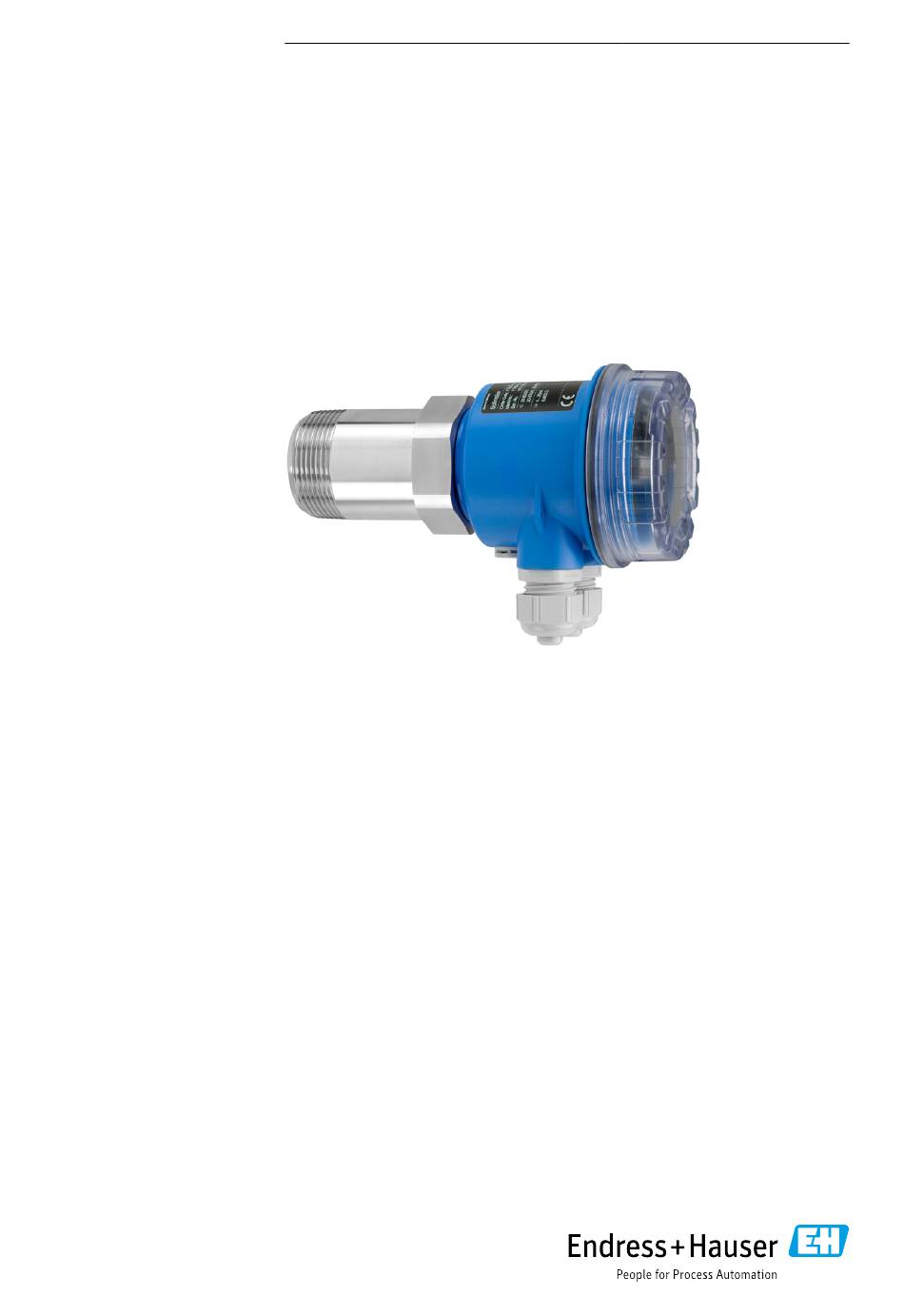

Solimotion FTR20
Flow indicator for bulk solids
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

loading
Need help?

Need help?

Do you have a question about the Solimotion FTR20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Solimotion FTR20

Summary of Contents for Endress+Hauser Solimotion FTR20

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Liquiphant FTL41 Solimotion FTR20 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser Endress+Hauser...

  • Page 3: Table Of Contents

    Solimotion FTR20 Table of contents Table of contents About this document                                                      4 Symbols .

  • Page 4: About This Document

    About this document Solimotion FTR20 About this document Symbols 111 Safety symbols This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Basic Safety Instructions

    Solimotion FTR20 Basic safety instructions 115 Device-specificsymbols LED on Indicates an illuminated LED LED off Indicates a non-illuminated LED Configuration mode Indicates the function number or value Normal operation Indicates only the signal strength of the limit detection Key (+)

  • Page 6: Workplace Safety

    The manufacturer is not liable for damage caused by improper or non-designated use. Clarification of borderline cases: • In the case of special fluids and media used for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 7: Product Identification

    All of the information on the measuring device is displayed along with an overview of the scope of technical documentation provided • Enter the serial number on the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) on the nameplate 321...

  • Page 8: Storage And Transport

    Mounting Solimotion FTR20 Storage and transport 331 Storage conditions Use original packaging. 332 Storage temperature → Operating temperature range 333 Transporting the device Transport the device to the measuring point in the original packaging. Mounting Mounting conditions Minimization of application-specific influences →...
  • Page 9 Solimotion FTR20 Mounting 413 Mounting with accessories Details of available accessories →  TI00447F "Accessories" 414 Mounting dimensions 85 (3.35) 169 (6.65) 60 (2.36) 183 (7.20) 77 (3.03) 164 (6.46) 189 (7.44) 175 (6.89) 95 (3.74) 29 (1.14) 0000000296 3 Mounting dimensions. Unit of measurement mm (in)

  • Page 10: Mounting The Device

    Mounting Solimotion FTR20 Mounting the device 421 Mounting with connection thread 0000000166 4 Mounting with connection thread 1½ NPT G 1 / G 1½ Screw in connection thread. For G 1½ thread: Tighten counternut. Align the housing of the electronics. Fix the housing in place.

  • Page 11: Post-Installation Check

    Solimotion FTR20 Electrical connection 0000000191 5 Mounting in front of microwave-impermeable process wall Microwave-permeable plug M icrowave-permeable plug in case of condensate formation on the inner process wall 423 Mounting with accessories →  BA01136F Observe the enclosed instructions enclosed with the accessories! Post-installation check ̃ Is the device undamaged (visual inspection)? ̃ Does the device conform to the measuring point specifications? For example: •...

  • Page 12: Connection Requirements

    Electrical connection Solimotion FTR20 Connection requirements The following points must be observed before connecting the device: • The voltage supply must match the voltage specified on the nameplate. • Switch off the supply voltage before connecting the device. • When using the public powers supply, install an easy accessible power switch in the proximity of the instrument.

  • Page 13: Connecting The Device

    Solimotion FTR20 Electrical connection Connecting the device 521 Wiring 0000000381 6 Electrical connection Connecting potential matching (inside) F34 housing Connecting potential matching (outside) F15 housing M12 connector Connecting potential matching (inside) F15 housing Terminals Connecting potential matching (outside) F34 housing Connecting potential matching (inside) F16 housing Connecting potential matching (outside) F16 housing Cable gland 10 Connecting cable 11 Harting connector Endress+Hauser...
  • Page 14 Electrical connection Solimotion FTR20 522 Supply circuit connection 0000000163 7 Supply circuit connection (Connector 1) Supply voltage • 85 to 253 V AC, 50/60 Hz • 20 to 60 V DC or 20 to 30 V AC, 50/60 Hz Power consumption • 9 VA (85 to 253 V AC, 50/60 Hz) • 2.4 W (20 to 60 V DC) / 4 VA (20 to 30 V AC, 50/60 Hz)
  • Page 15 Solimotion FTR20 Electrical connection 523 Connection signal circuit 0000000162 8 Connection signal circuit (Connector 2) 3 (NO) 4 (CC) 5 (NC) 0000000149 9 Signal circuits Relay output • Switching capacity 250 V AC / 4 A, 125 V DC / 0.4 A or 30 V DC / 4 A • Switching delay parameterizable (off, 500 ms to 10 s) •...

  • Page 16: Post-Connection Check

    Electrical connection Solimotion FTR20 • The contact material of the relay is also suitable for switching small signal circuits, if no inductive loads or higher currents have been switched previously. • If the switching frequency is high, the solid-state relay should be selected.

  • Page 17: Operation Options

    Solimotion FTR20 Operation options Operation options Overview 0000000354 10 Display and operating elements Display - Normal operation: Signal strength - Configuration mode: Function number and function value Switch output LED (yellow), only relay Operating button (increase or toggle) Operating button (decrease or toggle) Function selection switch Ready for operation LED (green) Operating Select any function (Overview → 26) → Encoding switch 1 to F →...

  • Page 18: Commissioning

    Commissioning Solimotion FTR20 Setting the selected function → The two operating buttons can be used to increase/decrease the value or to switch the selection. Example: Function 3 (manual adjustment with movement of bulk solids) → → → → The configured value is stored as soon as the function is switched.
  • Page 19 Solimotion FTR20 Commissioning 721 Adjustmentwithmaximumbulkflow(function1) Set encoding switch to Position 1 → Display of the function number → After 2 seconds: Display of the current signal strength, example: Simultaneously press the operating keys on the device with maximum bulk flow →...

  • Page 20: Advanced Settings

    Commissioning Solimotion FTR20 Move the encoding switch to the initial position 0 → Display of the current signal strength Optional: Additionalmanualcalibrationwithnomovementofbulksolidsorminimumsolidflow (function4) For most applications the automatic setup is sufficient. The manual setup can be used to adapt the flow indicator individually to the application.
  • Page 21 Solimotion FTR20 Commissioning H = 1 H = 4 0000000275 11 Adjustment of the switching hysteresis Hysteresis Move the encoding switch to position 5 → Display of the function number → After 2 seconds: Display of the configured hysteresis, example: Press the operation buttons on the device in order to configure the hysteresis in the range from 1 to 4 LEDs →...
  • Page 22 Commissioning Solimotion FTR20 0000000362 12 Adjustment of limit signal function Rest position (supply voltage missing) Relay switches with no movement of bulk solids Relay switches with movement of bulk solids (default setting) Move the encoding switch to position 6 → Display of the function number → After 2 seconds: Display of the configured limit signal function, example: Press the button on the device in order to change between the two possible limit signal functions →...
  • Page 23 Solimotion FTR20 Commissioning 733 Switchingdelay(function7andfunction8) An additional switch-on and/or switch-off delay can be configured for the switch output. This can be used, for example, to stabilize the switch output when the signal strength fluctuates greatly, so that the relay does not switch until the switch point has been exceeded or undershot for a corresponding time.
  • Page 24 Commissioning Solimotion FTR20 Press the button on the device to configure the delay time → Display of the changed delay time, example switch-off delay = 300 ms: Move the encoding switch to the initial position 0 → Display of the current signal strength •...

  • Page 25: Reset To Factory Settings

    Solimotion FTR20 Commissioning Reset to factory settings Move the encoding switch to position F → Display of the function number → All LEDs go out after 2 seconds. Press both buttons on the device to set it to the factory defaults →...

  • Page 26: Overview Device Functions

    Commissioning Solimotion FTR20 Overview device functions Function Description Factory settings Display of the signal strength ― Automatic adjustment with movement of bulk solids ― Automatic adjustment with no movement of bulk ― solids Manual adjustment with movement of bulk solids ―...
  • Page 27 Solimotion FTR20 Endress+Hauser...
  • Page 28 *71518769* 71518769 www.addresses.endress.com...
