Summary of Contents for Endress+Hauser Solimotion FTR16

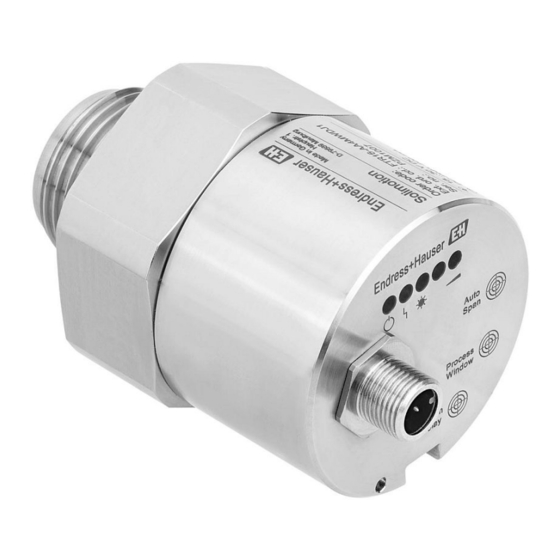

- Page 1 Products Solutions Services XA02804F-A/97/EN/ 02.22 71562721 Safety Instructions Solimotion FTR16, FTR20 ATEX: II 1/2 D Ex ta/tb IIIC T 102°C Da/Db II 2 D Ex tb IIIC T 102°C Db IECEx: Ex ta/tb IIIC T 102°C Da/Db Ex tb IIIC T...
-
Page 3: Table Of Contents
Solimotion FTR16, FTR20 XA02804F-A Solimotion FTR16, FTR20 Table of contents About this document ................. 4 Associated documentation ............... 4 Supplementary documentation ..............4 Manufacturer' s certificates ............... 4 Manufacturer address ................5 Other standards ..................5 Extended order code .................. 5 Safety instructions: General .............. -
Page 4: About This Document
English source text. The document translated into EU languages is available: • In the download area of the Endress+Hauser website: www.endress.com -> Downloads -> Manuals and Datasheets -> Type: Ex Safety Instruction (XA) -> Text Search: …... -
Page 5: Manufacturer Address
Solimotion FTR16, FTR20 XA02804F-A Affixing the certificate number certifies conformity with the following standards (depending on the device version): • IEC 60079-0 : 2017 • IEC 60079-26 : 2021 • IEC 60079-31 : 2013 Manufacturer Endress+Hauser SE+Co. KG address Hauptstraße 1 79689 Maulburg, Germany Address of the manufacturing plant: See nameplate. - Page 6 XA02804F-A Solimotion FTR16, FTR20 Optional specifications Additional features for the device (optional features) are specified in the optional specifications. The number of positions depends on the number of features available. The features are denoted by two characters to aid identification (e.g. JA). The first position (ID) stands for the feature group and consists of a number or a letter (e.g.
- Page 7 Solimotion FTR16, FTR20 XA02804F-A Position 4 (process connection) Option selected Description FTR16 Thread ISO228 G1, 316L Thread ISO228 G1-1/2, 316L Thread ANSI MNPT1-1/2, 316L Position 5 (window transmission) Option selected Description FTR16 PTFE Optional specifications Position 9 (accessory enclosed) Option selected...
- Page 8 XA02804F-A Solimotion FTR16, FTR20 Position 2 (output) Option selected Description FTR20 Relay SPDT 4-20 mA Solid-state relay Position 3 (supply voltage) Option selected Description FTR20 85 to 253 V AC, 50/60 Hz 20 to 60 V DC or 20 to 30 V AC, 50/60 Hz...
-
Page 9: Safety Instructions: General
• from insulated capacitors (e.g. insulated metallic labels) • Modifications to the device may compromise explosion protection and must be carried out by staff authorized by Endress+Hauser. Device type FTR16 The suitability of the classification must be checked for the application. -
Page 10: Safety Instructions: Installation
XA02804F-A Solimotion FTR16, FTR20 Safety instruc- tions: Installation 0000000148 Zone 21 Potential equalization Pipeline (Zone 20, Zone 21) FTR16, FTR20 Potential matching line Power and signal circuits • Pay attention to the installation and safety instructions in the Opera- ting Instructions. -
Page 11: Safety Instructions: Zone 20
Solimotion FTR16, FTR20 XA02804F-A Device type FTR20 • To maintain IP66 housing protection, install the housing cover, cable entries and plug-in connectors correctly. During operation, screw on cover until the stop and tighten securing clamp on cover. • Seal unused entry glands with approved sealing plugs that correspond to the type of protection. - Page 12 XA02804F-A Solimotion FTR16, FTR20 Connecting cable • FTR16 • Max. 5 Ω/wire • Total capacity < 100 nF • FTR20 • Maximum 500 m per connection • Ci ≤ 200 pF/m • Li ≤ 1 μH/m (or 30 μH/Ω) Endress+Hauser...
- Page 13 Solimotion FTR16, FTR20 XA02804F-A Endress+Hauser...
- Page 14 XA02804F-A Solimotion FTR16, FTR20 Endress+Hauser...
- Page 15 Solimotion FTR16, FTR20 XA02804F-A Endress+Hauser...
- Page 16 *71518769* 71518769 www.addresses.endress.com...
