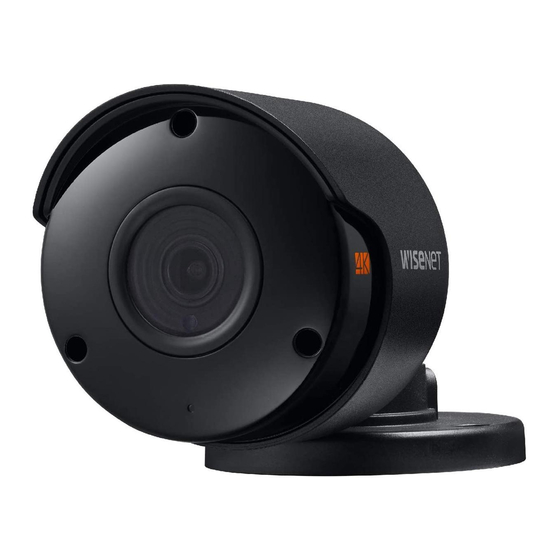

- Page 1 4K AHD Analog Bullet Camera User Manual SDC-99447BF...
- Page 2 4K AHD Analog Bullet Camera User Manual Copyright ©2019 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
-
Page 3: Important Safety Instructions
overview IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. -
Page 4: Safety Precautions
overview SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. - Page 5 CAUTION Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference. Do not install in a location subject to high temperature, low temperature, or high humidity. Doing so may cause fire or electric shock.
-
Page 6: Table Of Contents
overview CONTENTS OVERVIEW Important Safety Instructions Safety Precautions Contents Product Features INSTALLATION Part Names and Functions Precautions Installing the camera Protection of Cable from Water Connecting the DVR APPENDIX Product Specification Product Overview Troubleshooting 6_ overview... -
Page 7: Product Features
PRODUCT FEATURES • High resolution Use the 4K-pixel CMOS, and provide high resolution equivalent to 1200TVL horizontal resolution. • High sensitivity The built-in high sensitive COLOR CMOS can produce a clear image. 0Lux (Auto IR LED On) • D-WDR (Digit Wide Dynamic Range) With the 4K-pixel CMOS sensor, this camera can provide a clear and quality image even under the circumstance of backlight, by way of and accurate exposure for the dark area and reducing exposure for the bright area: resulting in a clear, detailed and accurate image. -
Page 8: Part Names And Functions
installation PART NAMES AND FUNCTIONS Name Description Lens 4mm focal length enables you to monitor at a wider field of view Illumination Sensor Detects incoming light to control the IR LED. Power Cable Use to power the camera. BNC Cable BNC terminal for video signal output. -
Page 9: Precautions
PRECAUTIONS Ensure you read out the following instructions before installing the camera: • Select an area (ceiling or wall) that can withstand 5 times the camera weight • Stuck-in or peeled-off cables can cause damage to the product or a fire. •... -
Page 10: Protection Of Cable From Water
installation PROTECTION OF CABLE FROM WATER If this product is mounted outdoor, water leakage may occur at gap between cables. As shown below, butyl rubber (available on the market) shall be used to protect from water. 1. Connect power supply and BNC power source. 2. -
Page 11: Product Specification
appendix PRODUCT SPECIFICATION Item Details Video Imaging Device 8MP CMOS (SAMARTSENS) Effective Pixels 3840(H)x2160(V) Scanning System Progressive Horizontal Resolution 2160p Min. Illumination 0 Lux (IR LED ON) Camera Output Lens Focal Length 4.0mm Max. Aperture Ratio F2.0 Angular Field of View D : 105°... -
Page 12: Product Overview
appendix PRODUCT OVERVIEW unit : mm(inch) 12_ appendix... -
Page 13: Troubleshooting
TROUBLESHOOTING Please refer to the following table if you have problems during camera operation. Please contact with the authorized technicians if your problem cannot be solved through the guidance. Problem Troubleshooting There is no content displayed on y Check whether the power cable and the cable between camera and monitor are connected correctly. - Page 14 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
