NETWORK CAMERA
User Manual
PNM-9000QB/
SLA-T1080FA/SLA-T2480A/T2480VA/T4680A/T4680VA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNM-9000QB and is the answer not in the manual?

Questions and answers

Summary of Contents for Wisenet PNM-9000QB

  • Page 1 NETWORK CAMERA User Manual PNM-9000QB/ SLA-T1080FA/SLA-T2480A/T2480VA/T4680A/T4680VA...
  • Page 2 Network Camera User Manual Copyright ©2020 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from 12 Vdc, min.1.6 A / PoE , 0.42 A. (PNM-9000QB) The lightning flash with arrowhead symbol, within an equilateral triangle, is 16.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
  • Page 5: Table Of Contents

    Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included (PNM-9000QB) What’s Included (Lens module -Optional) At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Inserting/Removing a Micro SD card...
  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Supported OS : MS Windows 8.1, 10, Mac OS X 10.13 Recommended products : QNAP NAS, Synology NAS ~ Recommended browser: Google Chrome...
  • Page 7: What's Included (Pnm-9000Qb)

    WHAT’S INCLUDED (LENS MODULE -OPTIONAL) Please check if your camera and accessories are all included in the product package. This is a lens module separately sold that is mounted to PNM-9000QB. (As for each sales country, accessories are not the same.) Please check if your camera and accessories are all included in the product package.
  • Page 8 overview Model Name Appearance Item Name Quantity Description Model Name Appearance Item Name Quantity Description Lens Module Lens Module Quick Guide Quick Guide (Optional) (Optional) Tapping Screw Used for installation on the wall or ceiling SLA-T2480VA Lens module bracket Use this for lens module installation Cable tie Use this for organizing the cable SLA-T2480A...
  • Page 9 Model Name Appearance Item Name Quantity Description Model Name Appearance Item Name Quantity Description Lens Module Lens Module Quick Guide Quick Guide (Optional) (Optional) Tapping Screw Used for installation on the wall or ceiling SLA-T4680VA Lens module bracket Use this for lens module installation Cable tie Use this for organizing the cable SLA-T4680A...
  • Page 10: At A Glance

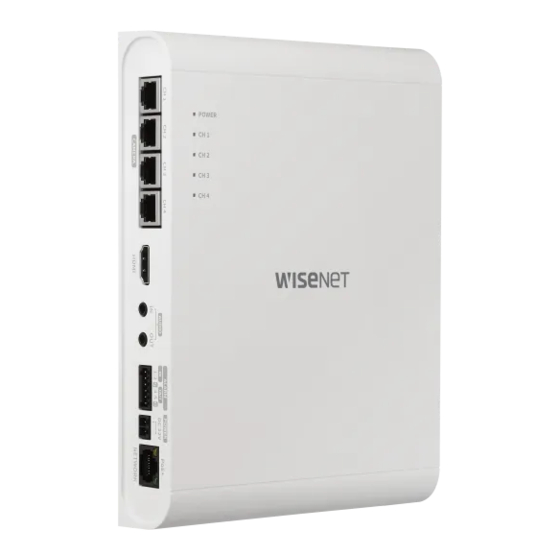

    overview AT A GLANCE Side of the main unit Front of the main unit Item Description Connection terminal of lens This terminal is connected to the lens module through the cable to connect the lens module module. HDMI port By connecting an HDMI cable, you can watch a live feed on the monitor. AUDIO IN Used to connect to a microphone.
  • Page 11 Appearance of lens module <SLA-T1080FA> <SLA-T2480A> <SLA-T2480VA> <SLA-T4680VA> Item Description Lens Module This lens module is used to shoot video. Main unit connection This terminal is connected to the main unit through the cable to connect the lens module. terminal <SLA-T4680A>...
  • Page 12: Installation & Connection

    installation & connection INSTALLATION 2. Use four screws provided to join the installation bracket to the main unit. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Organize the cable separately in order to prevent excessive burden on the lens module while the camera is installed (within 1m from the lens module ).
  • Page 13 Install lens module (SLA-T1080FA) Install lens module (SLA-T2480A/SLA-T4680A) 1. Drill a hole which the lens is passed through at the location where you want to 1. Use two screws provided or remove protective film to use the double- install it. sided tape on the bottom side of the lens module bracket to install the lens module bracket.
  • Page 14 installation & connection Install lens module (SLA-T2480VA/SLA-T4680VA) Installing the lens module in the main unit Connect the lens module cable to the [CAMERA] port on the side of the main unit. 1. Make a hole for the lens module at the spot where you want to install it. Connect the lens module and turn it on.
  • Page 15 Connect lens module cable to lens module Adjust the length of the cable for connecting the lens module The length of the cable for connecting the main unit and lens module can be adjusted. Please follow the 1. Unscrew the back cover by turning it counterclockwise. steps in the correct order to adjust the length of the cable for connection: Be sure to remove the back cover first and assemble/disassemble the RJ45 1.
  • Page 16: Inserting/Removing A Micro Sd Card

    installation & connection INSERTING/REMOVING A MICRO SD CARD Removing a Micro SD card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. Disconnect the power cable from the camera before inserting the Micro SD card. When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
  • Page 17: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE Network Cable Specification Item Contents Remark Connector RJ45 (10/100/1000BASE-T) To operate with 1000BASE-T, a cable of Ethernet 10/100/1000Base-T Category 6 or higher should be used for the Giga hub. Cable Category 6 Max Distance 100M DC Resistance ≤ 0.125 Ω/m PoE+ Support IEEE 802.3at HDMI Supported Monitor...
  • Page 18 installation & connection Connecting to Audio Input/Output Connecting to the I/O port box Connect the Alarm I/O cable to the corresponding port of the port box. Speaker Microphone ~ ALARM-IN : Used to connect the alarm input sensor or external day/night sensor. ~ ALARM-OUT : Used to connect the alarm output signal.
  • Page 19 To connect the alarm out If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction. Refer to the alarm out connection diagram below when connecting devices that exceed the voltage and current specifications.
  • Page 20: Network Connection And Setup

    network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
  • Page 21: Using Device Manager

    USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Guides>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).
  • Page 22: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. PNM-9000QB - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.
  • Page 23: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.
  • Page 24: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. 24_ network connection and setup...
  • Page 25: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.
  • Page 26: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.
  • Page 27: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ Verify the settings in the following sequence: When an Windows 10 user accesses <Motion detection> of <Analytics> is ~ This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome set to <Enable>, but no notification A.
  • Page 28 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This manual is also suitable for:

Sla-t1080faSla-t2480aSla-t2480vaSla-t4680aSla-t4680va
