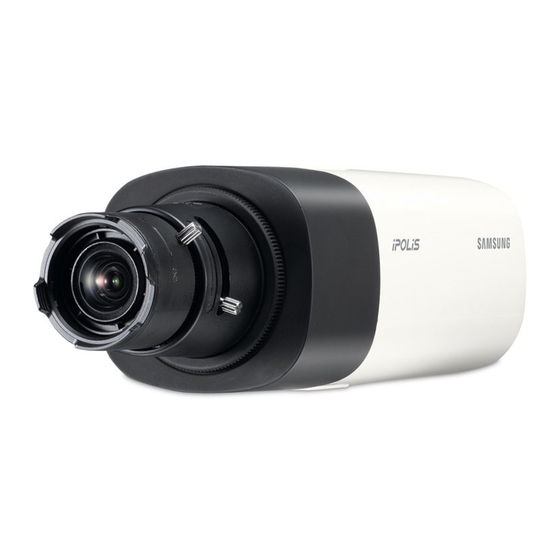

- Page 1 NETWORK CAMERA Quick Guide SNB-5003/SNB-5004/SND-5083/SND-5084...
- Page 2 What’s Included ~ SNB-5003 Warranty card Camera Quick Guide (Optional) (Optional) Cable for the testing 6-position Terminal Block CS/C Lens (Options) monitor ~ SNB-5004 Warranty card Camera Quick Guide (Optional) (Optional) Cable for the testing 6-position Terminal Block CS/C Lens (Options)
- Page 3 ~ SND-5083 Warranty card Camera Quick Guide (Optional) (Optional) Cable for the testing Power Terminal Block Alarm Cable Screw monitor Indoor Buried Housing Template (Options) ~ SND-5084 Warranty card Camera Quick Guide (Optional) (Optional) Cable for the testing Power Terminal Block Alarm Cable Screw monitor...
- Page 4 netWork WIrIng dIagram Camera INTERNET Camera PPPoE or PPPoE or Broadband Cable Modem Cable Modem Router External Remote PC DDNS Server (Data Center, KOREA) Local PC manual netWork setup Run <Ip Installer_v2.XX.exe> to display the camera search list. At the initial startup, both [auto set] and [manual set] will be grayed out. For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.
- Page 5 connectIng to the camera from a shared local pc 1. Run the IP Installer. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.
- Page 6 Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, set <Quick connect> of <Wisenet DDNS> to <On> in the “Setup Network DDNS” menu.
- Page 7 1. Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and sign in with a registered account. 2. From the top menu bar, select <ddns serVIce> - <mY ddns>. 3. Click [product regIstratIon]. 4. Please enter the product ID and fill in the items displayed.
- Page 8 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwhasecurity.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
