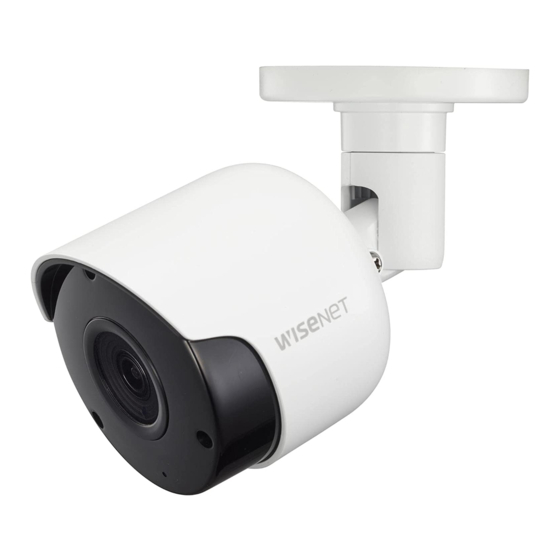

2M AHD Analog Bullet Camera
Quick Guide
SDC-79446BF
Copyright
©2019 Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other
trademarks mentioned in this manual are the registered trademark of their
respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be
reproduced, distributed or changed, partially or wholly, without formal authorization.
Disclaimer
Hanwha Techwin makes the best to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this document and the subsequent results
shall be entirely on the user's own responsibility. Hanwha Techwin reserves the right to change the
contents of this document without prior notice.
™ Design and specifications are subject to change without prior notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wisenet SDC-79446BF
Summary of Contents for Wisenet SDC-79446BF
- Page 1 2M AHD Analog Bullet Camera Quick Guide SDC-79446BF Copyright ©2019 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.
-
Page 2: Overview
overview overview IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. - Page 4 overview CAUTION Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference. Do not install in a location subject to high temperature, low temperature, or high humidity. Doing so may cause fire or electric shock.
-
Page 5: Table Of Contents
CONTENTS OVERVIEW Important Safety Instructions Safety Precautions Contents INSTALLATION Part Names and Functions Precautions Installing the camera Protection of Cable from Water Connecting the DVR APPENDIX Product Specification Product Overview Troubleshooting English _5... -
Page 6: Installation
installation PART NAMES AND FUNCTIONS Name Description Lens 3.6mm focal length enables you to monitor at a wider field of view Illumination Sensor Detects incoming light to control the IR LED. Power Cable Use to power the camera. BNC Cable BNC terminal for video signal output. -
Page 7: Protection Of Cable From Water
5. Adjust camera angle as needed. 6. Connect the camera cable to the camera. Take caution when installing the camera outdoors because the cable connectors may be wet with moisture or pile up with impurities. Although the camera is IP66 rated, direct exposure to water or moisture may cause problem such as condensation. -
Page 8: Appendix
appendix PRODUCT SPECIFICATION Item Details Video Imaging Device 2 Megapixel, 1/2.9” CMOS Total Pixels 1920(H) x 1080(V) Effective Pixels 1920(H) x 1080(V) Scanning System Progressive Scan Min. Illumination 0 Lux (IR LED ON) Video Output Resolution 1080p Max, Framerate 30fps@1080p(NTSC), 25fps@1080p(PAL) Focal Length (Zoom Ratio) 3.6mm fixed Max. -
Page 9: Product Overview
PRODUCT OVERVIEW unit : mm [inch] Ø68 mm [2.67"] Ø71.1 mm [2.79"] English _9... -
Page 10: Troubleshooting
appendix TROUBLESHOOTING Please refer to the following table if you have problems during camera operation. Please contact with the authorized technicians if your problem cannot be solved through the guidance. Problem Troubleshooting There is no content displayed on y Check whether the power cable and the cable between camera and monitor are connected correctly. - Page 11 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
