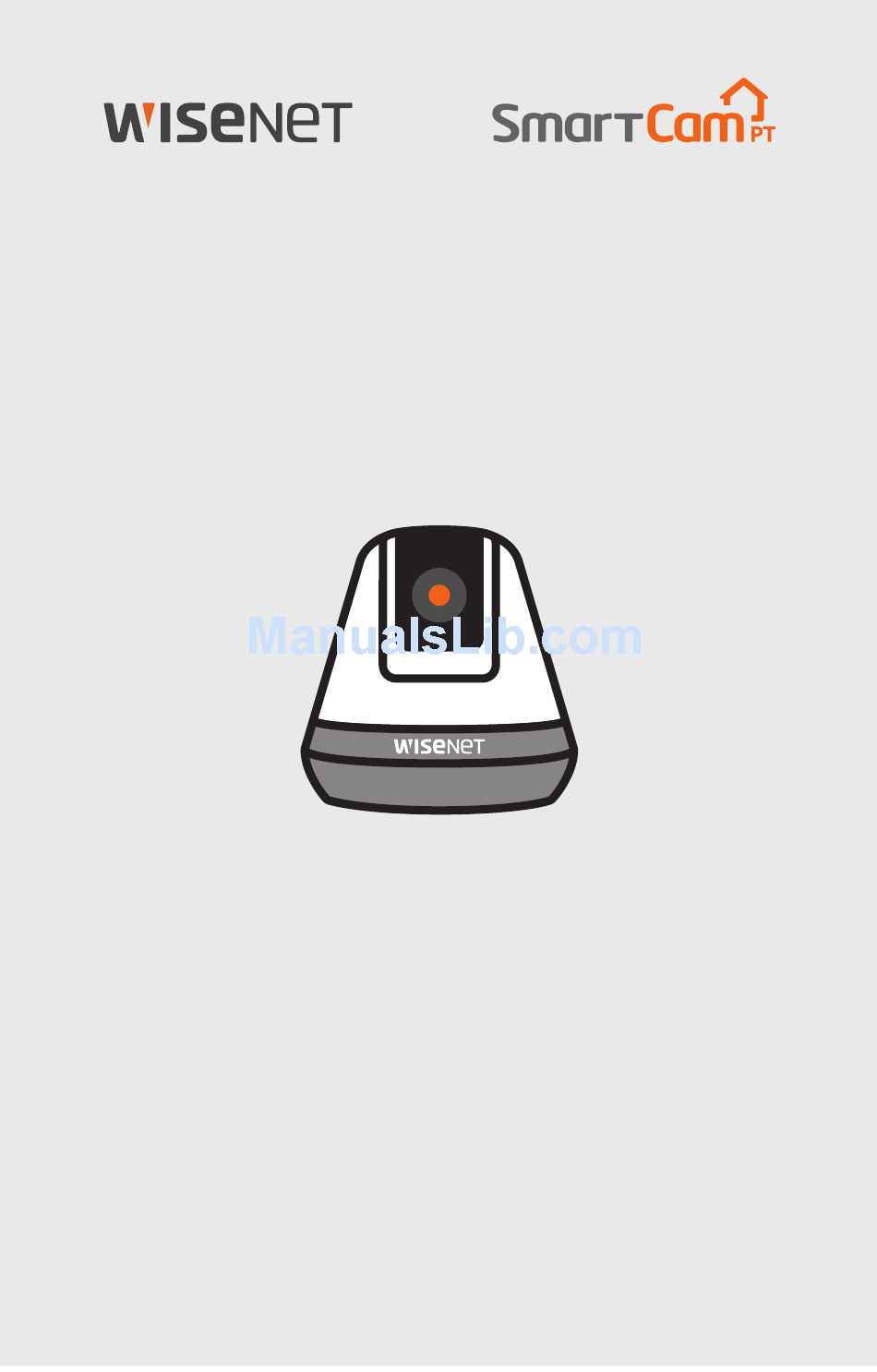

Page 1: Quick Start Guide
Quick Start Guide SNH-V6410PN... - Page 2 Determine`camera`placement`(flat`surface`or`wall)`before`installation. If`the`camera`is`not`within`range`of`your`Wi-Fi`network,`consider`using`a`Wi-Fi`extender` to`extend`the`coverage`of`your`Wi-Fi`network. Connect the power adapter to the camera. Cable`may`pose`a`choking`hazard`to`children.`Keep`the`cables`out` of`reach`of`children. For`better`image`quality,`do`not`touch`the`camera`lens. Be`sure`to`use`the`power`cable`included`in`the`box,`or`the`camera` may`not`work`properly. Download the Wisenet SmartCam+ app for app setup. Once app setup is complete, follow the instructions on page 12 to utilize the main features.
-
Page 3: Pre-Setup Check List
Pre-Setup Check List In-App Features Be in control of your home with a full breath of in-app features included with the SmartCam: (Supported functions may vary depending on the model.) ~ Push Notifications ~ Motion Detection ~ Sound (Audio) Detection ~ Live Feed On-Demand ~ Two-Way Talk For more information about your... -
Page 4: System Requirements
System Requirements Wi-Fi 802.11 b/g/n Recommended: 3.5Mbps or higher iOS 8 or higher Android OS 5.0 or higher... -
Page 5: Download & Install App
Download & Install App Go to the App Store or Play Store on Search for "Wisenet SmartCam+"; your iOS or Android device. install and then open the app. Create User Account Create account Create account Hanwha135 User ID 8-14 alphanumeric characters 8-14 alphanumeric characters ••••••••••... - Page 6 SmartCam App Setup Tap "Home Camera". Selecting a product Which product would you like to register? A1 + Doorbell Doorbell Home Camera Register a product in use Connect the power adapter to the camera. The LED light will start blinking red after boot up is complete.
- Page 7 SmartCam App Setup (Android device only) Select the name containing the last 4 digits of the product’s serial #. Access to product Select a name containing the last 4 digits of the product serial number. DIRECT-CAM-06XK (iOS device only) Go to your iPhone Settings > Wi-Fi. Turn On Wi-Fi and select “Direct-Cam”...
- Page 8 SmartCam App Setup Create a name and password for the SmartCam. (e.g. Living room) Setting a password Set the product name and password for security. Product name Password Confirm Password It is recommended to set product password different from the account password.
-
Page 9: User Interface
User Interface Overview My home CAM 01 Menu Access account and cloud information. Security Mode Set security mode (Arm, Disarm, Schedule) for individual Settings (Individual camera. camera) Camera List Editor Edit (Delete) Cameras. Security Mode Set security mode (Arm, Disarm, Schedule) for all Settings (All cameras. -
Page 10: Live Video
User Interface Live Video c d e Events Home Page Tap to exit out of the current live feed and return to the main page. Information Provides descriptions of icon functions. Auto Tracking Set to automatically track detected motion. Camera On/Off Turn Privacy Mode On/OFF. -
Page 11: Preset Configuration
User Interface Manual Recording (SD card / Cloud) Records video for 30 sec. when enabled. Capture Saves images captured from a live video. Two-Way Talk Activate the microphone to enable Two-Way Talk between the SmartCam and your smartphone. Events Tap to access event recordings. Preset Configuration Run/add/edit presets and set home position. -
Page 12: Time Setting
Basic Features Guide General Refer to the steps below for quick access to the main features of the app. Go to Setup ; General General Apply Time Setting Camera Name Living room Tap "Time zone" and select your time zone. Change password Time 2017-02-22 04:13:13... -
Page 13: Motion Detection
Basic Features Guide Motion Detection Motion Detection minimizes false push notifications of events. Go to Setup ; Event Tap the toggle switch to turn ON/OFF Motion Detection. Adjust sensitivity level. Motion detection Sensitivity Low Sensitivity High Sensitivity Adjust`to`higher`sensitivity`levels`to`trigger`more`alerts. Adjust`to`lower`sensitivity`to`reduce`false`alerts. - Page 14 Basic Features Guide Motion Zone Select Go to Setup ; Event Tap the toggle switch to turn On/Off Motion Detection. Select "Motion Zone". Draw boxes in areas of interest within the SmartCam's view (Select up to 3 areas of interest). Tap "Apply"...
-
Page 15: Audio Detection
Basic Features Guide Audio Detection When a sound is detected, a notification is sent. Go to Setup ; Event Tap the toggle switch to turn ON/OFF Audio Detection. Adjust sensitivity level. Audio Detection Sensitivity Low Sensitivity High Sensitivity Adjust`to`higher`sensitivity`levels`to`trigger`more`alerts. Adjust`to`lower`sensitivity`to`reduce`false`alerts. -
Page 16: Event Schedule
Basic Features Guide Event Schedule Go to Setup ; Event Schedule Event Schedule Apply Armed Tap to select the day of the week and then drag the orange bar up and down to desired time. Tap "Apply" when done. SD Card Go to Setup ;... - Page 17 Basic Features Guide Notification Set up to 5 email recipients to receive alerts when an event occurs. Go to Setup ; Notifications Notification Tap the toggle to enable/disable e-mail Apply notifications. Notification Configure an e-mail server to send out Email (sending) setup (Google) notifications.
