Page 3
15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from PoE(48V), 0.27A. (PNM-7002VD) The exclamation point within an equilateral triangle is intended to alert the user to 16.
Page 4
overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection. y Do not place this apparatus on an uneven surface. Battery y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup What’s Included What’s Included (Lens module -optional) At a Glance At a Glance (Lens module) APPENDIX Troubleshooting INSTALLATION &...
overview RECOMMENDED PC SPECIFICATIONS WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. • CPU : Intel(R) Core(TM) i7 3.4 GHz or higher (As for each sales country, accessories are not the same.) •...
SLA-2M3602D Used to connect the LAN cable with a diameter of Cable bush Ø7~8.5. SLA-2M2402D Cap Installer Used to connect the RJ45 cable. Lens module Mounted to PNM-7002VD SLA-2M6002D Card-type moisture absorbent Attached when installed. SLA-2M2802D English _7...

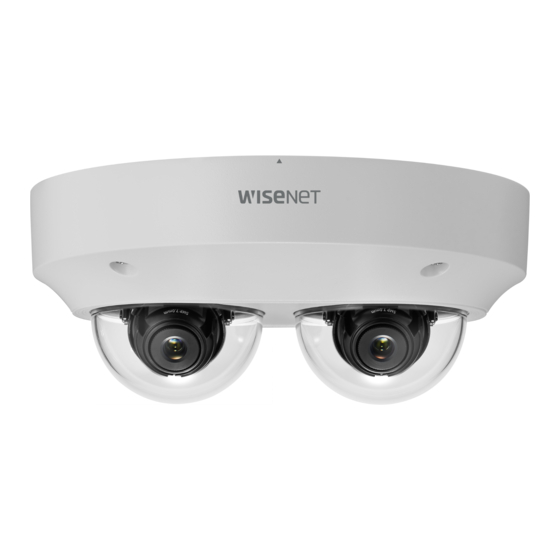

overview AT A GLANCE Inside Appearance Item Description Item Description Camera fixing screws Screws that fix the camera body to the mounting plate. Dome cover Case cover used to protect the lens and the main unit. Lens module mounting This is the terminal to mount the lens module. portion The button restores all camera settings to the factory default.
AT A GLANCE (LENS MODULE) Appearance Item Description Lens module This is a lens module that records video. Camera connector This is a terminal to connect with the camera. English _9...
installation & connection installation & connection INSTALLATION Mounting lens module 1. Align and fasten the connector of the lens module with This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are the connector of the camera body.
Page 11
Installation on a ceiling or wall 1. Use the provided template to drill holes for installation (diameter 4. Connect a cable to the camera. Be careful not to damage the cable. It should be trimmed up. 6 mm and minimum depth 45mm) and insert the supplied plastic anchors to the end.
installation & connection HOW TO INSTALL LAN CABLE FOR DIFFERENT INSTALLATION LOCATIONS 8. Cover the dome cover and turn the screw clockwise using Directly installing on wall/ceiling a Torx L Wrench to secure the cover. 1. Pull the LAN cable out of the hole of the If you do not tighten the screws completely when fixing the cover, mounting plate.
INSERTING/REMOVING A MICRO SD MEMORY CARD Method 1. Connecting the LAN cable 1. Pull off the extruded parts of the bush to be used. Disconnect the power cable from the camera before inserting the Micro SD card. 2. Route the LAN cable through the hole of the bush and connect to the LAN connector. Do not forcefully insert it in the reverse direction.
installation & connection CONNECTING WITH OTHER DEVICE Removing a Micro SD Memory Card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. Before removing the Micro SD card, in <Storage>, set the device to <Off> and press the [Apply] button and turn the camera off.
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
network connection and setup USING DEVICE MANAGER If using a Broadband Router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Guides>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).
• Example of the Dynamic IP environment configure the IP. PNM-7002VD - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.
Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _19...
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the Setup ( 1. Click the [ ] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION y On the authentication popup window prompted when initially accessing https, click "View y Verify the settings in the following sequence: <MD / VA> of <Event> is set to Authentication Certificate" and select the "Always trust when connecting to the designated <Enable>, but no notification e-mail A.
Page 23
Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
