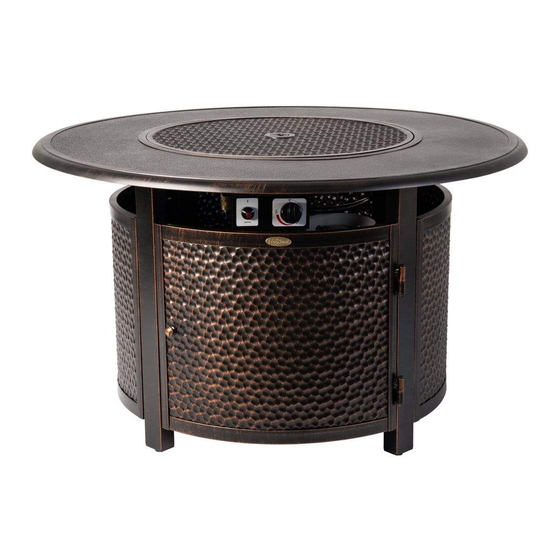

Weyland Round Aluminum LPG Fire Pit
Conforms to ANSI STD Z21.97-2014,
Certified to CSA STD 2.41-2014 Outdoor decorative gas appliances
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877, email us at cservice@welltraveled.net, or go online and
live chat at www.wtliving.com. Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday.
Item#: 62752
WARNING
FOR YOUR SAFETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could result in fire or explosion, which
could cause property damage, personal
injury, or death.
WARNING
For Outdoor Use Only
WARNING
This product can expose you to chemicals
including Carbon Monoxide, Lead, Chromium
(hexavalent compounds), Di(2-
ethylhexyl)phthalate (DEHP) and Diisononyl
phthalate (DINP), which are known to the State of
California to cause cancer and birth defects or
other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
Manual updated Jan 2019 | Code ZDMF
Advertisement
Table of Contents
Related Manuals for Fire Sense Weyland Round Aluminum
Summary of Contents for Fire Sense Weyland Round Aluminum
- Page 1 Weyland Round Aluminum LPG Fire Pit Item#: 62752 WARNING FOR YOUR SAFETY 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 2: Table Of Contents
www.wtliving.com TABLE OF CONTENTS Table of Contents Page 2 Page 2 Before You Begin Package Contents Page 3 Safety Information Page 4 Assembly Pages 5-8 Operating Instructions Pages 9-12 Conversion to Natural Gas Pages 13-15 Care and Maintenance Page 16 Troubleshooting Page 17 Warranty Information... -
Page 3: Package Contents
Remo va ble Burner Cover Burner Table Top Door Panel Panels Door Frame Leg Support Legs Tank Support Bar Tank Support Ring Protective Cover Fire Glass Stud (6x40mm) Washer/Spring Washer (M8) Spring Washer (M6) Bolt (8x20mm) Bolt (6x20mm) Washer (M6) Qty: 13 Qty: 5 Qty: 5... -
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD • Keep solid combustibles, such as building If you smell gas: complies with the ANSI Z21.97-2014, Outdoor Decorative Gas Appliances CGA CR 97-003 materials, paper, or cardboard a safe distance 1. -
Page 5: Assembly Pages
ASSEMBLY PREPARATION Before beginning assembly, empty contents of carton and make sure all parts are present. Place all parts on a soft, level surface for assembly. NOTE: It is best to use TWO PEOPLE to assemble this gas fire pit. Estimated Assembly Time: 60 Minutes | DO NOT over tighten hardware! Assemble the fire pit base: Locate Door Panel D, 3 Side Panels E, Side Panel... - Page 6 ASSEMBLY Attach Tank Support Ring J to Tank Support Bar I by aligning holes in the center of Tank Support Bar with holes in the end of Tank Support Ring. Place a Washer Q on each of 2 Bolts P and insert into holes.
- Page 7 ASSEMBLY Burner Control facing left side of When all panels and the tank support have been secured, turn door opening the table upright. Place the Burner B into the hole in the Table Top, rotated toward the left side of the table. WARNING: This fire pit is constructed of aluminum, a relatively soft, flexible metal.
- Page 8 ASSEMBLY Connect hose and regulator to cylinder. (The propane gas and cylinder are sold separately.) Use a standard 20lb propane cylinder only. Use this fire pit only with a propane vapor withdrawal supply system. See chapter 5 of the standard storage and handling of liquefied petroleum gas, ANSI/NFPA 58.
-
Page 9: Operating Instructions Pages
OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. - Page 10 OPERATING INSTRUCTIONS LEAK CHECK WARNING! • Perform all leak tests outdoors. • Extinguish all open flames • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder Connection...
- Page 11 OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Never lean over the fire pit while in use. Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or burner all assembly is complete and leak...
- Page 12 OPERATING INSTRUCTIONS OPERATION CHECKlIST : WARNING For a safe and pleasant heating experience, perform this check before each use: FOR YOUR SAFETY Be careful when attempting to bEFORE OPERATING: manually ignite this fire pit. Holding in I am familiar with entire owner’s manual and understand all precautions the control knob for more than 10 seconds before igniting the gas will noted.
-
Page 13: Conversion To Natural Gas Pages
CONVERSION TO NATURAL GAS WARNING Make sure all control knobs and cylinder valves are in OFF position before converting. tanks and their use are covered elsewhere in this manual). If a Natural Gas connection is available, the user may wish to change the gas delivery system to the more permanent Natural Gas Supply. - Page 14 CONVERSION TO NATURAL GAS WARNING! To avoid the possibility of burns conversion should only be done when the fire pit is completely cool. Ensure burner is turned off. Turn gas off at source and disconnect the appliance before beginning conversion. WARNING! Fire Glass may have sharp edges.
- Page 15 CONVERSION TO NATURAL GAS Natural Gas Hook-Up The gas appliance is designed to operate at an inlet pressure of 7 inches water column. The piping up to the appliance is the end of the inlet valve. Tighten using two wrenches. (Do not use thread sealer/pipe dope.) Leak test all joints prior to using the installed in an upward direction and a readily accessible manual shut-off valve must be installed upstream of, and as close to, the quick disconnect as is feasible.
-
Page 16: Care And Maintenance
CARE & MAINTENANCE STORAGE: Between uses: perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. cleaning agents. from direct contact with 2. While cleaning your unit, be sure to keep the area around the burner and inclement weather (such control compartment dry at all times. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder... -
Page 18: Warranty Information
716 S 8th Street, Amelia Island, FL 32034 online and live chat at www.wtliving.com. wtliving.com | cservice@welltraveled.net Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday. (866) 985-7877 Fire Sense ® , Mojave Sun ® , Vulcan ®...
