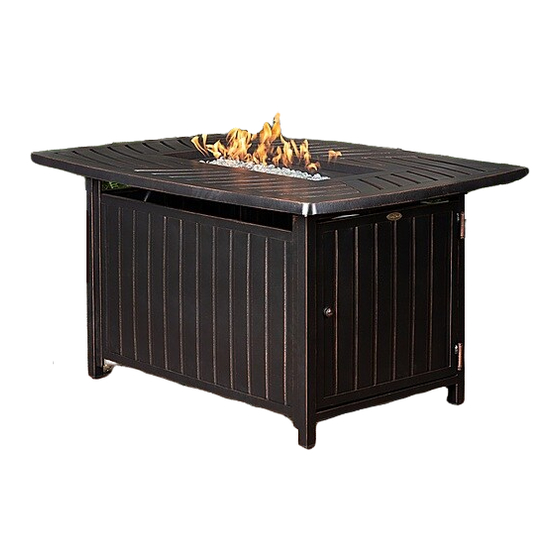

Bravos Rectangular Aluminum LPG Fire Pit
INSTALLATION PRECAUTION:
This fire pit requires a minimum 18 inches of cross
ventilation in all directions. Failure to provide proper
ventilation can void the warranty.
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877, email us at cservice@welltraveled.net, or go online
and live chat at www.wtliving.com. Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday
Item#: 62975
WARNING
FOR YOUR SAFETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could cause property damage, personal
injury, or death.
WARNING
For Outdoor Use Only
WARNING
This product can expose you to chemicals including
Carbon Monoxide, Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP)
and Diisononyl phthalate (DINP), which are known
to the State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
Manual updated Feb 2019
