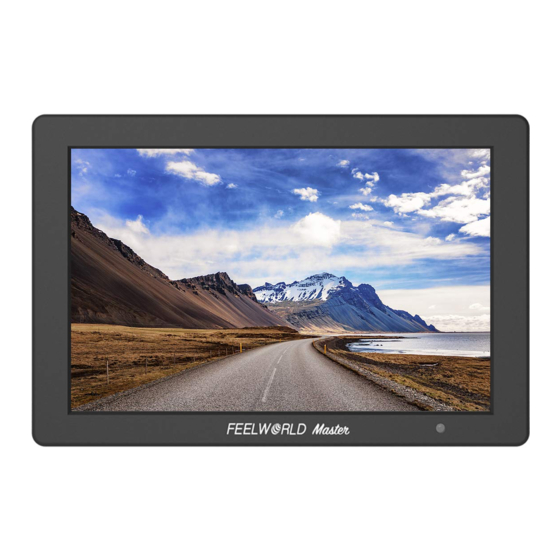

- Page 1 7" Full HD On-camera Monitor Support 4K HDMI Input/ Output Guide Manual Thank you for choosing Feelworld monitor. Please read this manual carefully before you use.
-
Page 3: Table Of Contents
Contents Caring For Your MA7 Monitor What Should Be In The Box Product Description Button Instruction Port Instruction (Bottom) Port Instruction (Left) Sunshade Battery Plate Menu Operation Instruction Menu Function Instruction Technical Parameters Trouble Shooting... -
Page 5: Caring For Your Ma7 Monitor
CARING FOR YOUR MA7 MONITOR Caring For Your MA7 Monitor • Do not attempt to disassemble the monitor. Doing so voids warranty. • Water damage is not covered by warranty, but taking the right precautions when a water event occurs can sometimes preserve unit functionality. -
Page 6: What Should Be In The Box
WHAT SHOULD BE IN THE BOX What Should Be In The Box • MA7 Monitor • HDMI to Mini HDMI Cable • HDMI to Micro HDMI Cable • Cold Shoe Mount • F970 Battery Plate • Carrying bag • Sunshade •... -
Page 7: Product Description
PRODUCT DESCRIPTION Product Description • Front Panel • Back Panel... -
Page 8: Button Instruction
PRODUCT DESCRIPTION • Button Instruction Function when OSD is not Button Function when OSD is displayed displayed Custom button 1 Custom button 2 Volume reduction Value adjustment of selected item Volume increase Value adjustment of selected item MENU OSD Main menu display Back to previous OSD menu Item selection of next menu Item selection of previous menu... -
Page 9: Port Instruction (Bottom)
PRODUCT DESCRIPTION • Port Instruction (Bottom) USB UPGRADE: Firmware USB upgrade port • Port Instruction (Left) : 3.5mm Earphone port output HDMI OUT: HDMI signal output HDMI IN: HDMI signal input DC12V: DC power input interface, as the input polarity... -
Page 10: Sunshade
PRODUCT DESCRIPTION • Sunshade ① Sunshade ② Sunshade Frame ③ Fixed Frame ④ Sunshade Application First open the Sunshade Frame ① , and match the sticker on the sunshade inside to the marked part of the sunshade frame ② , smooth and press 3 sides on the sunshade ③ , and then complete the sunshade installation ④... -
Page 11: Battery Plate
PRODUCT DESCRIPTION • Battery Plate There is a battery plate on the back of the monitor, a corresponding battery needs to be installed to power the monitor. We offer several portable powering options to help our customers reduce the amount of charging equipment that is plugged in the set. - Page 12 PRODUCT DESCRIPTION Battery Plate Model Picture Battery Camera Model F970 for F970 F960 F950 F930 F770 F750 F730 F570 Sony DV F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 series LP-E6 for LP-E6 Canon DV D28S for D55 554S D54SE D40 Panasonic DV...
- Page 13 PRODUCT DESCRIPTION Remark: Different specifications of the battery result in different capability and working time. Please remove the battery from the monitor if you don’t use it for a long time. CAUTION: RISK OF EXPLOSION IF AN INCORRECT BATTERY IS REPLACED. PLEASE DISPOSE USED BATTERIES ACCORDING TO INSTRUCTIONS.
-
Page 14: Menu Operation Instruction
MENU OPERATION INSTRUCTION Menu Operation Instruction After correctly connect to the power supply or battery, the indicator will be in Red. Then switch on the monitor, it will become Yellow. Input HDMI signals, it will turn Green. • Press “MENU” button to enter OSD main menu, and press “ ”... -
Page 15: Menu Function Instruction
MENU FUNCTION INSTRUCTION Menu Function Instruction • Image Pic. Mode Standard, Mild, User, Dynamic Brightness 0~100 Contrast 10~100 Image Saturation 0~100 Sharpness 0~100 Color Temp 6500, 9300, User Tint 0~100... - Page 16 MENU FUNCTION INSTRUCTION • Setting English, 简体中文 , Español, Português, Language Français, Nederlands, Deutsch, 日本語 , 繁體中文 Aspect Ratio Auto., 4:3, 16:9, Just Scan, Panorama, P2P White Screen, Blue Screen, Red Screen, No Signal Green Screen, Black Screen OSD Trans. Off, Low, Middle, High OSD H 0~100...
- Page 17 MENU FUNCTION INSTRUCTION • Zoom Nine Grid Zoom Off, On Zoom Off, 4X, 9X, 16X Zoom Off, Mode1, Mode2 (Zoom All, L/R Zoom Zoom Mode and U/D Zoom can be customized) Scan Mode Under Scan, Over Scan...
- Page 18 MENU FUNCTION INSTRUCTION • Function Center Marker Off, On Safe Frames Off, 96%, 93%, 90%, 85%, 80%, 2.35:1 Nine Grid Off, On Image Freeze Off, On Image Flip Off, H_V Flip, H Flip, V Flip OSD Flip Off, On Anamorphic Off, 1.3X, 2.0X, 2.0X MAG, User Anamorphic nX 1.20X~2.00X Function...
- Page 19 MENU FUNCTION INSTRUCTION Embedded Audio Off, On Off, 4:3, 13:9, 14:9, 15:9, 16:9, Ratio Marker 1.85:1, 2.35:1 Function Mark Color Red, Green, Blue, Black, White Mark Width 1 ～ 7 Modified Mark 0 ～ 6 • Custom Button Setting F1~F2 ★...
-
Page 20: Technical Parameters
TECHNICAL PARAMETERS Technical Parameters Panel Size 7.0 inch Resolution 1920×1200 pixels Dot Pitch 0.07875 (W) x 0.07875 (H)mm Aspect Ratio 16:10 Brightness 450cd/m Contrast 1200:1 Viewing Angle 80°/80° (L/R) 80°/80° (U/D) Backlight Input HDMI output HDMI Audio 3.5mm Stereo Headphone... - Page 21 TECHNICAL PARAMETERS 480i/480p/576i/576p 720p (60/59.94/50/30/29/25/24/23.98) 1080i (60/59.94/50) HDMI Input / Output 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98 Support Format /23.9sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz) 4096×2160p (24Hz) Input Voltage DC7~24V Power Consumption ≦ 8W Unit Size (mm) 180Lx120Hx18D (mm) Unit Weight 320g/350g (With F970 Battery Plate) Installation Method 1/4-20 thread points (top, bottom) Working Tem.
-
Page 22: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting • Only black and white or monochrome picture display: ① Please check if Saturation, Brightness and Contrast are properly setup or not. ② Please check if "Check Field" is in Black and White or other monochrome image condition. •... - Page 23 TROUBLE SHOOTING ② Check the HDMI input and ensure there is HDMI signal. ■ If you have more questions, please contact Feelworld at support@feelworld.cn ★ As we are improving product features and product performance, so if there is any change on the specification...
