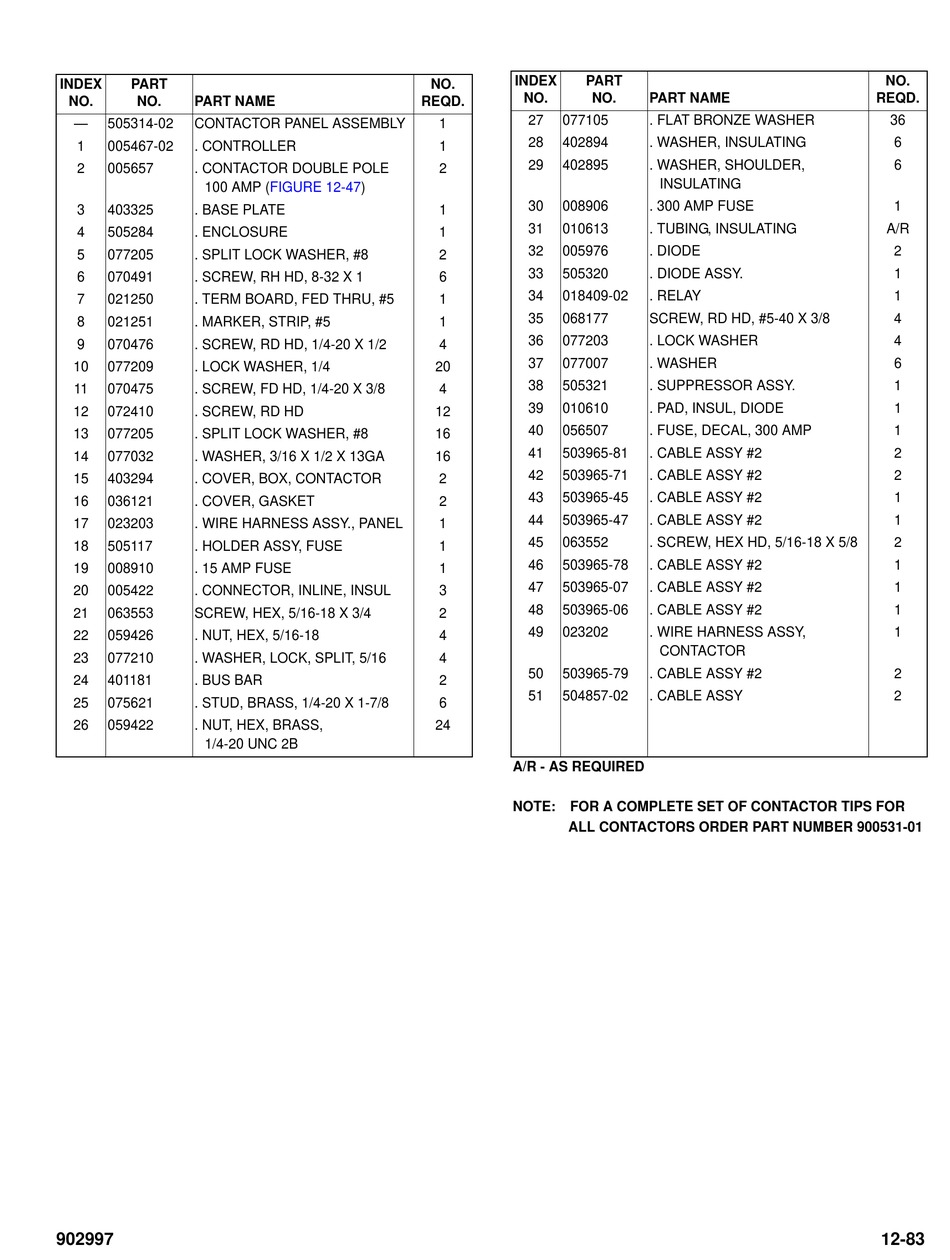

Big Lift Big Joe PDC Series Operation, Maintenance, Repair Parts List page 187


INDEX PART
NO. NO. PART NAME
— 505314-02 CONTACTOR PANEL ASSEMBLY
1 005467-02 . CONTROLLER
. CONTACTOR DOUBLE POLE 
2 005657
100 AMP
3 403325 . BASE PLATE
4 505284 . ENCLOSURE
5 077205 . SPLIT LOCK WASHER, #8
6 070491 . SCREW, RH HD, 8-32 X 1
7 021250 . TERM BOARD, FED THRU, #5
8 021251 . MARKER, STRIP, #5
9 070476 . SCREW, RD HD, 1/4-20 X 1/2
10 077209 . LOCK WASHER, 1/4
11 070475 . SCREW, FD HD, 1/4-20 X 3/8
12 072410 . SCREW, RD HD
13 077205 . SPLIT LOCK WASHER, #8
14 077032 . WASHER, 3/16 X 1/2 X 13GA
15 403294 . COVER, BOX, CONTACTOR
16 036121 . COVER, GASKET
17 023203 . WIRE HARNESS ASSY., PANEL
18 505117 . HOLDER ASSY, FUSE
19 008910 . 15 AMP FUSE
20 005422 . CONNECTOR, INLINE, INSUL
21 063553 SCREW, HEX, 5/16-18 X 3/4
22 059426 . NUT, HEX, 5/16-18
23 077210 . WASHER, LOCK, SPLIT, 5/16
24 401181 . BUS BAR
25 075621 . STUD, BRASS, 1/4-20 X 1-7/8
. NUT, HEX, BRASS, 
26 059422
1/4-20 UNC 2B
902997
NO.
REQD.
1
1
2
(FIGURE 12-47)
1
1
2
6
1
1
4
20
4
12
16
16
2
2
1
1
1
3
2
4
4
2
6
24

INDEX PART
NO. NO. PART NAME
27 077105 . FLAT BRONZE WASHER
28 402894 . WASHER, INSULATING
. WASHER, SHOULDER, 
29 402895
INSULATING
30 008906 . 300 AMP FUSE
31 010613 . TUBING, INSULATING
32 005976 . DIODE
33 505320 . DIODE ASSY.
34 018409-02 . RELAY
35 068177 SCREW, RD HD, #5-40 X 3/8
36 077203 . LOCK WASHER
37 077007 . WASHER
38 505321 . SUPPRESSOR ASSY.
39 010610 . PAD, INSUL, DIODE
40 056507 . FUSE, DECAL, 300 AMP
41 503965-81 . CABLE ASSY #2
42 503965-71 . CABLE ASSY #2
43 503965-45 . CABLE ASSY #2
44 503965-47 . CABLE ASSY #2
45 063552 . SCREW, HEX HD, 5/16-18 X 5/8
46 503965-78 . CABLE ASSY #2
47 503965-07 . CABLE ASSY #2
48 503965-06 . CABLE ASSY #2
. WIRE HARNESS ASSY, 
49 023202
CONTACTOR
50 503965-79 . CABLE ASSY #2
51 504857-02 . CABLE ASSY
A/R - AS REQUIRED
NOTE: FOR A COMPLETE SET OF CONTACTOR TIPS FOR
ALL CONTACTORS ORDER PART NUMBER 900531-01
NO.
REQD.
36
6
6
1
A/R
2
1
1
4
4
6
1
1
1
2
2
1
1
2
1
1
1
1
2
2
12-83
