Using the EVM Software

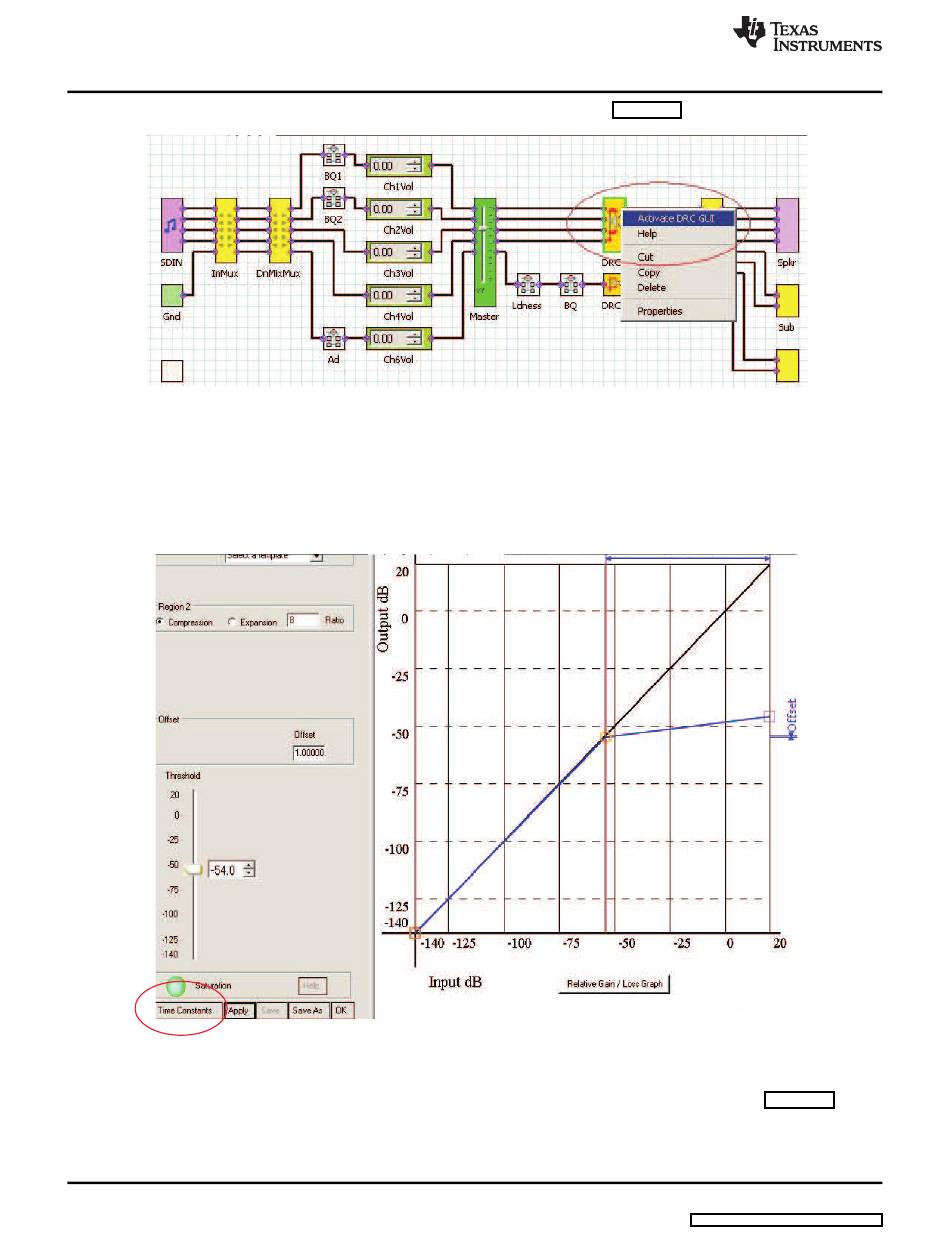

Next, using the right button of the mouse, select Activate DRC GUI
Set the compression ratio to a value between 1 and 50.
The offset has a range of ±6 dB. A value of 0 is illegal. If no offset is required, set the offset to 0. Offset is
generally not required in a DRC application because is just provides a gain.
Threshold is selected with a value of 0 to –72 dB.
Time constants: Select the time constants to adjust the energy, attack, and decay filters
14 TAS5706EVM2
Figure 13. Activating the DRC GUI
Figure 14. Time Constants Button
(Figure 13).
(Figure
SLOU220 – September 2008
Submit Documentation Feedback
www.ti.com
14).
