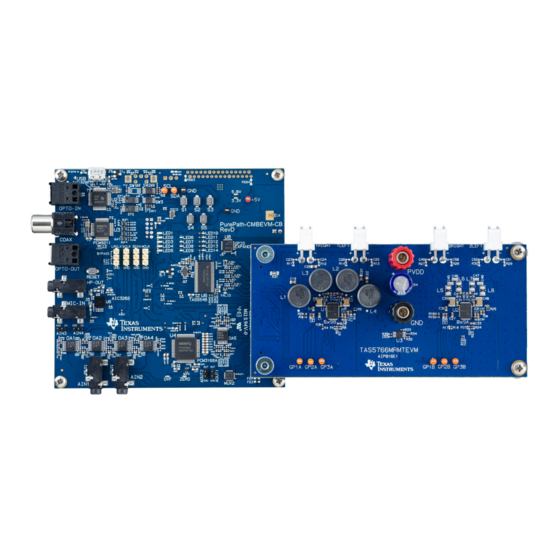

This user's guide describes the operation of the TAS5766MRMTEVM. The TAS5766MRMTEVM is
connected to the PurePath™ Console Motherboard (PPCMB). For questions and support go to the E2E
forums (e2e.ti.com). The main contents of this document are:
•
Hardware descriptions and implementation
•
Start up procedure using PurePath Console (PPC) software with TAS5766M plug-in
Related documents:
•
TAS5766M Data Sheet (SLAS965)
•
PurePath Console Motherboard User's Guide (SLOU366)
•
PurePath Graphic Development Suite
1
1.1
1.2
1.3
2
2.1
TAS5766MRMTEVM Setup
2.2
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
4.3
1
2
3
4
5
6
7
8
9
2
10
11
Device Registers Tab
12
13
SLOU387 - June 2014
(PurePath
..........................................................................................................
....................................................................................
...................................................................................
................................................................................................
.......................................................................................
................................................................................................
...............................................................................................
...................................................................................
...................................................................................................
............................................................................................
2
.............................................................................................
....................................................................................................
................................................................................
........................................................................................
..............................................................................................................
.........................................................................................................
...............................................................................................................
........................................................................................
.................................................................................................
...............................................................................................
........................................................................................................
...........................................................................................................
......................................................................................................
...................................................................................
Copyright © 2014, Texas Instruments Incorporated
TAS5766MRMTEVM
Console)
Contents
......................................................................
...................................................
......................................................................
...........................................................................
List of Figures
..........................................................................
.......................................................................
User's Guide
SLOU387 - June 2014
2
2
3
3
4
4
5
6
6
7
8
10
10
11
11
13
14
2
3
4
5
5
6
7
8
9
10
10
11
11
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TAS5766MRMTEVM
Summary of Contents for Texas Instruments TAS5766MRMTEVM
-
Page 1: Table Of Contents
SLOU387 – June 2014 TAS5766MRMTEVM This user’s guide describes the operation of the TAS5766MRMTEVM. The TAS5766MRMTEVM is connected to the PurePath™ Console Motherboard (PPCMB). For questions and support go to the E2E forums (e2e.ti.com). The main contents of this document are: •... -
Page 2: Hardware Overview
TAS5766MRMT is an I2S or TDM input class D amplifier with PurePath Smart Amp. The EVM is used in conjunction with the PurePath Console Motherboard (PPCMB). The PVDD supply is provided via the TAS5766MRMTEVM and is regulated to 5 VDC and 3.3 VDC on the PPCMB. The PPCMB provides the I2S, I2C and 3.3 VDC to the TAS5766MRMTEVM. -
Page 3: Tas5766Mrmtevm Functions
TAS5766M. Upon PPC execution and connection, the TAS5766M is put in software mode. The digital audio data input to the TAS5766MRMTEVM is sent from PPCMB and is selectable from USB audio, optical SPDIF, coaxial SPDIF, and analog ADC sources. When a digital audio data input is selected, the PPC automatically sends appropriate scripts to the device in use. -
Page 4: Tas5766Mrmtevm Setup
• Connect the PPCMB to the TAS5766MRMTEVM • Connect the PSU to TAS5766MRMTEVM and turn on the power. 5-V and 3.3-V LEDs are illuminated. • If an optical SPDIF source is used, the blue SPDIF clock-locked LED is illuminated •... -
Page 5: Software Installation
Execute the GUI installation program, Setup_PurePathConsole_Main_vxx_revxx.exe. Once the program is installed, the program group and shortcut icon is created in Start → Program → Texas Instruments Inc → PurePath Console → Choose Target. The Target Selection window is displayed; select TAS5766 -... -
Page 6: Using The Purepath Console With The Tas5766Mrmtevm Board
On the PPC, the green LED on the bottom left corner is on Using the PurePath Console with the TAS5766MRMTEVM Board The TAS5766MRMTEVM is initialized upon PurePath Console startup. Audio is streaming to the speakers if Windows Media (or similar program) is playing and USB-AudioEVM is selected in the sound playback properties. -
Page 7: Tas5766M Block Diagram Tab
Using the PurePath Console with the TAS5766MRMTEVM Board www.ti.com TAS5766M Block Diagram Tab Figure 7 illustrates the TAS5766M Block Diagram tab, showing the device major blocks. Some of the blocks are selectable. When a block is selected (double click), it shows pop-up settings for the particular setting. -
Page 8: Pop-Up Windows
Using the PurePath Console with the TAS5766MRMTEVM Board www.ti.com Pop-Up Windows For TAS5766M, there are several settings that are done via I2C. The GUI facilitates these settings seamlessly using the pop-up windows seen in Figure 8 Figure Figure 8. Smart Amplifier GUI Pop-Up TAS5766MRMTEVM SLOU387 –... -
Page 9: Biquad Block Pop-Up
Using the PurePath Console with the TAS5766MRMTEVM Board www.ti.com Figure 9. Biquad Block Pop-up SLOU387 – June 2014 TAS5766MRMTEVM Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 10: Direct I 2 C Access Tab
Using the PurePath Console with the TAS5766MRMTEVM Board www.ti.com Direct I C Access Tab C registers read and write can be performed on this tab (see Figure 10). Type in the device I C address and click Set. On the Direct I... -
Page 11: Board Layouts, Bill Of Materials, And Schematics
TAS5766MRMTEVM Board Layouts Figure 12 through Figure 14 illustrate the board layouts for the EVM. Figure 12. TAS5766MRMTEVM Top Composite Assembly Figure 13. TAS5766MRMTEVM Copper Layer 2 Figure 14. TAS5766MRMTEVM Copper Layer 3 SLOU387 – June 2014 TAS5766MRMTEVM Submit Documentation Feedback... - Page 12 Board Layouts, Bill of Materials, and Schematics www.ti.com Figure 15. TAS5766MRMT Bottom Copper TAS5766MRMTEVM SLOU387 – June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 13: Bill Of Materials
Board Layouts, Bill of Materials, and Schematics www.ti.com Bill of Materials Table 1 displays the BOM for this EVM. Table 1. TAS5766MRMTEVM Bill of Materials Item MFR Part Num Ref Designators Description TAS5766MRMT TEXAS INSTRUMENTS U1, U2 2x50W/4 OHM PURE PATH SMART AMP QFN48-RMT ROHS... -
Page 14: Tas5766Mrmtevm Schematic
PVDD 0.22ufd/50V INPUT OUT1L+ 4.7uH/5.1A 1.0uF/50V CONNECTOR 1.0uF/50V 1.0uF/50V 4.7uF/50V 0.47ufd/100V 0.01uF/50V 1.0uF/50V 1.0uF/50V ADDR=0x98 +3.3V 1.0uF/50V 10.0k Figure 16. TAS5766MRMTEVM Schematic (Page 1 of 3) TAS5766MRMTEVM SLOU387 – June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 15 INPUT OUT2L+ 100k 1.0uF/50V 1.0uF/50V 4.7uF/50V 30ohms/6A CONNECTOR 1.0uF/50V 1000pF/50V 0.01uF/50V 100k 1.0uF/50V 1.0uF/50V ADDR=0x9A +3.3V 1.0uF/50V 10.0k Figure 17. TAS5766MRMTEVM Schematic (Page 2 of 3) SLOU387 – June 2014 TAS5766MRMTEVM Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 16 (CCB-GPIO9) GPIO2A GPIO1B GPIO2B TAS5766MRMT (CCB-GPIO10) R-GND LRCLK MAIN POWER IN LRCLK PVDD PVDD L-GND GPIO3A 470ufd/50V GPIO3B Figure 18. TAS5766MRMTEVM Schematic (Page 3 of 3) TAS5766MRMTEVM SLOU387 – June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
