The TAS5411-Q1 evaluation module (EVM) is intended to demonstrate the capabilities of the TAS5411-
Q1 device. All the device features can be accessed through the hardware and the software graphical user
interface (GUI) which is supplied. This user's guide contains a description of the EVM and the GUI. The
schematic, bill of materials (BOM), and board layout are included.
1
Hardware Overview
The TAS5411EVM showcases TI's TAS5411-Q1 analog input class-D closed-loop mono amplifier. The
EVM is usable as stand-alone platform with default I
register settings. The EVM can also work with a USB2IIC-2 board and TAS5421-Q1 GUI for programming
2
the I
C register settings.
SLOU431 – November 2015
Submit Documentation Feedback
TAS5411EVM User's Guide
2
C register settings. The EVM runs in default I

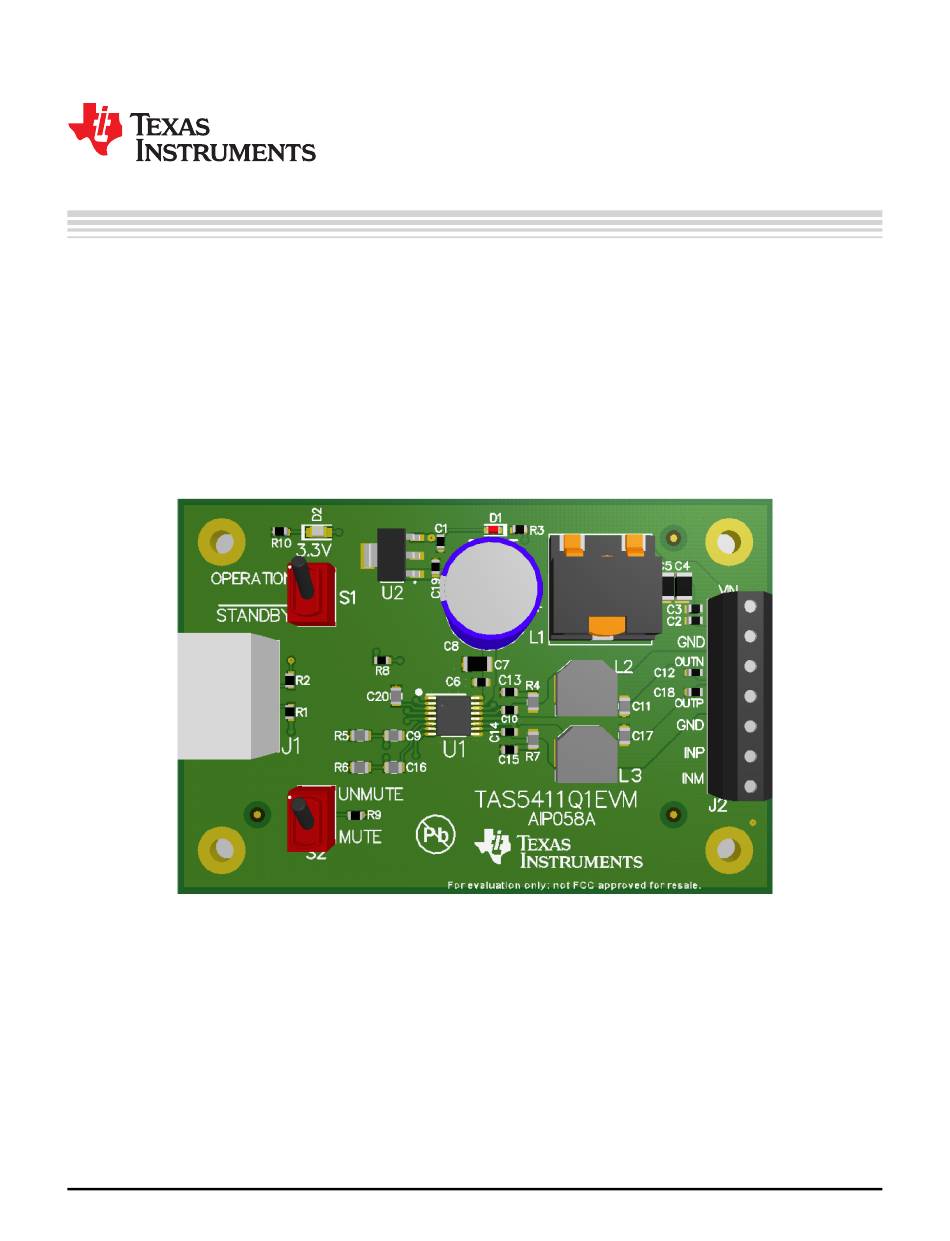

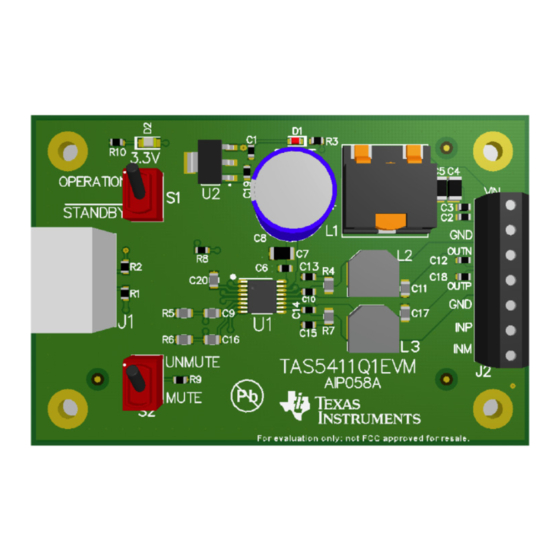

Figure 1. TAS5411EVM
Copyright © 2015, Texas Instruments Incorporated
User's Guide
SLOU431 – November 2015
2
C
TAS5411EVM User's Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAS5411EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TAS5411EVM

Summary of Contents for Texas Instruments TAS5411EVM

  • Page 1 (BOM), and board layout are included. Hardware Overview The TAS5411EVM showcases TI's TAS5411-Q1 analog input class-D closed-loop mono amplifier. The EVM is usable as stand-alone platform with default I C register settings. The EVM runs in default I register settings.
  • Page 2 Set gain to 20 dB. — — — — — — Set gain to 32 dB. — — — — — — Set gain to 36 dB. TAS5411EVM User's Guide SLOU431 – November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 3 The audio input: Pin 2 (+) and Pin 1 (-) to input source • Leave Pin 3 unconnected or connect it to ground. 4. Connect the PSU to the TAS5411EVM and turn on the power. The 3.3-V LED (D1 on the EVM board) lights (see Figure 5.

  • Page 4: Software Installation

    C device address for the TAS5411-Q1 device is D8. Green USB and I C LEDs show that USB is connected and I C communication is valid. A003 Figure 4. GUI Image at Start-Up TAS5411EVM User's Guide SLOU431 – November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 5 Using the GUI With the TAS5411EVM Board The TAS5411EVM does not need initialization. On powering up, the device performs load diagnostics. If there is no problem, the device transitions to play mode with the following default values are set: •...
  • Page 6 Using the GUI With the TAS5411EVM Board www.ti.com Checking the Status Register Figure 6 shows the status register. Click on Status-Diag (Read-Only) (0x02), shown in Figure 6 (blue boxes for illustration only, not shown on GUI) and the register detail appears in the middle box.
  • Page 7 Using the GUI With the TAS5411EVM Board www.ti.com Read and I C Log The I C log displays I C registers read data (see Figure 8). An option exists for reading the three registers all at once or individually. Pressing the Read Faults button displays the fault register value on the I C log as well.
  • Page 8 Board Layouts, Bill of Materials, and Schematic TAS5411EVM Board Layouts Figure 10 Figure 11 show the board layouts for the EVM. Figure 10. TAS5411EVM Top View Figure 11. TAS5411EVM Bottom View TAS5411EVM User's Guide SLOU431 – November 2015 Submit Documentation Feedback...
  • Page 9 S1, S2 Switch, SPDT, On-On, 2 Pos, TAS5411QPWPRQ1 Texas Instruments 10-W mono automotive digital amplifier with diagnostics, PWP0016A UA78M33CDCY Texas Instruments Positive voltage regulator, DCY0004A SLOU431 – November 2015 TAS5411EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 10 Board Layouts, Bill of Materials, and Schematic www.ti.com TAS5411EVM Schematic Figure 12 shows the TAS5411EVM schematic. Figure 12. TAS5411EVM Schematic TAS5411EVM User's Guide SLOU431 – November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
