Wall-Mounted Installation For Ac Series - Draytek Vigor2766 Series Quick Start Manual

3 . 3 W a l l - M o u
3 . 3 W a l l - M o u

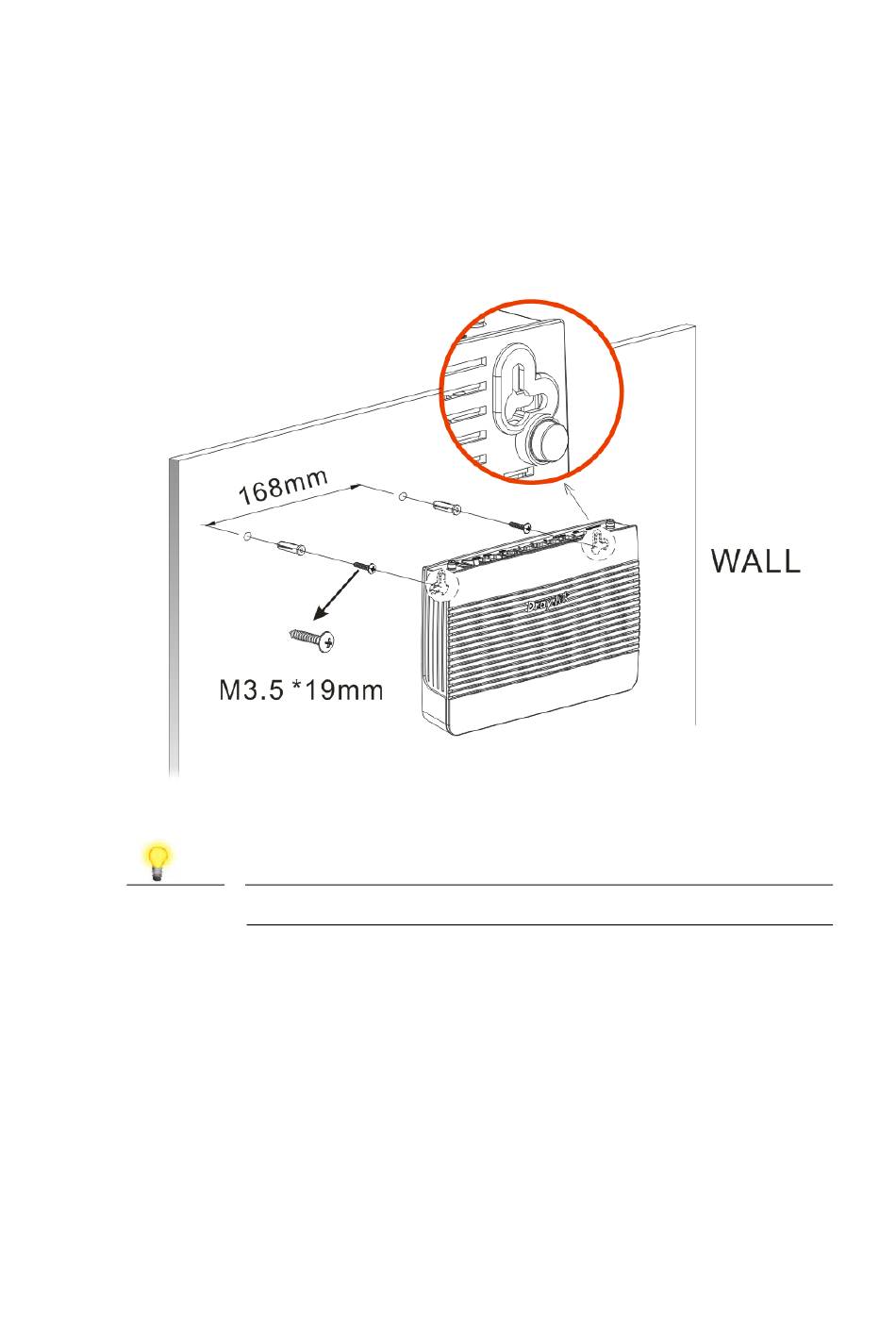

Vigor router has keyhole type mounting slots on the underside.
1. Drill two holes on the wall. The distance between the holes shall be 168mm.
2. Fit screws into the wall using the appropriate type of wall plug.
3. With the screws installed, the router can be slotted into place.
Note
4. When you finished about procedure, the router has been mounted on the
wall firmly.
n t e d I n s t a l l a t
n t e d I n s t a l l a
The recommended drill diameter shall be 6.5mm (1/4").
