M2 Antenna Systems 450-800-12 Assembly Manual

SPECIFICATIONS:

Model ......................................... 450-800-12
Frequency Range ....................... 390 To 650 MHz
*Gain .......................................... 12 To 13 dBi
Front to back .............................. 20 dB Nominal
Beamwidth ............................... 46° Nominal
Feed Impedance. ....................... 50 Ohms
Maximum VSWR ........................ 1.5:1
FEATURES:
The M2 450-800-12 Helix antenna offers performance characteristics for specialized fixed and rapid deploy oper-
ations within the 400 to 600 MHz band. It is perfect for either terrestrial or satellite applications. The antenna is supplied
with a manually adjustable Azimuth / Elevation mount and a counter weight. The antenna is shipped with the helix assem-
bled less ground plane. Finishes are optional. The steel adjustable mounting fixture and counterweight are zinc plated.
Optional arrays of 2 or more are available. Other frequency ranges and gains are also available down to 100 MHz. Com-
plete motorized, computer controlled AZ-EL systems are also manufactured by M2.
Where circular polarity is not required but high bandwidth is, M2 offers a line of various log periodic antennas from 5 to
1300 MHz. If it is antenna related, we probably have made it. Call us with your requirements.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No:
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incorporated

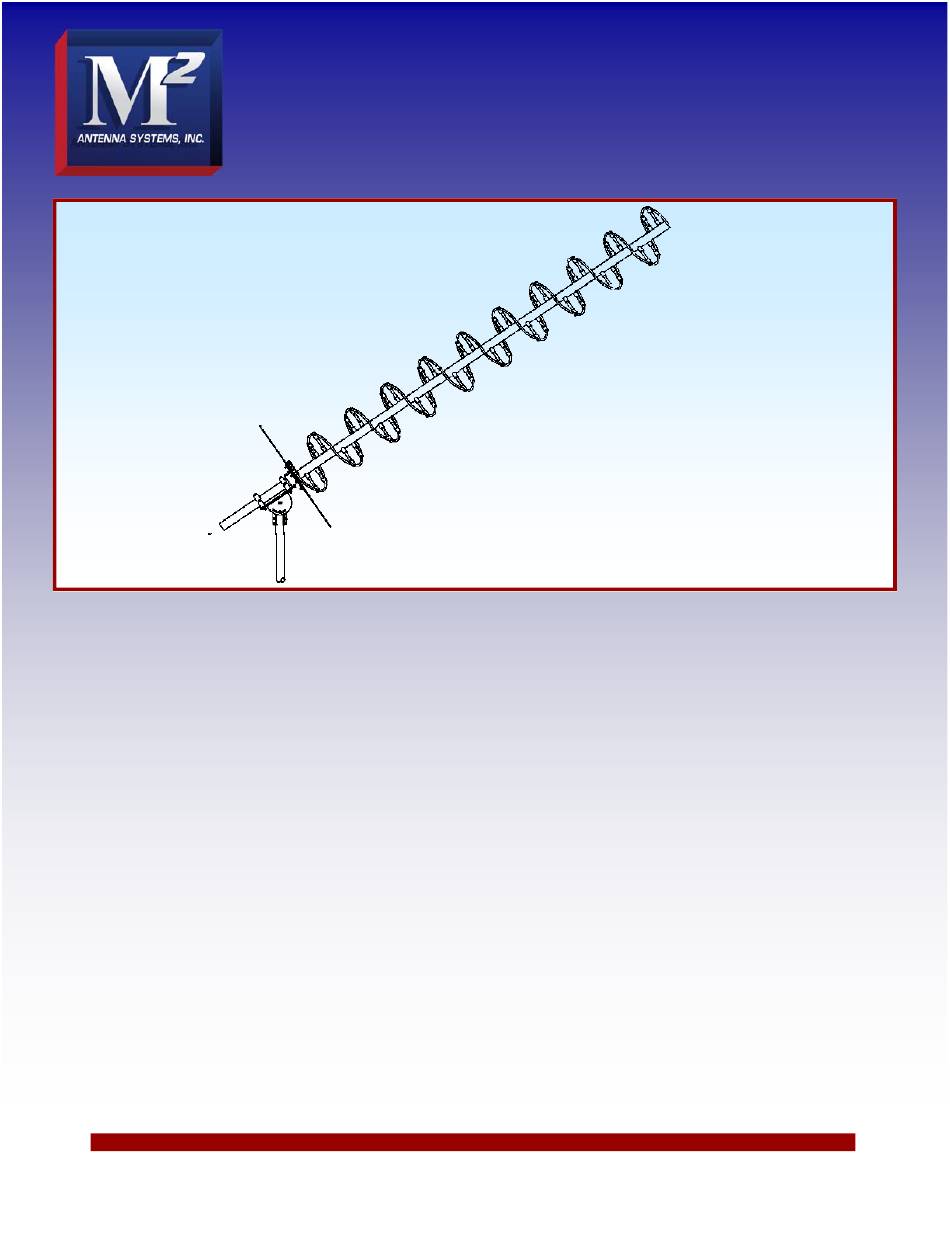

450-800-12 HELICAL ANTENNA
Input Connector .......................... "N" Female
Power Handling .......................... 1 kW
Polarity ........................................ RHCP or LHCP
Mounting ..................................... Adjustable AZ-EL on 2"
Operating Temperature .............. -50 F To 130 F
Wind area / Survival ................... 100 MPH
Weight / Ship Wt. ........................ 35 Lbs.
12/15/15
Rev.01
