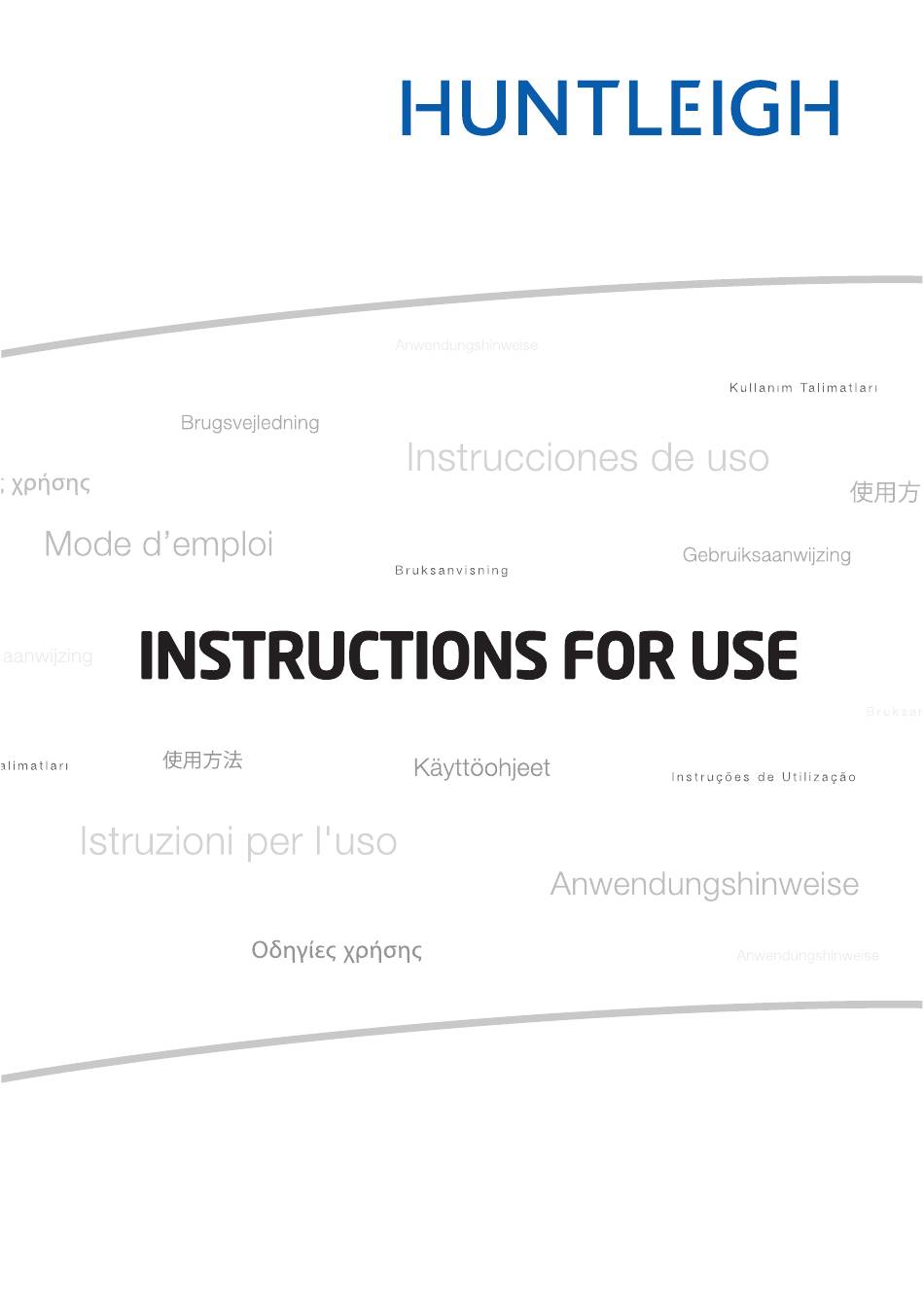

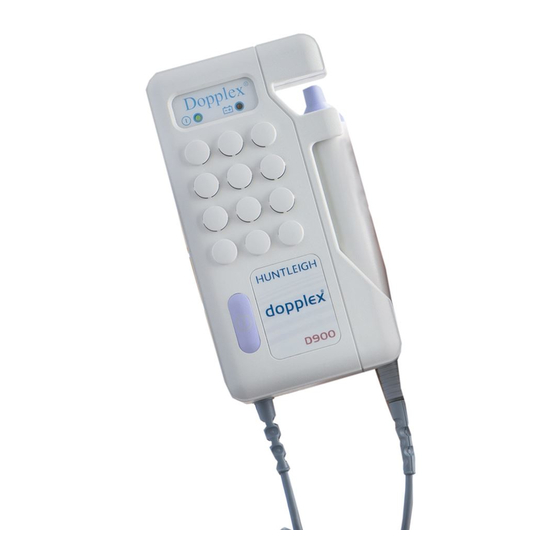

- Page 1 D900 HIGH SENSITIVITY POCKET DOPPLERS...
-
Page 2: Table Of Contents
Table of Contents Doppler Measurement Sites and Recommended Probes ... 3 1. Safety ................4 Warnings .................... 4 Patient Applied Parts ................ 5 Indications for Use ................5 Positioning ..................5 2. Introduction ..............6 Unpacking / Preliminary Checks ............. 6 Battery Insertion / Relacement ............ -
Page 3: Doppler Measurement Sites And Recommended Probes
17 Popliteal Artery VP8XS, EZ8XS VP5XS 8 Vertebral Artery 18 Metatarsal Artery VP4XS, VP5XS VP8XS, VP10XS, EZ8XS 9 Carotid Artery 19 Dorsalis Pedis Artery VP5XS, VP8XS, EZ8XS VP8XS, VP10XS, EZ8XS The D900 is compatible with HS and XS Doppler probes. -
Page 4: Safety
Safety Before using this equipment, please study this manual carefully and familiarise yourself with the controls, display features and operation. Ensure that each user fully understands the safety and operation of the unit, as mis-use may cause harm to the user or patient, or damage to the product. -
Page 5: Patient Applied Parts
As defi ned in IEC60601-1:2005, the patient applied parts of the Dopplex Dopplers are the ultrasound probes. Indications for Use The D900 ultrasonic Doppler is indicated for use by qualifi ed healthcare practitioners in primary, acute and community healthcare, for the assessment of vascular blood fl ow to assist diagnosis. -
Page 6: Introduction
Unpacking / Preliminary Checks Contents Delivery Inspection Huntleigh takes every precaution to ensure that goods reach you in perfect condition. However, accidental damage can occur in transit and storage. For this reason we recommend that a thorough visual inspection is made immediately the unit is received. -
Page 7: Product Controls
Product Controls Headphone Socket Waveform Socket LED Panel Loud-speaker On/Off Button Probe Holder Volume Control Cal Button Battery Compartment Pocket Clip... -
Page 8: Product Labelling
Product Labelling Applied parts (ultrasound probes) are type BF according to the defi nitions in IEC60601-1:2005 This symbol signifi es that this product, including its accessories and consumables is subject to the WEEE (Waste Electrical and Electronic Equipment) regulations and should be disposed of responsibly in accordance with local procedures. -
Page 9: Operation
Yellow LED - fl ashes when battery is low Coupling Gel Use water based ultrasound gel ONLY. Vascular Mode The D900 will select vascular mode when a vascular probe is connected to the control unit. Vascular Probes Five probes are available for vascular examinations: VP4XS 4MHz ±1% for deep lying vessels... -
Page 10: After Use
Adjust the audio volume as required. Waveform Recording - The D900 can be connected to a chart recorder by using a suitable lead that plugs into the Waveform socket. (For more information on the chart recorder, refer to the manufacturer’s handbook). -
Page 11: Care And Cleaning
Periodically, and whenever the integrity of the system is in doubt, carry out a check of all functions as described in the relevant section of the IFU. If there are any defects to the housing contact Huntleigh or your distributor for repair or to order a replacement. -
Page 12: General Cleaning And Disinfecting
General Cleaning and Disinfecting Always keep the external surfaces clean and free of dirt and fl uids using a clean dry cloth. Wipe any fl uids from the surface of the product using a clean dry cloth. Wipe with a cloth dampened in 70% Isopropyl Alcohol. Completely dry with a clean, dry lint free cloth. -
Page 13: Maintenance And Repair
Warning: Sodium Hypochlorite @ 10,000 ppm for disinfecting should only be used in situations described in the High Risk defi nition. Unnecessary use of this concentrated solution for Low and Medium risk situations may result in damage to the product. Do not allow Sodium Hypochlorite solutions to come into contact with metal parts. -
Page 14: Specifi Cations
Specifi cations Equipment Classifi cation Internally powered equipment Type of protection against electric shock. Degree of protection against electric shock Type BF - equipment with an applied part. Continuous Mode of operation. Hand Unit: IP20 * Degree of protection All other probes: IPX1 against harmful ingress of particles and/or water. -
Page 15: General
General 500mW rms typical Max. Audio Output (Loudspeaker) After 5 minutes continuous operation Auto shut-off Max. output Power: 25 mW rms (32Ω) Headphones Connector: 3.5mm stereo jack socket Max. applied voltage: +9Vdc Zero crosser, 0.5V/kHz, 3.5V full scale Waveform Output Cal levels: 1kHz + 2kHz, Max. -
Page 16: Electromagnetic Compatibility
WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the D900, including cables specifi ed by the manufacturer. Otherwise, degradation of the performance of this equipment could result. - Page 17 Guidance and Manufacturer’s declaration - electromagnetic immunity The Doppler is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the Doppler should assure that it is used in such an environment. Compliance Electromagnetic Environment - Immunity Test IEC 60601 test level level...
- Page 18 Guidance and Manufacturer’s declaration - electromagnetic immunity The Doppler is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the Doppler should assure that it is used in such an environment. Compliance Immunity Test IEC 60601 test level Electromagnetic Environment - guidance level...
- Page 19 Recommended separation distances between portable and mobile RF communications equipment and the Doppler The Doppler is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. the customer or user of the Doppler can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Doppler as recommended below, according to the maximum output power of the communications equipment.
-
Page 20: End Of Life Disposal
End of Life Disposal This symbol signifi es that this product, including its accessories and consumables is subject to the WEEE (Waste Electrical and Electronic Equipment) regulations and should be disposed of responsibly in accordance with local procedures. -
Page 21: Warranty & Service
Warranty & Service Huntleigh Healthcare Ltd. standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. Service Returns If for any reason Dopplex unit has to be returned, please: •... - Page 22 Manufactured in the UK by Huntleigh Healthcare Ltd. As part of the ongoing development programme the company reserves the right to modify specifi cations and materials without notice. Dopplex, and Huntleigh are registered trademarks of Huntleigh Technology Ltd. 2004. © Huntleigh Healthcare Ltd. 2004-2014...
- Page 23 Huntleigh Healthcare Ltd. 35 Portmanmoor Road, Cardiff, CF24 5HN, United Kingdom T: +44 (0)29 20485885 F: +44 (0)29 20492520 sales@huntleigh-diagnostics.co.uk www.huntleigh-diagnostics.com Registered No: 942245 England & Wales. Registered Office: ArjoHuntleigh House, Houghton Hall Business Park, Houghton Regis, Bedfordshire, LU5 5XF ©Huntleigh Healthcare Limited 2003-2018...
