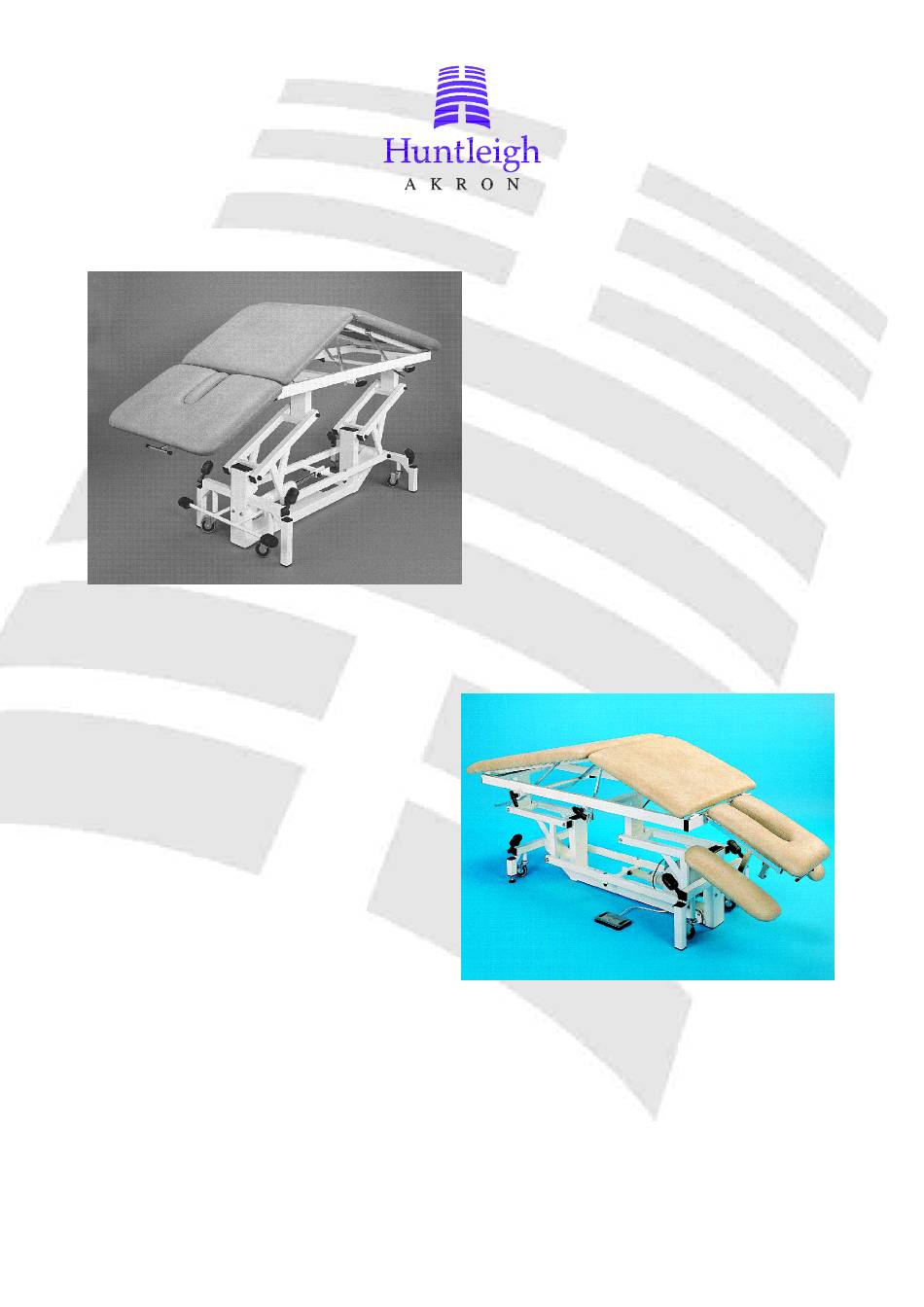

- Page 1 ® AKRON 3 SECTION DRAINAGE Models 8241, 8242 ® AKRON 5 SECTION DRAINAGE Models 8251, 8252 SERVICE MANUAL 794-015...
- Page 2 General Maintenance including Gas Strut Ü It is recommended that the following checks and adjustments are carried out at minimum of twice a year and more frequently if the couch is in constant use. • The framework of the couch is of steel construction and coated with an epoxy paint finish.
-
Page 3: Manufacturers Details
1 Farthing Road Ipswich Suffolk IP1 5AP England Tel. (0)1473 749544 Fax. (0)1473 463096 Huntleigh Akron T/A a Division of Huntleigh Nesbit Evans Limited A Member of the Huntleigh Technology PLC Group of Companies © Huntleigh Technology PLC 1999 Page 2... -
Page 4: Revision History
Revision History DOCUMENT ISSUE DCN No. SIGNED DATE All Pages Paula Hammond 23.10.98 2A0152Z 2A0160Z Paula Hammond 25.2.99 2A0201Z 2A0230Z Paula Hammond 24.3.99 2A0152Z 2B0159Z 914/916 Gary Mullenger 9.11.99 2A0160Z 2B0162Z 2N0103Z Gary Mullenger 6.6.99 2A0201Z Jason Barker 18.12.00 Page 3... - Page 5 5N3737Y 10mm Foot Adjusting Stud 5N3782U 100mm x 50mm x 2-4mm End Cap 5N4939Y Bronze Flanged Bush 5P8000Z Nylon Foot Lever 5T0028Z Pedal Rubber 5T3200Z Huntleigh Akron Label 5U1006Z Pedal Sticker 5U1066Z Issue Date 3/97 3/98 9/98 2/99 11/00 E.C.N.
- Page 7 PARTS LIST STANDARD FBS SYSTEM 2A0230Z – Issue 02 Reference Description Quantity Part Issue Number Number Status Mechanism Holder 3A0231Z Sleeve Pivot Mount Bracket 3A0232Z LHS Push Pull Assembly 3A0233Z RHS Push Pull Assembly 3A0234Z Adjusting Stud 3F0230Z Hanning Handswitch 5F2100Z Hanning Round Air Pipe 5F7000Z...
- Page 9 PARTS LIST 230V HANNING KIT 2B0159Z – Issue 12 Reference Description Quantity Part Issue Number Number Status Front Mounting Bracket 3A0130Z Rear Mounting Bracket 3A0131Z Hanning Ram 230V (Type V) 5F0601Z Hanning Mains Lead (4 metres) 5F6000Z Hanning Plug Rubber 5F6100Z Hanning Ram Plug 5F6200Z...
- Page 11 PARTS LIST 115V HANNING KIT 2B0162Z – Issue 11 Reference Description Quantity Part Issue Number Number Status Front Mounting Bracket 3A0130Z Rear Mounting Bracket 3A0131Z Hanning Ram 115V (Type V) 5F0502Z Hanning Mains Lead (4 metres) 5F6000Z Hanning Plug Rubber 5F6100Z Hanning Ram Plug 5F6200Z...
- Page 13 PARTS LIST 115V HANNING KIT (UL SPECIFICATION) 2B0163Z – Issue 02 Reference Description Quantity Part Issue Number Number Status UL Junction Box 2Z3000Z Front Mounting Bracket 3A0130Z Rear Mounting Bracket 3A0131Z Hanning Ram 115V (Type V) 5F0502Z M8 x 70mm Hex Bolt 5J7868A M10 x 65mm Hex Bolt 5J8067A...
- Page 15 PARTS LIST HANNING SINGLE HANDSWITCH ASSEMBLY 2Z0300Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Handswitch 5F2100Z Large Curly Wrap 0.03 5S0327Z Self Adhesive Magnet 5T8400Z Switch Label 5U1034Z Issue Date 1/96 E.C.N.
- Page 17 PARTS LIST HANNING SINGLE FOOTSWITCH ASSEMBLY 2Z0400Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Footswitch 5F2000Z Round Air Pipe 5F7000Z Large Curly Wrap 0.03 5S0327Z Issue Date 1/96 E.C.N.
- Page 19 PARTS LIST HYDRAULIC KIT 2A0152Z – Issue 12 Reference Description Quantity Part Issue Number Number Status Front Mounting Bracket 3A0120Z Pump Mounting Bracket 3A0142Z Pump Ring 3A0143Z Hydraulic Ram 5F5200Z M6 x 12mm Countersunk Set Screw 5J7656Y M8 x 70mm Hex Bolt 5J7868A M10 x 65mm Hex Bolt 5J8067A...
- Page 20 PARTS LIST HANNING DOUBLE FOOTSWITCH ASSEMBLY 2Z0500Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Footswitch 5F2000Z Round Air Pipe 5F7000Z Air Tube Connector 5F7200Z Large Curly Wrap 0.03 5S0327Z \\MAIN_SERVER\WORKDOCS\P-LIST\2Z0500Z.DOC September 1998...
- Page 23 PARTS LIST DOUBLE PEDAL 2A0160Z – Issue 08 Reference Description Quantity Part Issue Number Number Status Hydraulic Pedal 3A0220Z 8mm x 32mm Spirol Pin 5M3110E Pedal Rubber 5T3200Z Pedal Sticker 5U1066Z Issue Date 3/97 8/98 2/99 11/99 E.C.N.
- Page 25 PARTS LIST DRAINAGE MAIN FRAME ASSEMBLY 2N0120Z – Issue 14 Reference Description Quantity Part Issue Number Number Status Foot Section 3A1605Z Top Frame 3A9025Z Double Locking Bar 3A9043Z Hinge Rod 3A9048Z Hinge Pin 3A9049Z Bent Ratchet Bar 3A9050Z Straight Ratchet Bar 3A9051Z Centre Section 3A9080Z...
- Page 27 PARTS LIST 'B' HEADFRAME ASSEMBLY 2N0102Z – Issue 07 Reference Description Quantity Part Issue Number Number Status Trunnion 3A9040Z Headframe 3A9076Z Release Lever 3A9078Z Locking Gas Strut 270N 5G2000Z " UNC x 2 " Hex Bolt 5J0416A No.10 x 2" Posidrive Woodscrew 5K0415A "...
- Page 29 PARTS LIST 'C' HEADFRAME ASSEMBLY 2N0103Z – Issue 09 Reference Description Quantity Part Issue Number Number Status Trunnion 3A9040Z Headframe 3A9077Z Release Lever 3A9078Z Arm Rest 3A9079Z Nylon Plunger 3G9062Z Locking Gas Strut 270N 5G2000Z Spring 5G7000Z " UNC x 1 "...
