General Information
front panels
(Shown for Reference Only)
front panels
Removable customer-side front panels are
meant to provide access for installation and
future servicing.

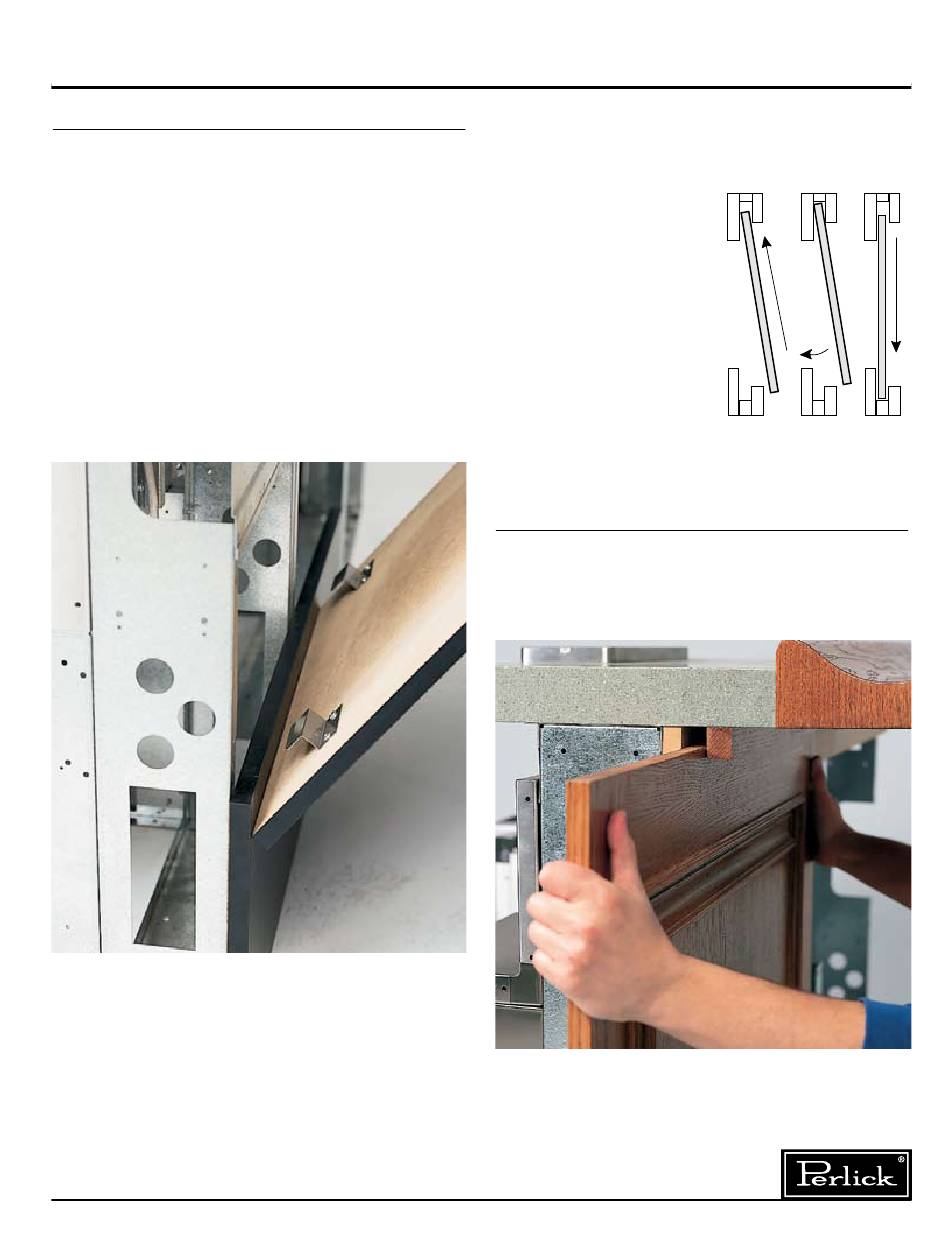

method a
In this method panels hang on the front lower
structure rail.
a) Panel clips (not included) are attached to the
inside of the bar front panel.
b) Place clip over lower finish panel.
c) Use screws to attach panel to the
upper part of the structure.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
method b
In this method panels slide into a channel created
by two pieces of wood.
a) No screws or fasteners
required.
b) Panels lift up and swing
out for service.
end panels
End panels to conceal the structure at gate
openings or bar end, etc. are not supplied by
Perlick. They should be fabricated by the
millworker.
7
Inserting End Panels.eps
