General Information

tools and equipment required
Phillips screwdriver
Power drill with various bits
Clamps (optional)
Chalk Line
fasteners
Actual Size
Not Shown
arrival at the Job site
Remove crate top, sides, ends and exposed lag bolts
holding structure to the crate skid. note: Whenever
possible, the underbar equipment has been attached
to the bar structure. Free-standing equipment such as
bottle coolers, frosters, etc, are to be set into the open
sections which have been programmed into the bar
structure.
General specifications
structure: Configured to the exact size and shape
of underbar equipment, freestanding cabinets and
openings, as specified.
Chase: Interior chase runs the entire length of
structure to include corners.
millwork: By others.
mechanical specifications

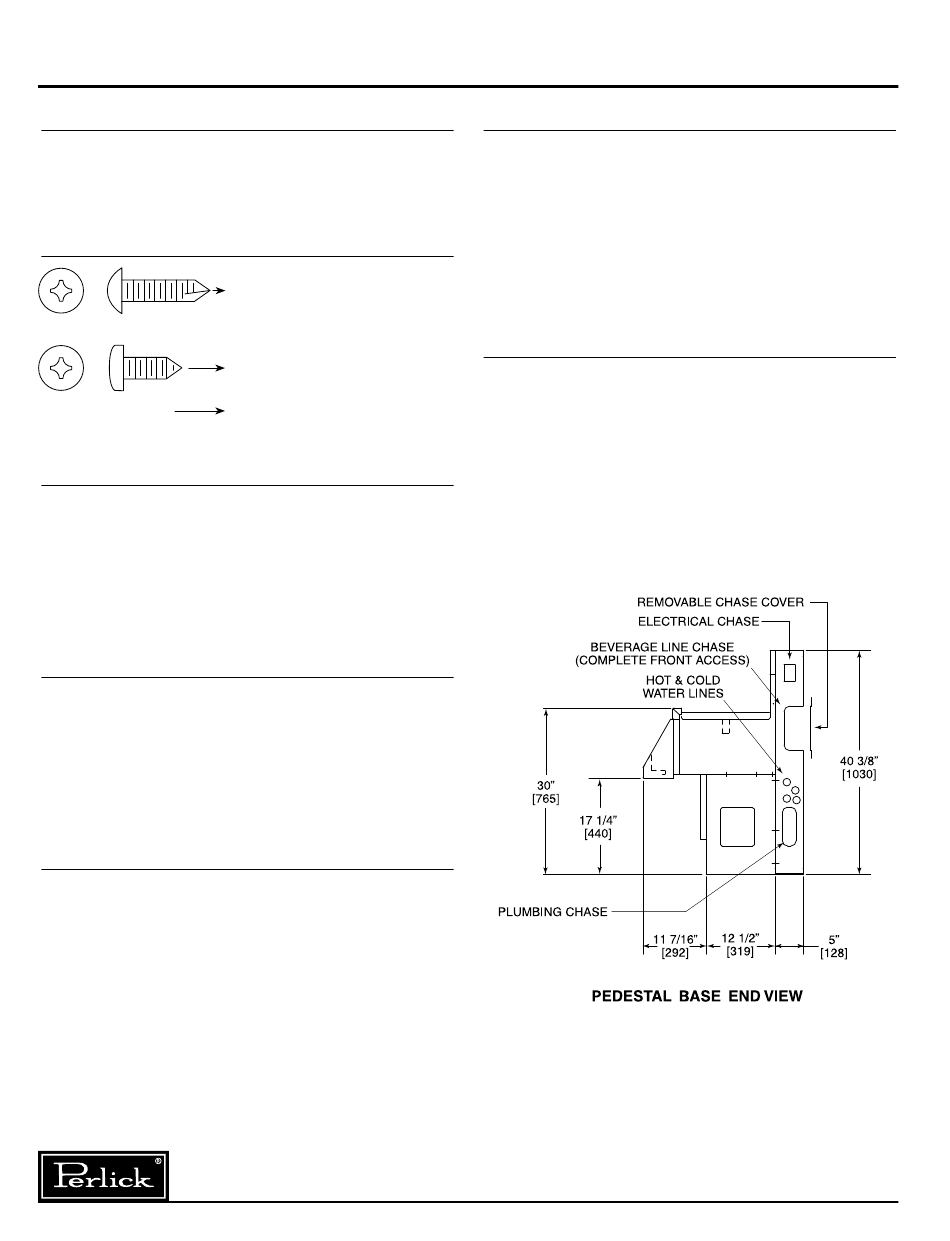

utility lines: Dedicated chase locations for hot/cold
water supply lines, beverage line conduits, and elect-
rical conduit (behind the underbar equipment.) See
drawing. This chase is accessible from the floor and
runs the entire length of the bar.
floor drains: Locate floor drains directly below
workboard equipment. The number of floor drains will
vary depending on the bar layout and local codes.
Form No. Z22162
Rev. 06.12.10
Level
Marking pencil
Tape measure
#10-16 x 3 ⁄ " Phillips Round Head
4
Thread Cutting Screw
Use to assemble Modular Bar
sections.
#10-16 x 1 ⁄ " Phillips Pan Head
2
Use to attach front panel clips;
secure to bar top.
#7055-45 Connector Kit used to
assemble workboard equipment
sections.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
utility specifications
A 5" open zone is furnished behind the equipment
to provide room for trunk lines, soda lines, plumbing,
electrical, etc. to travel vertically or horizontally within
the bar structure.
Connections can be made from the front of the bar
with panels removed.
plumbing and electrical
(Installed According to Local Codes)
All water service and waste connections can be
made from the front of the bar (decorative front panel
removed). Local codes dictate installation (by others).
All electrical requirements such as receptacle to
blenders, washers, coolers, soda guns, lights, etc. (by
others).
Plug-in flourescent lighting is available in conjunction
with 8020-51 backsplash electrical outlets.
