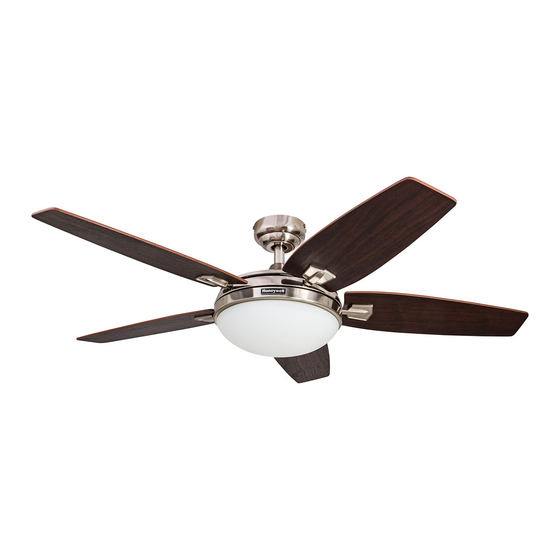

Honeywell CARMEL 50196 Manual

48” ceiling fan
Hide thumbs

Advertisement

CARMEL 48" CEILING FAN
MODELS #50196, 50197
Español p. 21
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.

Advertisement

Table of Contents
loading

  Related Manuals for Honeywell CARMEL 50196

  Summary of Contents for Honeywell CARMEL 50196

  • Page 1 CARMEL 48” CEILING FAN MODELS #50196, 50197 Español p. 21 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST.
  • Page 2: Table Of Contents

    WELCOME TABLE OF CONTENTS PREPARATION Care and Maintenance ......2 Before beginning the assembly of this product, ensure that all parts are present.
  • Page 3: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Canopy 2. Mounting Bracket 3. Canopy Cover 4. Blades (5) 5. Downrod 6. Blade Arm (5) 7. Bulb (3) 8. Receiver 9. Remote Control 10.
  • Page 4: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199.
  • Page 5: Mounting Options

    MOUNTING OPTIONS Fig. 1 DANGER Turn off the circuit breakers and the wall switch to the fan supply line leads. Failure to disconnect the power supply prior to installation may result in serious injury or death. 1. Your fan has 3 mounting options: •...
  • Page 6: Mounting Bracket Installation

    MOUNTING BRACKET INSTALLATION 4. Remove the two mounting bracket screws and Fig. 4 washers from the round holes in the canopy and loosen the other two screws. Set aside for later Mounting Mounting use. Detach mounting bracket from canopy (Fig. 4). Bracket Bracket Screws...
  • Page 7: Standard Or Angle Mounting Instructions

    STANDARD OR ANGLE MOUNTING INSTRUCTIONS 6. Partially loosen the motor housing set screws in the Fig. 6 yoke at the top of the motor housing (Fig. 6). Set Screw 7. Remove the downrod pin and downrod clip from Fig. 7 the downrod (Fig.
  • Page 8 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 9. Slide the downrod into the yoke of the motor Fig. 9 assembly, align the holes, and re-install the Downrod downrod pin and downrod clip. Then re-tighten the set screws (Fig. 9). Downrod Downrod Clip Downrod Pin Set Screw Downrod Clip...
  • Page 9 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 12. Install the ball end of the downrod into the Fig. 12 mounting bracket opening. Align the slot in the ball with the tab in the mounting bracket. The rod should not rotate if installed correctly (Fig. 12). Mounting Bracket Downrod...
  • Page 10: Closemount Instructions

    CLOSEMOUNT INSTRUCTIONS 14. Remove the canopy cover from the bottom of the Fig. 14 canopy (Fig. 14). Helpful Hint: Closemount mounting is more suitable for ceilings lower than 8 ft. (2,44 m) high. The downrod, hanging ball, and canopy cover are not used in this type of installation.
  • Page 11: Wiring

    WIRING Fig. 17 CAUTION Be sure outlet box is properly grounded or that a Black (hot/power) ground (green or bare) wire is present. White (neutral) WARNING Bare/Green (ground) If house wires are different colors than referred to in the following step, stop immediately. A professional electrician is recommended to determine wiring.
  • Page 12: Canopy Installation

    CANOPY INSTALLATION 18. Lift the canopy up so the partially installed mounting Fig. 18 Mounting bracket screws are situated in the L-slots on each Bracket side of the canopy. Rotate the canopy clockwise and install the remaining mounting bracket screws and washers removed in Step 4 (Fig.
  • Page 13: Blade Installation

    BLADE INSTALLATION 20. Partially insert three blade screws along with three Fig. 19 Blade Screw blade washers through one blade and into one blade arm. Tighten each blade screw with a Phillips Washer screwdriver, starting with the one in the middle. Repeat this step for the remaining blades and blade arms (Fig.
  • Page 14: Light Kit Installation

    LIGHT KIT INSTALLATION 21. Remove two of the four fitter plate screws Fig. 21 located on the underside of the motor assembly and loosen the other two screws. Align the two key slots of the light kit with the loosened fitter plate screws.
  • Page 15 LIGHT KIT INSTALLATION 24. Connect the two 4-pin connectors and two 9-pin Fig. 24 connectors from the switch housing. Insert the connectors into the switch housing. Then, install the switch housing cover to the switch housing using the switch housing cover screws that were previously removed (Fig.
  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS 27. Use the fan reverse switch, located on the side Fig. 27 of the light kit, to optimize your fan for seasonal performance (Fig. 27). Using a ceiling fan will allow you to raise your thermostat in the summer and lower your thermostat in the winter without sacrificing comfort.
  • Page 17 OPERATING INSTRUCTIONS 30. Remove the battery cover from the back of the Fig. 30 Remote remote (Fig. 30). After removing the protective plastic, insert the battery. Replace the battery cover. D/CFL Switch: Located inside the battery compartment of the remote, this switch should D/CFL Switch be moved to either “D”...
  • Page 18: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. MODEL 50196 MODEL 50197 PIECE DESCRIPTION PART # PART # Glass Globe 50196-A 50197-A Blade Arm...
  • Page 19: Troubleshooting

    TROUBLESHOOTING At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection.
  • Page 20: Limited Lifetime Warranty

    1-877-361-3883 Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy of the receipt as proof of purchase. The Honeywell Trademark is used under license from Honeywell International Hong Kong China Electric Appliance Manufacture Co., Ltd.

This manual is also suitable for:

Carmel 50197Rio
