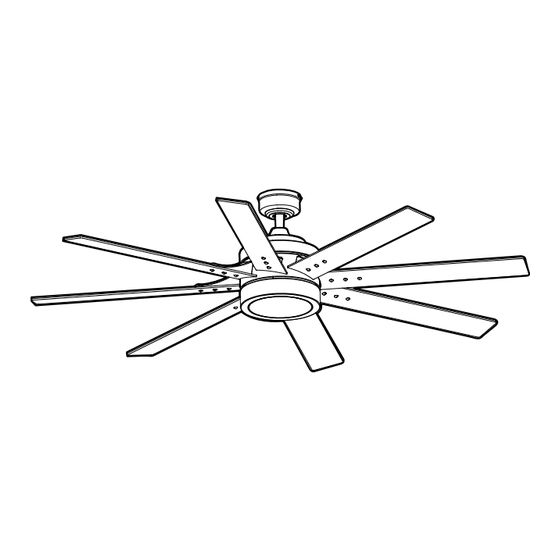

Xerxes Ceiling Fan
User Guide
Home
Model #50608, 50609, 51473,
51628

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xerxes 50608 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honeywell Xerxes 50608

  • Page 1 Home Xerxes Ceiling Fan User Guide Model #50608, 50609, 51473, 51628...
  • Page 2: Package Contents

    PACKAGE CONTENTS Canopy Canopy Cover Mounting Bracket Screw (x 4) Mounting Bracket Downrod Downrod Clip Downrod Pin Yoke Cover Yoke Set Screw (x 2) Motor Assembly Blade Arm (x 8) Fitter Plate Screw (x 3) Blade (x 8) Fitter Plate Light Kit Lens Cover Remote Kit...
  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199.
  • Page 4: Care And Maintenance

    SAFETY INFORMATION CAUTION: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device (if applicable). CAN ICES-005 (B) / NMB-005 (B) This device complies with Part 15 of the FCC Rules.
  • Page 5: Initial Installation

    PREPARATION Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated assembly time: 2 hours Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers.
  • Page 6 STANDARD OR ANGLE MOUNT INSTRUCTIONS 1. Remove the downrod clip and downrod pin from the downrod. Then partially loosen the set screws in the yoke at the top of the motor assembly (Figure 3.1). 2. Insert the downrod through the canopy and yoke cover. Feed the wires and braided cable from the fan through the downrod (Figure 3.2).
  • Page 7: Final Installation

    SECONDARY HANGING SYSTEM INSTRUCTIONS For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System. If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
  • Page 8 FINAL INSTALLATION 4. Insert the blade screw through the blade arm, blade and into the screw cap. Tighten each blade screw with a Phillips screwdriver (not included) starting with the one in the middle. Repeat this step for the remaining blades and blade arms (Figure 5.4). 5.
  • Page 9 OPERATING INSTRUCTIONS To operate the fan using the remote, press and release the following buttons (Figure 6.1): A - Fan Off - Turns the power to fan off. B - High Speed - Turns on fan at high speed. C - Medium Speed - Turns on fan at medium speed. D - Low Speed - Turns on fan at low speed.
  • Page 10: Troubleshooting

    TROUBLESHOOTING If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883. Warning: Shut off the power supply before you begin any maintenance task. PROBLEM CORRECTIVE ACTION 1.
  • Page 11: Limited Lifetime Warranty

    4A000013090 Hardware Bag 4A000008830 4A000008840 4A000013400 4A000014250 The Honeywell Trademark is used under license from Honeywell International Inc ™. Honeywell International Inc. makes no representations or warranties with respect to this product. This product is manufactured for Hong Kong China Electric Appliance, LTD.

This manual is also suitable for:

Xerxes 50609Xerxes 51473Xerxes 51628
