(866) 433-6682 • (281) 359-8538 • sales@novatech-usa.com • www.novatech-usa.com

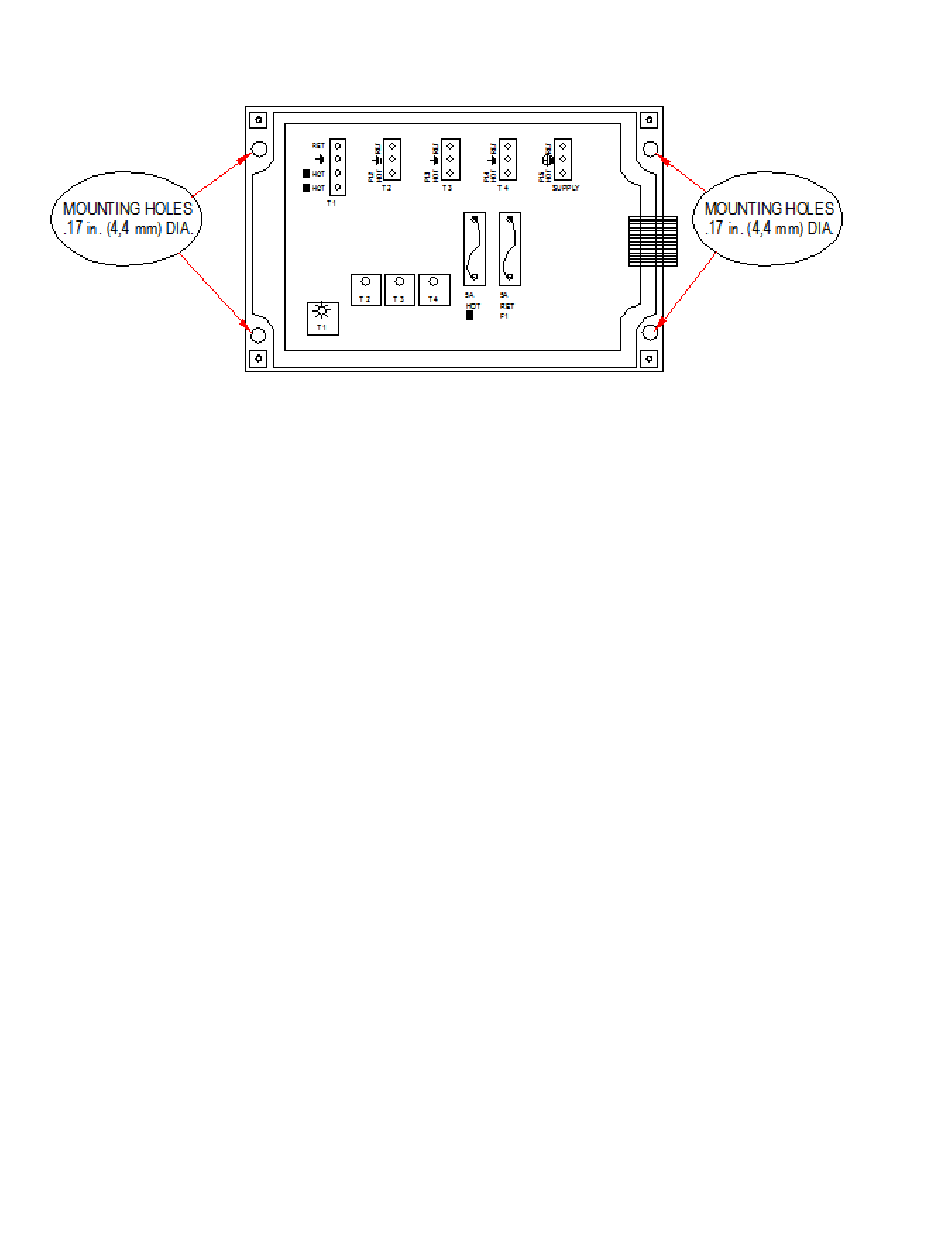

Mount the bottom half of the controller using the four (4) holes provided (Fig. 2).
3.3 Mounting Hardware
For panel mounts without threaded inserts, four number 8 self taping screws are the minimum
recommendation.
For panel mounts with threaded inserts, four 8-32 screws are the minimum recommendation.
Panel mount hardware should support 25lbs. For hole locations, see the mounting hole
pattern (Fig. 9) found on the page 22 of manual.
3.4 Flow Sensor Switch
If your controller is provided with a flow switch, install the flow switch so that flow
enters into the bottom of the flow switch tee, and out of the side of the tee. The flow
switch must always be installed in a vertical position so that the sensor wire is coming
out of the top, and the internal (red) flow shuttle is able to rise when there is flow and
drop when there is no flow. The flow switch is activated when 1 GPM (3,8 LPM) is
going through it, and is deactivated when the flow drops below 1 GPM (3,8 LPM).
72-910-23 Rev.F
Page 7 of 30
Fig. 2
