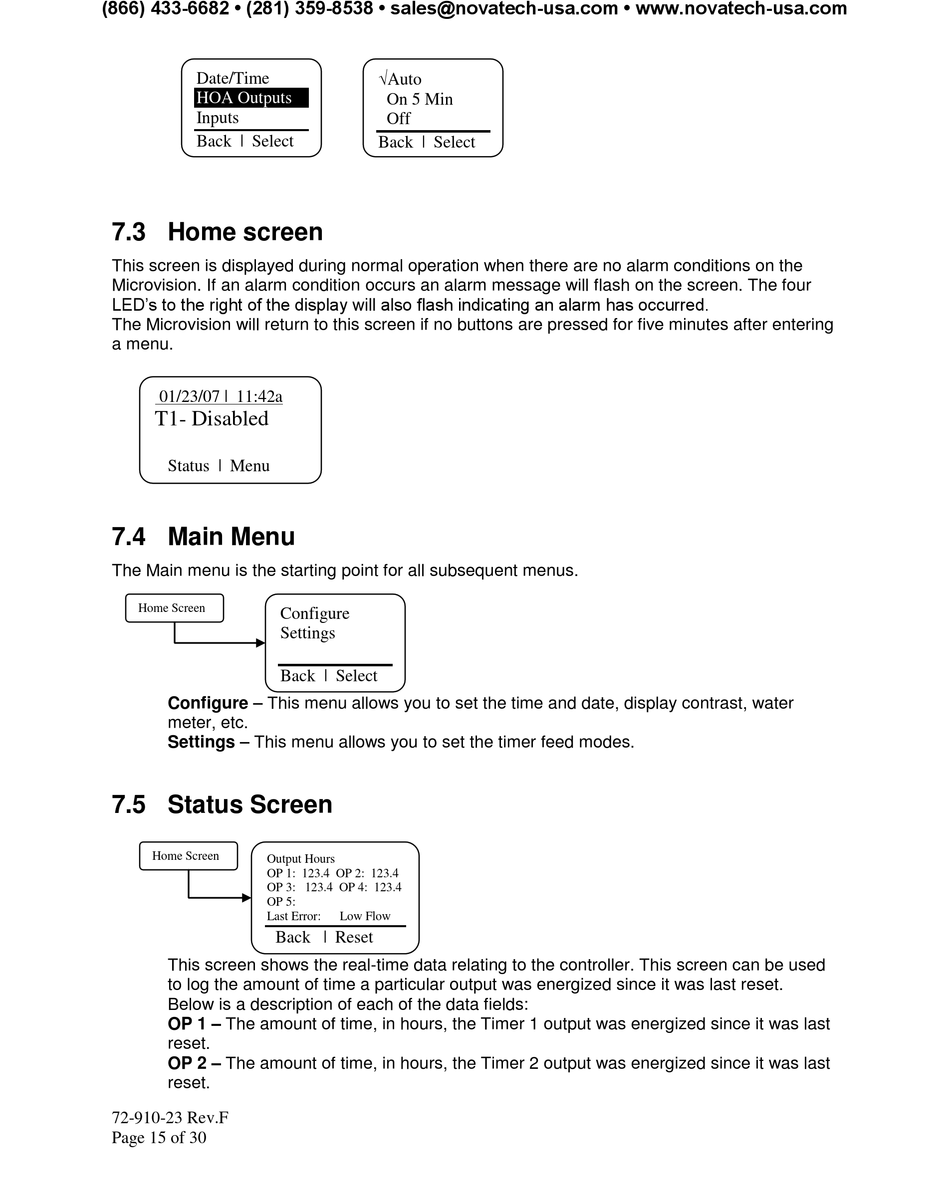

7.3 Home screen

This screen is displayed during normal operation when there are no alarm conditions on the
Microvision. If an alarm condition occurs an alarm message will flash on the screen. The four
LED's to the right of the display will also flash indicating an alarm has occurred.
The Microvision will return to this screen if no buttons are pressed for five minutes after entering
a menu.
01/23/07 | 11:42a
T1- Disabled
Status | Menu

7.4 Main Menu

The Main menu is the starting point for all subsequent menus.
Home Screen
Configure – This menu allows you to set the time and date, display contrast, water
meter, etc.
Settings – This menu allows you to set the timer feed modes.

7.5 Status Screen

Home Screen
Output Hours
OP 1: 123.4 OP 2: 123.4
OP 3: 123.4 OP 4: 123.4
OP 5:
Last Error:
This screen shows the real-time data relating to the controller. This screen can be used
to log the amount of time a particular output was energized since it was last reset.
Below is a description of each of the data fields:
OP 1 – The amount of time, in hours, the Timer 1 output was energized since it was last
reset.
OP 2 – The amount of time, in hours, the Timer 2 output was energized since it was last
reset.
72-910-23 Rev.F
Page 15 of 30
Auto
On 5 Min
Off
Back | Select
Configure
Settings
Back | Select
Low Flow
Back | Reset
