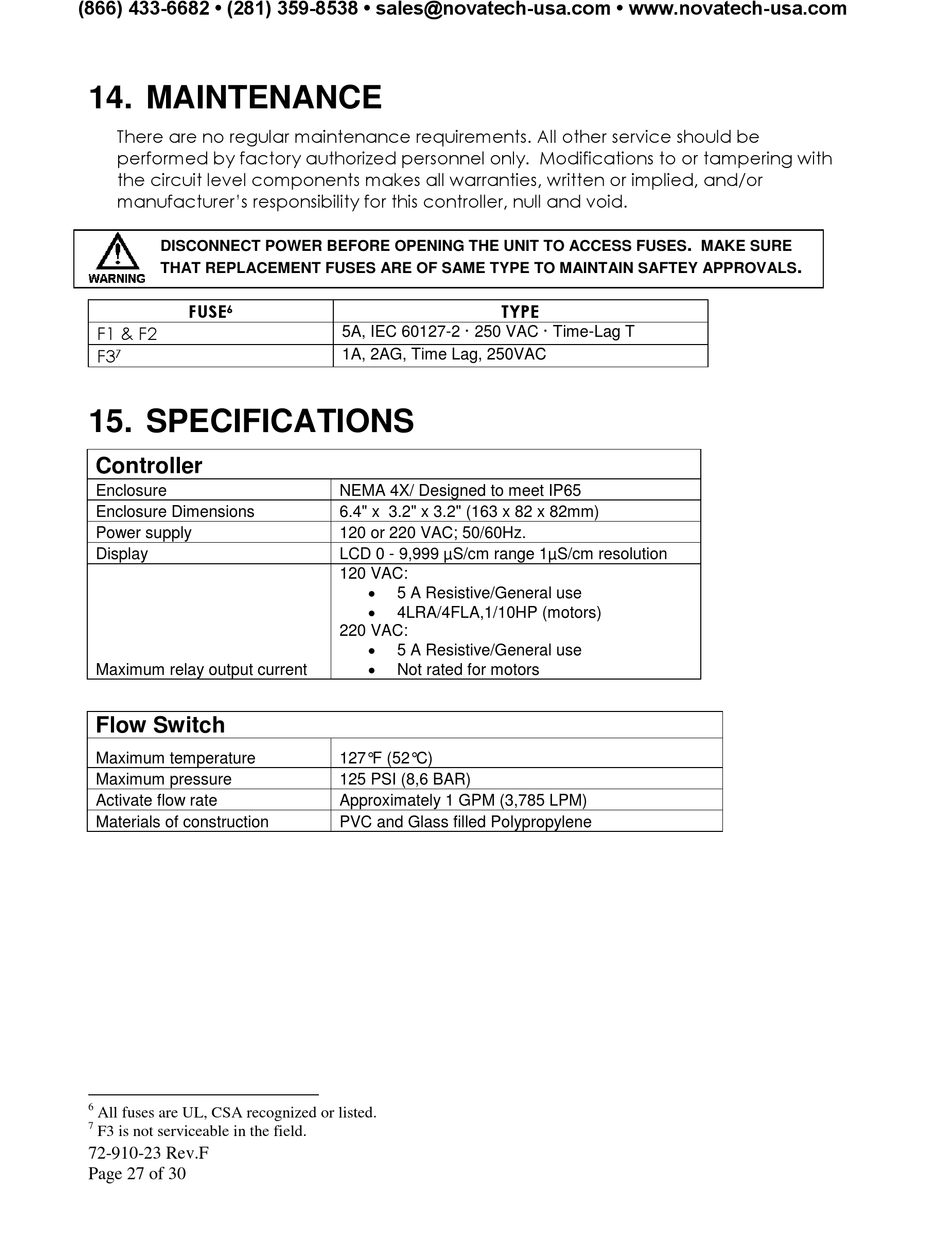

14. MAINTENANCE

There are no regular maintenance requirements. All other service should be
performed by factory authorized personnel only. Modifications to or tampering with
the circuit level components makes all warranties, written or implied, and/or
manufacturer's responsibility for this controller, null and void.
DISCONNECT POWER BEFORE OPENING THE UNIT TO ACCESS FUSES
THAT REPLACEMENT FUSES ARE OF SAME TYPE TO MAINTAIN SAFTEY APPROVALS
FUSE
6
F1 & F2
F3
7

15. SPECIFICATIONS

Controller
Enclosure
Enclosure Dimensions
Power supply
Display
Maximum relay output current
Flow Switch
Maximum temperature
Maximum pressure
Activate flow rate
Materials of construction
6
All fuses are UL, CSA recognized or listed.
7
F3 is not serviceable in the field.
72-910-23 Rev.F
Page 27 of 30
TYPE
5A, IEC 60127-2 · 250 VAC · Time-Lag T
1A, 2AG, Time Lag, 250VAC
NEMA 4X/ Designed to meet IP65
6.4" x 3.2" x 3.2" (163 x 82 x 82mm)
120 or 220 VAC; 50/60Hz.
LCD 0 - 9,999 µS/cm range 1µS/cm resolution
120 VAC:

5 A Resistive/General use

4LRA/4FLA,1/10HP (motors)
220 VAC:

5 A Resistive/General use

Not rated for motors
127°F (52°C)
125 PSI (8,6 BAR)
Approximately 1 GPM (3,785 LPM)
PVC and Glass filled Polypropylene
.
MAKE SURE
.
