(866) 433-6682 • (281) 359-8538 • sales@novatech-usa.com • www.novatech-usa.com

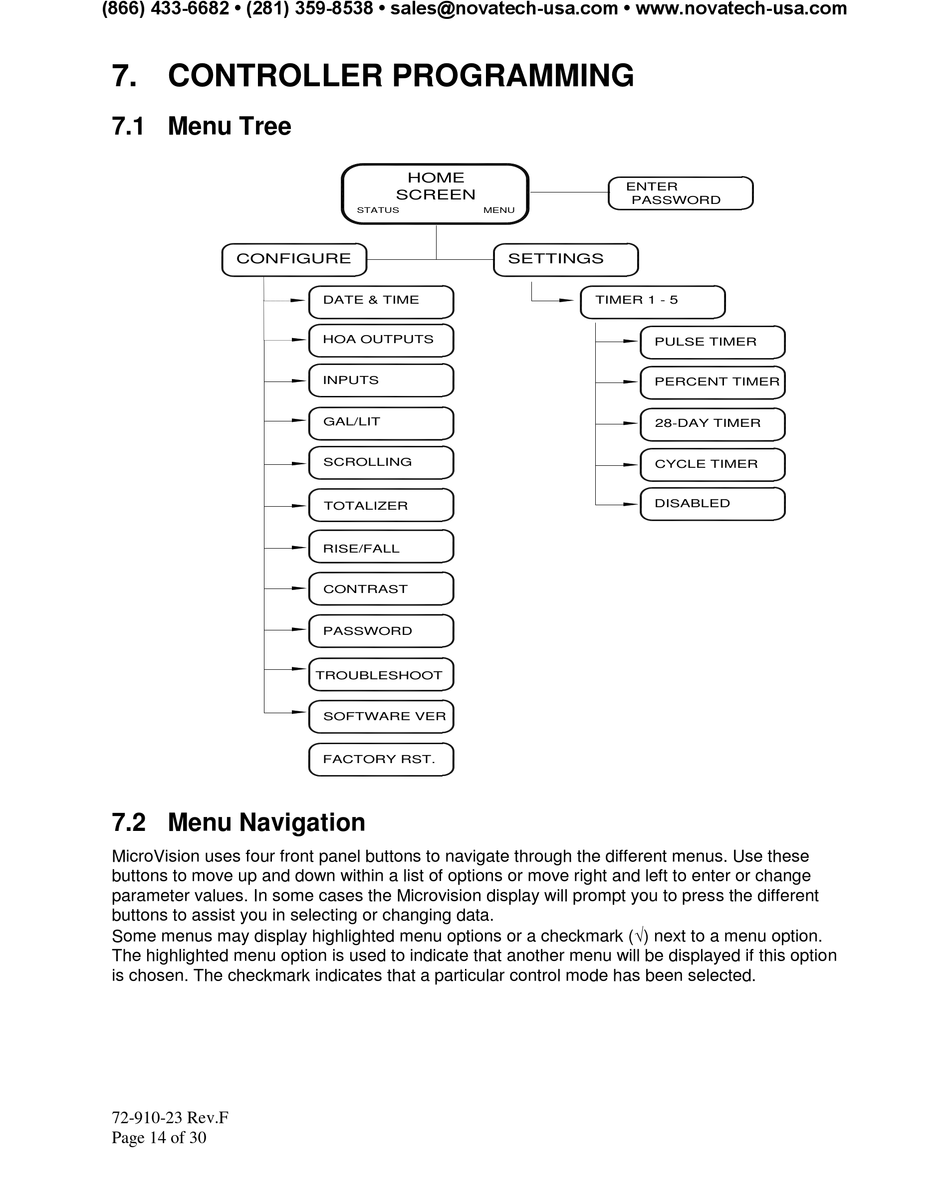

7. CONTROLLER PROGRAMMING
7.1 Menu Tree
CONFIGURE
7.2 Menu Navigation
MicroVision uses four front panel buttons to navigate through the different menus. Use these
buttons to move up and down within a list of options or move right and left to enter or change
parameter values. In some cases the Microvision display will prompt you to press the different
buttons to assist you in selecting or changing data.
Some menus may display highlighted menu options or a checkmark () next to a menu option.
The highlighted menu option is used to indicate that another menu will be displayed if this option
is chosen. The checkmark indicates that a particular control mode has been selected.
72-910-23 Rev.F
Page 14 of 30
HOME
SCREEN
STATUS
MENU
DATE & TIME
HOA OUTPUTS
INPUTS
GAL/LIT
SCROLLING
TOTALIZER
RISE/FALL
CONTRAST
PASSWORD
TROUBLESHOOT
SOFTWARE VER
FACTORY RST.
ENTER
PASSWORD
SETTINGS
TIMER 1 - 5
PULSE TIMER
PERCENT TIMER
28-DAY TIMER
CYCLE TIMER
DISABLED
