Shure A50D User Manual

General Description

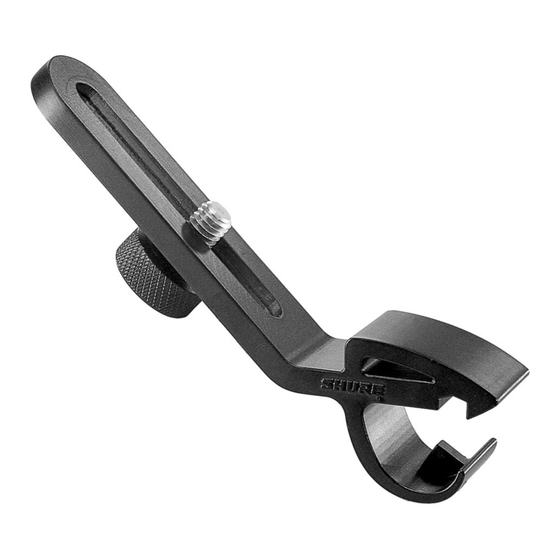

Use the Shure A50D to mount a microphone onto a drum. The flexible, yet
sturdy, rubber construction provides stability and ease of installation. Any
standard microphone clip fits on the mount with the included 5/8 – inch to
3/8 – inch thread adapter.
STEP ONE: INSTALL THE MOUNT ON A DRUM
1. Place the lower jaw of the mount under the drum rim as shown in the
following diagram.

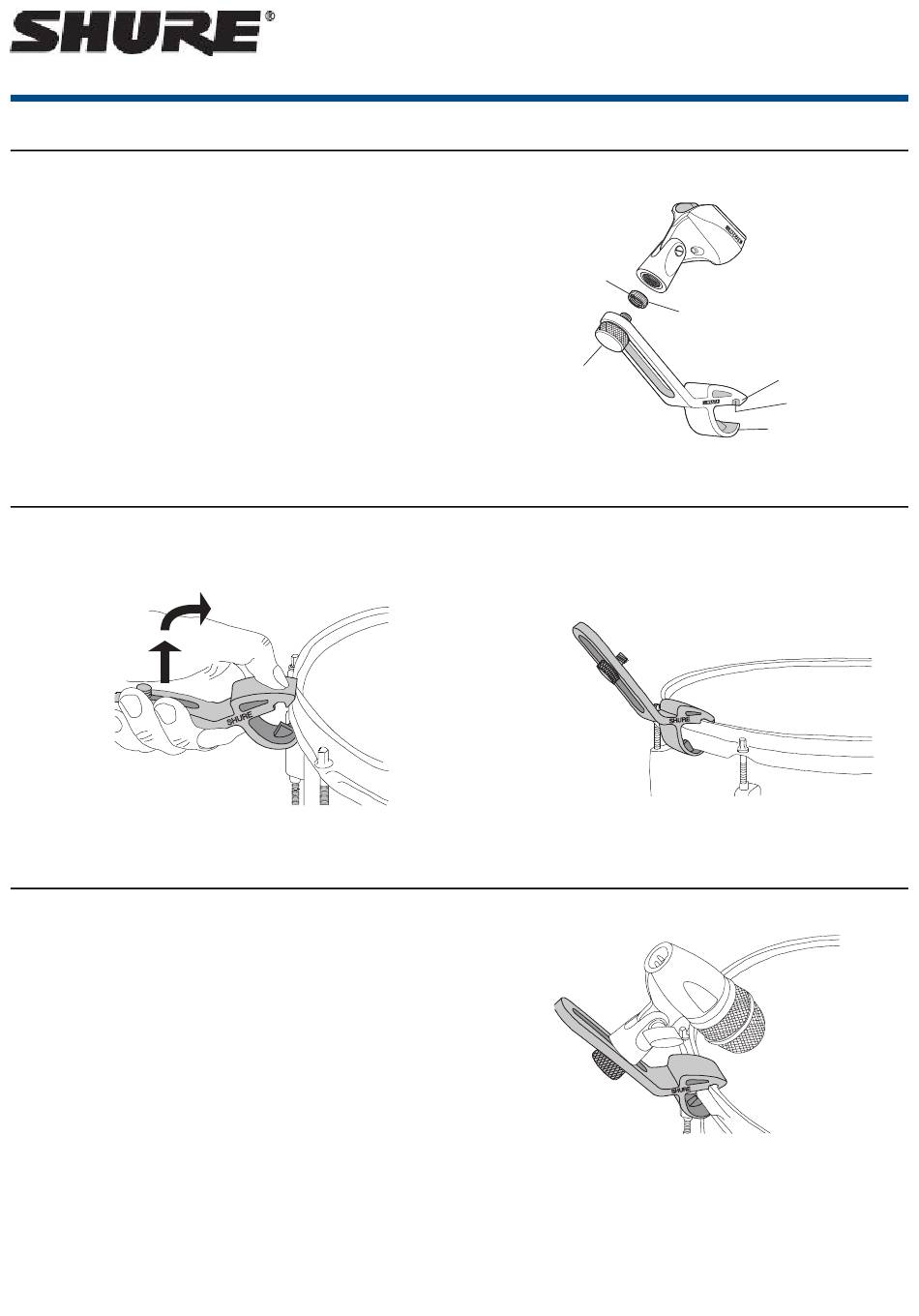

INSTALLING THE MOUNT
STEP TWO: ATTACH A MICROPHONE TO THE MOUNT
After installing the mount onto the drum rim, follow these instructions to attach
a microphone:
1. Insert the thread adapter, slot side out, into the bottom of the mic clip.
NOTE: The adapter also works with microphones that have an integrated
mic clip, such as the PG56 (pictured below).
2. Screw the adapter clockwise until it is flush with the bottom of the mic
clip.
3. Position the mic clip over the mount's thumbscrew. Turn the thumbscrew
clockwise until the mic clip is firmly attached to the mount.
NOTE: Do not over tighten.
4. Place a microphone in the clip.
5. To adjust the distance between the microphone and the drum head,
loosen the thumbscrew slightly and slide the microphone up or down
along the mount.
©2017 Shure Incorporated
Model A50D User Guide Microphone Drum Mount
SLOT
THUMBSCREW
EXPLODED VIEW WITH MIC CLIP
2. After securing the mount's lower jaw, lift the mount up until the groove
in its upper lip clicks into place over the top of the drum rim. Make sure
the mount is clamped securely over the top edge of the drum and under
the bottom flange of the drum rim.
PROPERLY INSTALLED MOUNT
MICROPHONE ATTACHED TO MOUNT
NOTE: To minimize potential noise or damage from drum sticks, position the
microphone outside the drummer's range of stick movement.
A50D
THREAD ADAPTER
UPPER LIP
GROOVE
LOWER JAW
1/2
