Type 8098
FLOWave
Flowmeter
QUICKSTART - English
From software version A01.05.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowave 8098 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Burkert Flowave 8098

Summary of Contents for Burkert Flowave 8098

  • Page 1 Type 8098 FLOWave Flowmeter QUICKSTART - English From software version A01.05.00...
  • Page 2 We reserve the right to make technical changes without notice. © Bürkert SAS, 2015 - 2017 QUICKSTART 1712/02_EU-EN 00567159 / Original EN...

  • Page 3: Table Of Contents

    Type 8098 TableofContents  ABOUT THE QUICKSTART ................................6 Symbols used ..................................6 1.1 Definition of the word device ............................7 1.2 Definition of the word büS ..............................7 1.3 Validity of the Quickstart ..............................7 1.4 INTENDED USE ....................................7 BASIC SAFETY INFORMATION ..............................8 GENERAL INFORMATION ................................10 Manufacturer's address and international contacts ..................10 4.1 Warranty conditions ................................10 4.2 4.3 Information on the Internet ............................10 DESCRIPTION ....................................11 5.1 Knowing the device ................................11 Understanding the rating plates ..........................12 5.2 Description of the device status LED ........................14 5.3...
  • Page 4 Type 8098  7.2.2 Switching positions of the blind cover and the display module ..........28 Recommendations for the installation into the pipe ..................30 7.3 Installing the device into the pipe ..........................32 7.4 7.4.1 Before installing the device into the pipe ..................32 7.4.2 Installing a device with clamp connections ..................32 7.4.3 Installing a device with flange connections ..................32 7.5 Wiring the device .................................33 7.5.1 Specifications of the cable for the male M12 fixed connector ..........33 7.5.2 Assembling and wiring the female M12 connector ..............34 7.5.3 Connecting the device to a power supply ..................34 7.5.4 Connecting the device to büS ......................35 7.5.5 Activating the device internal termination resistor ..............36 7.5.6 Specifications of the cables for the two M20x1,5 cable glands ..........36 7.5.7 Specifications of the wires for the terminal strip .
  • Page 5 Type 8098  8.7.4 Changing the login user level if the adjustment is not protected through passwords ..53 8.7.5 Changing the login user level if the adjustment is protected through passwords ....54 8.7.6 Logging out from the Advanced user, Installer or Bürkert user level .......54 8.7.7 Reading out the access path to a menu item (display module only) ........55 8.8 How to navigate in the menus and to adjust values ..................55 8.8.1 Adjusting a percentage or selecting a value in a list ..............55 8.8.2 Navigating in a wizard and adjusting numbers ................56 8.8.3 Setting negative or positive numbers ....................57 8.8.4 Entering a name ..........................58 8.8.5 Activating or deactivating a feature ....................59 Doing the Quick start adjustments when energizing the device for the first time (display 8.9 module only) ..................................59 8.10 Changing the type of the output 3 ..........................60 MAINTENANCE AND TROUBLESHOOTING .

  • Page 6: About The Quickstart

    Type 8098 AbouttheQuickstart ABOUT THE QUICKSTART The Quickstart includes main information and instructions for using the device. The complete description of the product is in the Operating Instructions of the device. Please keep this Quickstart in a safe place, accessible to all users and any new owners. Important safety information. Fully read the Quickstart. In particular, observe the safety recommendations and intended use. ▶ The Quickstart must be read and understood. The full Operating Instructions are available on the internet at www.burkert.com Symbols used DANGER Warns against an imminent danger. ▶ Failure to observe this warning results in death or in serious injury. WARNING Warns against a potentially dangerous situation. ▶ Failure to observe this warning can result in serious injury or even death. CAUTION Warns against a possible risk. ▶ Failure to observe this warning can result in substantial or minor injuries. NOTICE Warns against material damage. Indicates additional information, advice or important recommendations. Refers to information contained in the Quickstart or in other documents. ▶ Indicates an instruction to be carried out to avoid a danger, a warning or a possible risk. → Indicates a procedure to be carried out. An highlighted term is related to a menu or a menu item. Indicates the result of a specific instruction. English...

  • Page 7: Definition Of The Word Device

    Type 8098 AbouttheQuickstart Definition of the word device The word "device" used in the Quickstart always refers to the flowmeter type 8098. Definition of the word büS The word "büS" used in the Quickstart refers to the communication bus, developped by Bürkert, based on the CANopen protocol. → To get more information regarding büS, read the cabling guide available in English and German (Cabling_ guide_for_büS_networks.pdf) at www.burkert.com. Validity of the Quickstart The Quickstart is valid for the devices from software version A01.05.00. To read out the version number of the device software, do the following: → Go to the CONFIGURATION view. → General settings → Confirm to access the Parameter view. → Go to the MAINTENANCE view. → Device information → Software version → Go back to the parent menu. INTENDED USE Use of the device that does not comply with the instructions could present risks to people, nearby installations and the environment.

  • Page 8: Basic Safety Information

    Type 8098 Basicsafetyinformation BASIC SAFETY INFORMATION This safety information does not take into account any contingencies or occurrences that may arise during instal- lation, use and maintenance of the product. The operating company is responsible for the respect of the local safety regulations including for the staff safety. Risk of injury due to electrical voltage. ▶ Before carrying out work on the system, disconnect the electrical power for all the conductors and isolate it. ▶ Observe all applicable accident protection and safety regulations for electrical equipment. Risk of injury due to high pressure in the installation. ▶ Before any intervention on the installation, stop the circulation of fluid, cut off the pressure and drain the pipe. ▶ Before any intervention on the installation, make sure there is no pressure in the pipe. ▶ Observe the fluid temperature-pressure dependency depending on the fitting used. If switched on for a prolonged time, risk of burn injury or fire due to hot device surface ▶ Do not touch with bare hands. ▶ Keep the device away from highly flammable substances and fluids. Risk of burn injury due to high fluid temperatures. ▶ Do not touch with bare hands the parts of the device that are in contact with the fluid. ▶ Use safety gloves to handle the device. ▶ Before opening the pipe, stop the circulation of fluid and drain the pipe. ▶ Before opening the pipe, make sure the pipe is completely empty. Risk of injury due to the nature of the fluid. ▶ Respect the prevailing regulations on accident prevention and safety relating to the use of dangerous fluids. General dangerous situations To avoid injury: ▶...
  • Page 9 Type 8098 Basicsafetyinformation CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. NOTICE The device may be damaged by the fluid in contact with. ▶ Systematically check the chemical compatibility of the component materials of the device and the fluids likely to come into contact with the materials (for example: alcohols, strong or concentrated acids, aldehydes, alka- line compounds, esters, aliphatic compounds, ketones, halogenated aromatics or hydrocarbons, oxidants and chlorinated agents). NOTICE Elements/components sensitive to electrostatic discharges ▶ This device contains electronic components sensitive to electrostatic discharges. They may be damaged if they are touched by an electrostatically charged person or object. In the worst case scenario, these compo- nents are instantly destroyed or go out of order as soon as they are activated. ▶ To minimise or even avoid all damage due to an electrostatic discharge, take all the precautions described in the standard EN 61340-5-1. ▶ Also make sure that you do not touch any of the live electrical components. English...

  • Page 10: General Information

    Type 8098 Generalinformation GENERAL INFORMATION Manufacturer's address and international contacts To contact the manufacturer of the device, use following address: Bürkert SAS Rue du Giessen BP 21 F-67220 TRIEMBACH-AU-VAL You may also contact your local Bürkert sales office. The addresses of our international sales offices are available on the internet at: www.burkert.com Warranty conditions The condition governing the legal warranty is the conforming use of the device in observance of the operating conditions specified in this manual. Information on the Internet You can find the Operating Instructions and the technical data sheets regarding the type 8098 at: www.burkert.com English...

  • Page 11: Description

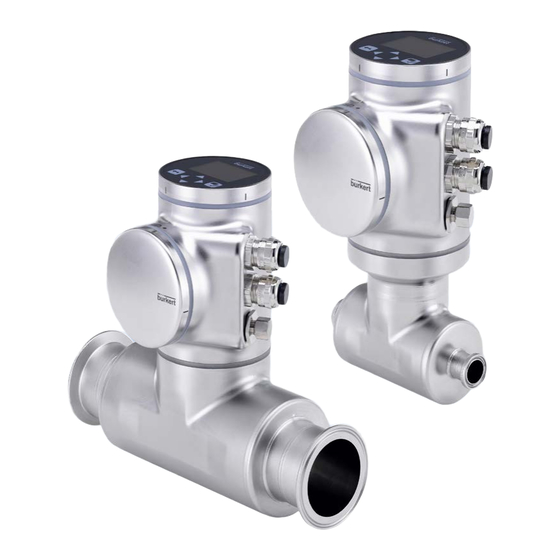

    Type 8098 Description DESCRIPTION Knowing the device The flowmeter type 8098 is made up of a transmitter type SE98 and a flow sensor type S097. Blind cover, or Display module (type ME31) Device status LED indicating the status of the device, and seal Transmitter housing, including the electronic board(s) Transmitter type SE98 Cable glands, with plugs Seal M12 male fixed connector, with screwed plug Blind cover Pressure compensating element Seal Flow sensor type Sensor housing S097 Process connection Sensor measurement tube Fig. 1 : Description of the device English...

  • Page 12: Understanding The Rating Plates

    Type 8098 Description The device is delivered with a magnetic key to unlock the display module or the blind cover. See Fig. 2. Fig. 2 : Unlocking magnetic key The device operates on a 4 wire system and needs a 12...35 V DC power supply. The device has three outputs: • 1 analogue output, • 1 digital output, • 1 output, which can be configured as an analogue output or as a digital output. Understanding the rating plates 8098 FLOWave Flowmeter IP65 / IP67 / NEMA 4X Temp. ambient: -10 to 70°C CAN_H CAN_L 00566187 SN:1001 CAN shield W49MN Made in France...
  • Page 13 Type 8098 Description SE98 FLOWave Transmitter Supply: 12-35V 5W max. Housing: 304/1.4301 Slot 5: 1AO-1DO-1AO/DO W49MN Made in France 1. Type of the transmitter 2. Power supply and max. power consumption 3. Material the housing is made of 4. Available outputs 5. Construction code 6. Conformity marking Fig. 4 : Rating plate of the transmitter SE98 (example) S097 FLOWave Flow sensor Pipe: 316L/1.4435 Housing: 304/1.4301 DIN 11866 C / Clamp D50.5 DIN 32676 B DN15...

  • Page 14: Description Of The Device Status Led

    Type 8098 Description Description of the device status LED Ex works, the LED that indicates the state of the device changes its colour and state based on the NAMUR NE 107 recommendation. If several states exist simultaneously, the state with the highest priority is displayed. The priority is determined by the severity of the deviation from standard operation (red LED = failure, error or malfunction = highest priority). Device status LED Colour code Description Signification (for a PLC) Colour Failure, error, Due to a malfunction of the device or its periphery, malfunction the measured values can be incorrect. Orange Function check Ongoing work on the device (for example, checking the correct behaviour of the outputs by simulating measurement values); the output signal is temporarily invalid (e.g. frozen). Yellow Out of The ambient conditions or process conditions for specification the device are outside the permitted ranges. Device internal diagnostics point to problems in the device or with the process properties. Blue Maintenance The device continues to measure but a function is required temporarily restricted.

  • Page 15: Technical Data

    Type 8098 Technicaldata TECHNICAL DATA Operating conditions Ambient temperature –10...+70 °C Air humidity < 85%, non condensated Height above see level max. 2000 m Installation category Category I according to UL 61010-1 Pollution degree Degree 2 according to EN 61010-1 Protection class according to I P65, IP67, if the device is wired and if the cable glands are tightened and EN 60529 the covers are screwed tight. Unused cable glands must be sealed with the stopper gaskets provided (mounted at the delivery of the device). Unused M12 male fixed connector must be protected with the screwed plug. Protection class according to 4X, if the device is wired and if the cable glands are tightened and the NEMA250 covers are screwed tight. Unused cable glands must be sealed with the stopper gaskets provided (mounted at the delivery of the device). Unused (not evaluated by UL) M12 male fixed connector must be protected with the screwed plug. Conformity to standards and directives The applied standards, which verify conformity with the EU Directives, can be found on the EU Type Examination Certificate and/or the EU Declaration of Conformity (if applicable). Conformity to the Pressure Equipment Directive The device conforms to article 4§1 of the Pressure Equipment Directive 2014/68/EU under following conditions.

  • Page 16: Ul Certification

    Type 8098 Technicaldata UL certification The devices with variable key PU01 or PU02 are UL-certified devices and comply also with the following standards: • UL 61010-1 • CAN/CSA-C22.2 n°61010-1 Identification on the device Certification Variable key UL-recognized PU01 Measuring UL-listed PU02 Equipment ® EXXXXXX EHEDG certification • EL class I • The following versions are EHEDG certified: Process connections Diameters • Clamp connections according to ASME BPE • 3/4'', 1'', 1 1/2'', 2'' (DIN 32676 series C) • Clamp connections according to DIN 11864-3 • 3/4'', 1'', 1 1/2'', 2'' series C • Flange connections according to DIN 11864-2 • 3/4'', 1'', 1 1/2'', 2'' series C...

  • Page 17: Fluid Data

    Type 8098 Technicaldata Fluid data Ambient temperature °C Temperatures authorized for a limited duration °C Fluid temperature Fig. 6 : Dependency between the fluid temperature and the ambient temperature Fluid temperature –20...+110 °C, with clamp process connections. Up to 140 °C for max. 60 minutes for a sterilisation process. Maximum temperature gradient: 10°C/s [measured by the sensor integrated in the device] The maximum fluid temperature can be restricted by the ambient operating temperature. See Fig. 6 Type of fluids Non dangerous liquids complying with article 4 §1 from directive 2014/68/EU Size of the process Standards the process connections Kind of process connection connection conform to • DIN 11864-3 series A • DIN 11864-3 series B clamp PN25 • DIN 32676 series A...

  • Page 18: Measurement Data

    Type 8098 Technicaldata Size of the process Standards the process connections Kind of process connection connection conform to • DIN 11864-3 series B PN16 • DIN 32676 series B • DIN 11864-3 series A clamp • DIN 32676 series A PN25 DN40 • SMS 3017 / ISO 2852 for pipes according to SMS 3008 DIN 11864-2 series B PN16 flange DIN 11864-2 series A PN25 • DIN 11864-3 series A • DIN 11864-3 series B • DIN 32676 series A clamp PN16 • DIN 32676 series B DN50 • SMS 3017 / ISO 2852 for pipes according to SMS 3008 • DIN 11864-2 series A flange...

  • Page 19: Electrical Data

    Type 8098 Technicaldata Temperature measurement • Measurement range • –20...+140 °C • Measurement deviation for temperatures up • ±1 °C to 100 °C • Measurement deviation for temperatures • ±1.5% between 100 °C and 140 °C • Refresh time • 1 s Density factor measurement • Measurement range • 0,8...1,3 • Resolution • 0,00001 • Repeatability • ±0.5% of the measured value • Refresh time • Adjustable Acoustic transmission factor measurement • Measurement range • 10...120%...

  • Page 20: Mechanical Data

    • Open loop detection through diagnostic software function • Any connection mode, in sink or source mode • Galvanically isolated, passive • Protected against polarity reversal • Maximum loop impedance 1300 W at 35 V DC, 1000 W at 30 V DC, 700 W at 24 V DC, 450 W at 18 V DC Digital output 2, also output 3 if configured as • Transistor a digital output • Any connection mode, in NPN or PNP mode • Pulse (by default), can be changed by the user • 0...2000 Hz • 5...35 V DC, max. 700 mA • Galvanically isolated, passive • Overload information through diagnostic software function • Protected against overloads • Protected against polarity reversals Mechanical data Dimensions and weight of the device: refer to the technical data sheet regarding the type 8098 available at www. burkert.com English...
  • Page 21 Type 8098 Technicaldata Table 3: Materials in contact with the ambient air Component Material Transmitter housing , sensor housing Stainless steel 304 / 1.4301, outer surface finish Ra < 1.6 µm Cable glands / Blind plugs Nickel plated brass / Black polyoxymethylene (POM) M12 male connector and blind plug Nickel plated brass Pressure compensating element Stainless steel Display Float glass, stainless steel 304 / 1.4301 Seals VMQ silicone Name plate Metallized polyester The housing may have light machining marks due to the manufacturing process. These marks do not affect the operation of the device and are not a manufacturing defect. Table 4: Materials in contact with the fluid Component Material • Sensor measurement tube Stainless steel 316L / DIN 1.4435 BN2...

  • Page 22: Installation And Wiring

    Type 8098 Installationandwiring INSTALLATION AND WIRING Safety instructions DANGER Risk of injury due to electrical voltage. ▶ Before carrying out work on the system, disconnect the electrical power for all the conductors and isolate it. ▶ Observe all applicable accident protection and safety regulations for electrical equipment. Risk of injury due to high pressure in the installation. ▶ Before any intervention on the installation, stop the circulation of fluid, cut off the pressure and drain the pipe. ▶ Before any intervention on the installation, make sure there is no pressure in the pipe. ▶ Observe the fluid temperature-pressure dependency depending on the fitting used. If switched on for a prolonged time, risk of burn injury or fire due to hot device surface ▶ Do not touch with bare hands. ▶ Keep the device away from highly flammable substances and fluids. Risk of burn injury due to high fluid temperatures. ▶ Do not touch with bare hands the parts of the device that are in contact with the fluid. ▶ Use safety gloves to handle the device. ▶ Before opening the pipe, stop the circulation of fluid and drain the pipe. ▶ Before opening the pipe, make sure the pipe is completely empty. Risk of injury due to the nature of the fluid. ▶ Respect the prevailing regulations on accident prevention and safety relating to the use of dangerous fluids. WARNING Risk of injury due to non-conforming installation. ▶...

  • Page 23: Preparing The Device Before Installation Into The Pipe

    Type 8098 Installationandwiring WARNING Risk of injury due to unintentional switch on of power supply or uncontrolled restarting of the installation. ▶ Take appropriate measures to avoid unintentional activation of the installation. ▶ Guarantee a set or controlled restarting of the process subsequent to any intervention on the device. WARNING Risk of injury if the fluid pressure/temperature dependency is not respected. ▶ Observe the fluid temperature-pressure dependency. Refer to Fig. 6 chap. 6.6 Fluid data. ▶ Observe the Pressure Equipment Directive 2014/68/EU. CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. NOTICE The device will be damaged if you use a tool to turn the blind cover or the display module. ▶ Do not use a tool to turn the blind cover or the display module. Preparing the device before installation into the pipe The device is delivered as described in Fig. 1, chap. 5.1. Before installing the device into the pipe, you may: • change the position of the transmitter on the sensor. Refer to chap. 7.2.1. • switch positions of the display module and the blind cover. Refer to chap. 7.2.2. English...

  • Page 24: Changing The Position Of The Transmitter On The Sensor

    Type 8098 Installationandwiring 7.2.1 Changing the position of the transmitter on the sensor The transmitter type SE98 can have four positions on the flow sensor type S097. See 7.2.1. Fig. 8 : Possible positions of the transmitter SE98 → To change the position of the transmitter as it is described in Fig. 1, chap. 5.1., do the following: For safety reasons and to comply with the UL 61010-1 standard, the blind cover and the display module are locked. → Prepare the unlocking magnetic key, that is delivered with the device, to change the position of The blind cover or the display module is the transmitter. locked 1. Put the magnetic key on the mark related to the display module. You should hear a soft click indicating that the display module is unlocked. Do not use a tool to turn the display module. 2. While the magnetic key is on the mark, turn the display module by hand only from the locked...
  • Page 25 Type 8098 Installationandwiring Carefully lift the display module because a cable connects the display module to the transmitter. 4. Push the tab of the cable connector to disconnect the display module from the transmitter. 5. Remove the display module and put it on a clean surface to protect the seal from dirt. Push the tab to unlock the cable connector 6. With an hexagonal key size 3, loosen the screw that is marked with the arrow and that locks the trans- mitter to the flow sensor. 7. Hold the flow sensor with one hand and, with the other hand, turn the transmitter by about 20 deg counterclockwise. English...
  • Page 26 Type 8098 Installationandwiring Lift the transmitter carefully because a cable connects the transmitter to the flow sensor. 9. If the seal is damaged, replace it. Apply a layer of lithium soap grease to the new seal before you put it in place. 10. I f the seal is out of the groove, put it back in the groove. Seal out of the groove: Seal in the groove: NOT correct correct 11. T urn the transmitter in the wanted position. 12. Make sure the cable stays inside the transmitter. 13. T urn the transmitter by about 20 deg counterclockwise. English...
  • Page 27 Type 8098 Installationandwiring 14. S crew the transmitter clockwise on the flow sensor until the blind cover is perfectly parallel or perpen- dicular to the axis of the pipe. 15. F asten the screw with an hexagonal key size 3 at a tightening torque of 1.3 N·m ±0.05 N·m (0.96 ft·lbf ±0.04 ft·lbf) 16. C onnect the display module to the transmitter. 17. P ut the mark of the cover on the unlocked marking of the housing and screw the cover clockwise on the transmitter until the mark is on the locked position. You should hear a click English...

  • Page 28: Switching Positions Of The Blind Cover And The Display Module

    Type 8098 Installationandwiring 7.2.2 Switching positions of the blind cover and the display module CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. The device is delivered with the display module screwed on the top and the blind cover screwed on the housing side. → To switch positions of the display module and the blind cover, do the following: For safety reasons and to comply with the UL 61010-1 standard, the blind cover and the display module are locked. → Prepare the unlocking magnetic key, that is delivered with the device. The blind cover or the display module is locked 1. Put the magnetic key on the mark related to the display module. You should hear a soft click indicating that the display module is unlocked. Do not use a tool to turn the display module. 2. While the magnetic key is on the mark, turn the display module by hand only from the locked position to the unlocked position. If you cannot turn...
  • Page 29 Type 8098 Installationandwiring 6. Put the magnetic key on the mark related to the blind cover. You should hear a click indicating that the blind cover is unlocked. Do not use a tool to turn the blind cover. 7. Turn the blind cover by hand only to the unlocked position and remove it. If you cannot turn the blind cover by hand, contact Bürkert. 8. Engage the cable of the display module through the front opening. Connect the cable here 9. Connect the cable to the connector, as shown in the picture. 10. P ut the mark of the display module on the unlocked marking of the housing and screw the cover clockwise on the transmitter until the mark is on the locked position. 11. P ut the mark of the blind cover on the unlocked marking of the top of the transmitter housing. 12. S crew the blind cover clockwise on the transmitter until the mark is on the locked position. You should hear a click. The blind cover is locked. English...

  • Page 30: Recommendations For The Installation Into The Pipe

    Type 8098 Installationandwiring Recommendations for the installation into the pipe → Protect this device against electromagnetic interference, ultraviolet rays and, when installed outdoors, the effects of the climatic conditions. → Make sure the DN of the measurement tube is suited to the flow velocity: refer to the data sheet of the device, available at www.burkert.com → Choose a location with enough free space to put the magnetic key on the symbol at the rear side of the device. → Install the device upstream a valve or any equipment that changes the pipe diameter or the pipe direction. If the recommendation cannot be respected, install the device in the pipe in such a way that the straight down- stream distances are respected depending on the design of the pipes, refer to standard ISO 9104:1991 and Fig. 9. If these recommendations cannot be respected, contact Bürkert. flow direction 2 x 90° elbow Control valve joint 40 x DN 1 x DN 50 x DN 1 x DN...
  • Page 31 Type 8098 Installationandwiring Kind of process connection Standards the process connections conform to Angle against the horizontal • ASME BPE (DIN 32676 series C) • DIN 32676 series A clamp minimum 3° • DIN 11864-3 series B • DIN 11864-3 series C • DIN 11864-2 series B flange minimum 3° • DIN 11864-2 series C Table 6: Minimum angle against the horizontal for proper self-draining → If the pipe is fitted with a thermal insulation, do not thermally insulate the measurement tube of the device to make sure that the temperature in the device is less than 70°. Refer to Fig. 10 and, for the minimum supply voltage, to chap. 7.5.3. Pipe insulation No pipe insulation Fig. 10 : Thermal insulation of the pipe English...

  • Page 32: Installing The Device Into The Pipe

    Type 8098 Installationandwiring Installing the device into the pipe CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. 7.4.1 Before installing the device into the pipe • Prepare the device as described in chap. 7.2. • Follow the recommendations given in chap. 7.3. 7.4.2 Installing a device with clamp connections The manufacturer of the device does not deliver any gasket for the process connections. → If the installation must be EHEDG-compliant and the device is fitted with clamp connections according to ASME BPE (DIN 32676 series C), DIN 32676 series A, DIN 32676 series B or SMS 3017 / ISO 2852 for pipes according to SMS 3008, use EHEDG-compliant gaskets from Combifit International B.V. →...

  • Page 33: Wiring The Device

    Type 8098 Installationandwiring Wiring the device DANGER Risk of injury due to electrical voltage. ▶ Before carrying out work on the system, disconnect the electrical power for all the conductors and isolate it. ▶ Observe all applicable accident protection and safety regulations for electrical equipment. WARNING Risk of injury due to non-conforming installation. ▶ Fit a circuit breaker or a switch to the electrical installation of the building in which the device is installed. ▶ Install the circuit breaker or the switch in an easily accessible place. ▶ Identify the circuit breaker or the switch as the disconnecting component for the electrical power supply to the device. ▶ Install overload devices that are appropriate to the electrical installation. ▶ Respect standard NF C 15-100 / IEC 60364. Risk of injury due to unintentional switch on of power supply or uncontrolled restarting of the installation. ▶ Take appropriate measures to avoid unintentional activation of the installation. ▶ Guarantee a set or controlled restarting of the process subsequent to any intervention on the device. NOTICE The device is not tight if at least one cable gland is not used ▶ Make sure the unused cable glands are sealed with the supplied plugs. • Use a high quality electrical power supply, filtered and regulated. • Engage only one cable in each cable gland. • Do not install the cables near high voltage or high frequency cables; If this cannot be avoided, observe a min. distance of 30 cm.

  • Page 34: Assembling And Wiring The Female M12 Connector

    Type 8098 Installationandwiring Table 7: Specifications of the cable and wires for the M12 female connector with order code 917116 Specification Recommended value • Electromagnetic protection (EMC) • shielded • max. 0.75 mm • Cross section of the wires • Diameter of the cable • 3 to 6.5 mm • Maximum operating temperature • min. 80 °C 7.5.2 Assembling and wiring the female M12 connector To assemble and wire the female M12 connector with order code 917116, do the following: →...

  • Page 35: Connecting The Device To Büs

    Type 8098 Installationandwiring The device is wired in the factory to be easily energized through the M12 male fixed connector. → Connect the device to a 12...35 V DC power supply: • either through the M12 male fixed connector, refer to chap. 7.5.4. • or through the cable glands and the terminal strip located in the transmitter housing. Refer to chap. 7.5.11 for the wiring procedure. 7.5.4 Connecting the device to büS The M12 male fixed connector (A-coding) is used to connect the device to büS. Malfunction of the internal and external communication if the M12 male fixed connector is not used. • Put a protection cap on an unused M12 fixed connector. • Make sure pins 4 and 5 are not in contact with each other and not in contact with the other pins. → If the device is connected to büS and at one end of büS, either install a 120 W termination resistor in the line or activate the device internal termination resistor: see chap. 7.5.5. The M12 male fixed connector can be used to connect the device to a 12...35 V DC power supply. • Pin 1: CAN shield • Pin 2: 12...35 V DC • Pin 3: GND • Pin 4: CAN_H • Pin 5: CAN_L Fig. 13 : Pin assignment of the M12 male fixed connector Cable and conductors connected inside the device to the M12 fixed connector...

  • Page 36: Activating The Device Internal Termination Resistor

    Type 8098 Installationandwiring 7.5.5 Activating the device internal termination resistor The device has an internal termination resistor that can be activated if the device is installed at one end of büS. If you activate the device internal termination resistor, do not install a termination resistor at the same end of büS. To activate the device internal termination resistor, do the following: → Go to the CONFIGURATION view. → General settings → Confirm to access the Parameter view. → büS → Advanced → Termination resistor → → Save. The internal termination resistor is activated. 7.5.6 Specifications of the cables for the two M20x1,5 cable glands Table 8: Specifications of the cables for the M20x1.5 cable glands Specification of the cables...

  • Page 37: Terminal Assignment Of The Terminal Strip

    Type 8098 Installationandwiring 7.5.8 Terminal assignment of the terminal strip The terminal strip located in the transmitter housing, has 12 push-in terminals. 1 2 3 4 5 6 7 8 9 1 1 1 2 Green LED Orange LED • Green LED: - flashes slowly if the operation of the device is correct. - flashes quickly if there is a communication problem with the measurement board. • Orange LED lit if the related digital output is switched to ON. • Terminal 1: GND (blue wire, factory wired, internally connected to the M12 male fixed connector) • Terminal 2: CAN_L (grey wire, factory wired, internally connected to the M12 male fixed connector) • Terminal 3: Shield (brown wire, factory wired, internally connected to the M12 male fixed connector) • Terminal 4: CAN_H (black wire, factory wired, internally connected to the M12 male fixed connector) • Terminal 5: 12...35 V DC (white wire, factory wired, internally connected to the M12 male fixed connector) • Terminal 6: GND (for the connection of the power supply through the cable glands)

  • Page 38: Opening The Front To Have Access To The Terminal Strip

    Type 8098 Installationandwiring 7.5.9 Opening the front to have access to the terminal strip The terminal strip can be accessed by opening the front of the transmitter housing, i.e. by removing either the blind cover or the display module. Procedure to access the terminal strip if the blind cover is on the front of the device 1. Put the magnetic key on the mark related to the blind cover. You should hear a click indicating that the blind cover is unlocked. Do not use a tool to turn the blind cover. 2. Turn the blind cover by hand to the unlocked position and remove it. Fig. 17 : Procedure to access the terminal strip if the blind cover is on the front of the device Procedure to access the terminal strip if the display module is on the front of the device 1. Remove the blind cover from the top of the transmitter.

  • Page 39: Wiring The Device Through The M20X1,5 Cable Glands

    Type 8098 Installationandwiring 7.5.10 Wiring the device through the M20x1,5 cable glands Engage only one cable in each cable gland. → Prepare cables that obey the specifications given in chap. 7.5.6 and chap. 7.5.7. → To open the front of the transmitter, follow the 2 screws instructions given in chap. 7.5.9. 1. With an hexagonal key size 10 loosen the 2 screws of the functional earth plate. 2. Strip 100 mm of the cable. 8 mm 3. Reduce the shield to 20 mm. 4. Expose 8 mm of the wires. 20 mm 100 mm ±5 5. Remove the plug of the cable gland. 6. If the cable diameter is between 5 and 9 mm, engage the cable through the cable gland as shown in the figure.
  • Page 40 Type 8098 Installationandwiring 8. Attach each cable to the functional earth plate. The shield must be in contact with the functional earth plate. 9. Put the functional earth plate in its original place. Functional earth 10. W ith an hexagonal key size 10, tighten the 2 screws of the functional earth plate at a tightening torque of 0.2 N·m. 2 screws IT IS NOT MANDATORY TO CONNECT THE DEVICE TO A PROTECTIVE EARTH - MEANT FOR FUTURE USE 11. E ngage each wire in the correct terminal of the terminal strip. 12. T o connect the 12...35 V DC power supply through the cable glands, refer to chap. 7.5.11. 13. T o connect the outputs, refer to chap. 7.5.12 and chap. 7.5.13. 14. C onnect the functional earth to the functional earth plate as shown in Fig. 20, chap. 7.5.11. 15. I f the display module is removed, connect it back. 16. C lose the front and the top of the transmitter housing Fig. 19 : Wiring the device through the M20x1,5 cable glands English...

  • Page 41: Connecting The Device To A 12

    Type 8098 Installationandwiring 7.5.11 Connecting the device to a 12...35 V DC power supply, through the cable glands 1. With a slot screwdriver 3.0 mm (any length) and a force of max. 40 N, push the terminal 5 and disconnect the white wire. Do not cut the white wire. 2. Insulate the white wire. 3. Connect the power supply as shown in Fig. 20. To connect to the positive 12...35 V DC power supply for the device, through a cable gland To connect to the negative power supply for the device, through a cable gland Green LED flashes slowly if the operation of the device is correct 1 2 3 4 5 6 7 8 9 1 1 2 Internally connec- ted to the M12 fixed connector...

  • Page 42: Wiring The Output 1 (Analogue) And The Output 3 Configured As An Analogue Output

    Type 8098 Installationandwiring Fig. 21 : Device connected to a 12...35 V DC power supply, through the cable glands 7.5.12 Wiring the output 1 (analogue) and the output 3 configured as an analogue output NOTICE Risk of short-circuit if the configuration of output 3 is wrong. ▶ Before wiring the output 3 as an analogue output, make sure the output 3 is configured as an analogue out- put in the Parameters menu of the Outputs. See chap. 8.10 Changing the type of the output 3. An analogue output can be wired either in sourcing mode or in sinking mode. 1 2 3 4 5 6 7 8 9 1 1 2 12-35 V DC 12-35 V DC...

  • Page 43: Wiring The Output 2 (Digital) And The Output 3 Configured As A Digital Output

    Type 8098 Installationandwiring 7.5.13 Wiring the output 2 (digital) and the output 3 configured as a digital output NOTICE Risk of short-circuit if the configuration of output 3 is wrong. ▶ Before wiring the output 3 as a digital output, make sure the output 3 is configured as a digital output in the Parameters menu of the Outputs. See chap. 8.10 Changing the type of the output 3. A digital output can be wired either in NPN mode or in PNP mode. Orange LED is lit if the related digital output is switched to ON 1 2 3 4 5 6 7 8 9 1 1 2 12-35 V DC 12-35 V DC Power supply for Power supply for...

  • Page 44: How To Do The Settings

    Available software to do the settings The settings of the device can be done with: • the display module type ME31. The device can be equipped with a display module or not. • the Bürkert Communicator software type 8920, which must be installed on a PC. The menu structure is the same in the display module and in the Bürkert Communicator software. → To do the settings of the device with the display module type ME31, refer to the next chapters of the Quickstart and to the Operating Instructions type 8098. → To use the Bürkert Communicator software, first prepare the necessary hardware and the software itself. Refer to chap. 8.3. Then do the settings as described in the Operating Instructions type 8098. → To use some specific functions that are only available with the Bürkert Communicator software, refer to the Operating Instructions type 8920, available on the internet at www.burkert.com → To get detailed information on the software of the display module type ME31, refer to the related Operating Instructions, available on the internet at www.burkert.com Preparing the Bürkert Communicator software To do the settings with the Bürkert Communicator software type 8920, do the following steps: 4. Buy the USB-büS-interface set with order code 772426. Download the latest version of the Bürkert Communicator software type 8920 from www.burkert.com 6. Install the Bürkert Communicator software on a PC. Obey the installation recommendations given in the USB- büS-Interface set. During installation, the büS stick must not be plugged in the PC. 7. Screw the termination resistance into the Y plug or activate the device internal termination resistor (see chap. 7.5.5) 8. Screw the female M12 connector at the end of the delivered cable into the Y plug.
  • Page 45 Type 8098 Howtodothesettings 11. C onnect the cable of the AC/DC adapter to the related connector of the female M12 connector. Termination Female M12 resistance connector büS stick Power adapter Y plug AC/DC adapter micro-USB Cable of the AC/DC adapter Fig. 24 : Assembled connection cables, plugs and büS stick 12. S crew the Y plug on the male M12 connector of the device. 13. I nsert the büS stick into a USB port of the PC. 14. W ait for the Windows pilot of the büS stick to be completely installed on the PC. 15. C onnect the AC/DC adapter to the power supply. 16. S tart the Bürkert Communicator software. 17. C lick on in the Bürkert Communicator software to establish the communication between the Bürkert Com- municator software and the device. A window opens.

  • Page 46: Display Module: Description Of The User Interface

    Type 8098 Howtodothesettings Display module: description of the user interface To get detailed information on the display software, refer to the Operating Instructions of the display software type ME31, available on the internet at www.burkert.com The user interface is made up of a display and touch sensitive keys. View 1 of 4 Display Volume flow 30.1 l/min BACK key Navigation keys OK key Fig. 25 : Overview of the user interface English...

  • Page 47: Description Of The Display

    Type 8098 Howtodothesettings 8.4.1 Description of the display Symbol of the active user level. See chap. 8.5 Available login user levels. Symbol of the device status Information bar Display Parameter To the DIAG- Brightness NOSTICS menu, by Contrast pressing Screen saver Name of the customized view or of the menu SAW sensor Title of the menu or of Parameter the menu item Stand. meas. values [+] Add. meas. values [+] To the MAINTENANCE menu, by pressing Diag. events Refresh time Long More menu items are available The symbol [+] at the end of a menu item means that sub-menu items are available. Fig. 26 : Description of the display (examples) English...

  • Page 48: How To Use The Touch Sensitive Keys

    Type 8098 Howtodothesettings 8.4.2 How to use the touch sensitive keys The highlighted terms are related to menus or menu items. Table 10: How to use the keys Description Short press: to go back to the parent menu or to the parent view. This key is called BACK in the display messages. If the user makes changes but does not save these, then a message is displayed asking if the changes should be saved. Long press: to go back to View 1 If one or both keys are displayed: • To switch between views, from the left to the right and vice versa. Only possible between the views that can be customized and the CONFIGURATION view, and between the Diagnostics, Parameter and Maintenance views. • When being asked to enter a value, to select the digit to the left or the digit to the right. • To select a Menu item. • To select an option or to change a value. This key is called OK in the display messages. Short press: • to confirm a selection. • to save a choice.

  • Page 49: Default Settings

    • Password required, if the password protection is active. Default password is 005678. Advanced user • The menu items with the symbol are in read-only access. • Not all the menu items that are available with a higher user level are displayed. • Password required, if the password protection is active. Default password is 001946. • This level is active by default (and by default, password protection is switched Installer off). • All the available menu items can be adjusted. • Password required, if the password protection is active. Bürkert • Only for Bürkert service. Table 11: Possible login user levels displayed in the information bar, only if the adjustment is protected through passwords. → If you have forgotten your passwords, you can restore the default passwords with the Communicator software type 8920. Refer to the related Operating Instructions. Default settings You can find the default settings of the device in the CANopen supplement for the type 8098 at www.burkert.com → Before making any change in the settings, use the Bürkert Communicator software to print a pdf file with all the default settings of the device. English...

  • Page 50: Menu Structure

    Type 8098 Howtodothesettings Menu structure View 1 of 4 CONFIGURATION Volume flow 30.1 SAW sensor To navigate through the list of l/min available menu items Configuration view First view, displayed after energizing the device, that can be changed by the user Press to access the displayed menu item (for example, the item "SAW sensor") Long press, from any view SAW sensor SAW sensor SAW sensor Parameter Diagnostics Maintenance Stand. meas. values [+] Device Device information [+] Add. meas. values [+] Diag. events Flow direction Standa... Diag. events Sensor Calibration Refresh time Long Simulation Diagnostics view Parameter view...

  • Page 51: Opening Or Closing The Context Menu In Any View (Display Module Only)

    Type 8098 Howtodothesettings 8.7.1 Opening or closing the context menu in any view (display module only) The user can open a context menu in any view. The content depends on the active view. To open the context menu: → Press and hold T he context menu is open. To close the context menu without leaving the active view: → Press T he context menu is closed. Context menu content depending on the view: View Menu items of the context menu To display the list of messages generated by the device, if any. Messages overview See chap. 8.7.3. Add new view To add a new view or to delete the displayed view. Delete this view Change layout To choose to display 1, 2 or 4 values or a trend of 1 or 2 values. Change title To change the title of the displayed view. Views 1 to 4 Change value To change the value(s) or the units of the values displayed in the...

  • Page 52: Adding Your Own Context Menu Items (Shortcuts, Display Module Only)

    Type 8098 Howtodothesettings View Menu items of the context menu Messages overview To display the list of messages generated by the device, if any. Save To save the changes. To display the access path to the displayed menu item. Not Where am I? available in a wizard. in a menu Add shortcut To create or delete your own context menu items (see chap. 8.7.2) Delete shortcut Change user level To change the user level. Table 12: Context menu depending on the view 8.7.2 Adding your own context menu items (shortcuts, display module only) If you are in the Parameter, Maintenance or Diagnostics view or in a menu, you can add up to 3 shortcuts to the context menu. Then these shortcuts appear in every context menu and allow the user to jump directly to the selected view or menu item.

  • Page 53: Reading Out The Messages Generated By The Device

    → Delete shortcut Confirm. T he shortcut to this view or to this menu item is deleted from the context menu. 8.7.3 Reading out the messages generated by the device The device generates messages to inform you, for example, that a problem has occurred or that a process value limit has been reached. → To read out the messages in the Bürkert Communicator software, refer to the Operating Instructions type 8920, available on the internet at www.burkert.com Do the following to display the generated messages on the display module: → long press, to open the context menu. → Messages overview Confirm. The generated messages are displayed. Some messages can be acknowledged. 8.7.4 Changing the login user level if the adjustment is not protected through passwords By default: • the Installer user level is active on the device,...

  • Page 54: Changing The Login User Level If The Adjustment Is Protected Through Passwords

    Type 8098 Howtodothesettings 8.7.5 Changing the login user level if the adjustment is protected through passwords If the adjustment is protected through passwords, the symbol related to the active user level is displayed in the information bar. → To change the login user level in the Bürkert Communicator software, refer to the Operating Instructions type 8920, available on the internet at www.burkert.com Do the following to change the login user level on the display module: → long press, to open the context menu. → Change user level Confirm. → Choose Logout (not available if the basic user is logged in) Confirm. → long press, to open the context menu. → Change user level Confirm. → Choose the user level Confirm. → Enter the password Confirm.

  • Page 55: Reading Out The Access Path To A Menu Item (Display Module Only)

    Type 8098 Howtodothesettings 8.7.7 Reading out the access path to a menu item (display module only) If you are lost in the menu structure, you can display the access path. → long press, to open the context menu. → Where am I? Confirm. Read out the access path to the displayed menu item. How to navigate in the menus and to adjust values 8.8.1 Adjusting a percentage or selecting a value in a list Display Parameter Brightness...

  • Page 56: Navigating In A Wizard And Adjusting Numbers

    Type 8098 Howtodothesettings 8.8.2 Navigating in a wizard and adjusting numbers General settings Parameter Quick start Diagnostics  Date and time  Language English Confirm Parameter Current date/time 1/9 Current date:08/24/15 Current time:08:57:16 Daylight savings Current time zone:+00:London Go back to the previous screen (available at each step of the wizard) Confirm to go to next screens. Adjust the values. Parameter Year max: 2099 2015 min: 2000 Adjust selected Select a digit digit Confirm to go to next screens. Adjust the values. Parameter New date/time New date:09/22/15...

  • Page 57: Setting Negative Or Positive Numbers

    Type 8098 Howtodothesettings 8.8.3 Setting negative or positive numbers Settings Error low max: 150.00 -020.000 min: -20.00 To set a positive number: → to increase the number until the positive value is reached. Settings Error low max: 150.00 010.000 min: -20.00 To set a negative number: → to decrease the number until the negative value is reached. Fig. 31 : Setting negative or positive numbers English...

  • Page 58: Entering A Name

    Type 8098 Howtodothesettings 8.8.4 Entering a name SAW sensor Parameter Stand. meas. values [ +] Add. meas. values [+] Diag. events Refresh time Long Confirm SAW sensor Stand. meas. values Volume flow Temperature Liquid velocity Totalizer 1 Confirm SAW sensor Volume flow Value name Volume flow Damping  Limits Cut-off Confirm Volume flow Confirm selected Value name Go to character Go to OK character Save the name Volume flow SPACE...

  • Page 59: Activating Or Deactivating A Feature

    Type 8098 Howtodothesettings 8.8.5 Activating or deactivating a feature General settings Parameter Date and Time  Language English Passwords Physical units Confirm Parameter Passwords Password protection Off Confirm Passwords Password protection Deactivate / Activate Save Fig. 33 : Activating or deactivating a feature Quick start Doing the adjustments when energizing the device for the first time (display module only) When the device is energized for the first time, the user is guided to make the following settings, which must be done:...

  • Page 60: Changing The Type Of The Output 3

    Type 8098 Howtodothesettings When the device has finished the uploading step, the first screen of the Quick start is displayed. → Display → Choose the display language Confirm. The current date and time settings are displayed in the chosen language. → Choose the time zone Confirm. → Choose if the daylight saving (summer time) is automatically taken into account (On) or not (Off) for the display of the time. Confirm. → Set the year Confirm. → Set the month Confirm. → Set the day Confirm. → Set the hours Confirm. → Set the minutes Confirm. The new date and time settings are displayed. → Choose the unit system for all the measurements Confirm. → Save the Quick start settings or Go back to the parent menu without saving the new settings. 8.10 Changing the type of the output 3 NOTICE Risk of short-circuit if the configuration of output 3 is wrong.

  • Page 61: Maintenance And Troubleshooting

    ▶ Stop the circulation of fluid, cut off the pressure and drain the pipe before loosening the process connections. Risk of injury due to high fluid temperatures. ▶ Use safety gloves to handle the device. ▶ Stop the circulation of fluid and drain the pipe before loosening the process connections. Risk of injury due to the nature of the fluid. ▶ Respect the regulations on accident prevention and safety relating to the use of aggressive fluids. WARNING Risk of injury due to non-conforming maintenance. ▶ Maintenance must only be carried out by qualified and skilled staff with the appropriate tools. ▶ Ensure that the restart of the installation is controlled after any interventions. CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. Information to return the device to the manufacturer or to the reseller → To return the device for calibration or any after sales service, use the original packaging. → Send the device back to your local Bürkert sales office. The addresses of our international sales offices are available on the internet at www.burkert.com English...

  • Page 62: Cleaning The Outer Surface Of The Device

    Type 8098 Maintenanceandtroubleshooting Cleaning the outer surface of the device • Always use a cleaning agent compatible with the materials from which the device is made. • Pay special attention to the cable glands which are made of nickel plated brass. The outer surface device can be cleaned with a cloth slightly dampened water or with a detergent compatible with the materials the device is made of. Please feel free to contact your Bürkert supplier for any additional information. Cleaning In Place (CIP) of the device The measurement tube of the device can be cleaned in place in all the applications the device is used in. → Do the cleaning in place procedure at appropriate intervals to prevent malfunctions or contamination. NOTICE The device and the seals used on the process connections can be damaged by the cleaning agents or the disinfecting agents. ▶ Use cleaning agents or disinfecting agents with a concentration that is compatible with the material the meas- urement tube is made of. ▶ Check the chemical compatibility of the cleaning agents or disinfecting agents with the materials of the seals used on the process connections. ▶ For more information on the chemical compatibility and the cleaning temperatures contact your local Bürkert sales office. ▶ Obey the cleaning in place procedure that is suited for your application. Procedure for the cleaning in place of the device: →...

  • Page 63: Sterilisation In Place (Sip) Of The Device

    Type 8098 Maintenanceandtroubleshooting → Blow air through the measurement tube to remove moisture and to ensure maintenance of a good passive layer. → If needed, do a de-scaling by letting a solution made of water, nitric acid HNO [15...20%] and hydrofluoric acid HF [2...5%] at a temperature between 20 °C and 60 °C circulate through the measurement tube for 5 to 30 minutes. → After a de-scaling, or to prevent any corrosion effects after 1 or more (depending on the application) CIP- procedures, do a passivation by letting a solution made of water and nitric acid HNO [3...5%] at a temper- ature between 70 °C and 80 °C circulate through the measurement tube for the same duration as the CIP- procedure. Then, rinse the measurement tube with water with the best quality available in the factory (ideally, water for injection or purified water) at the same conditions as the other rinses. → Blow air through the measurement tube to remove moisture and to ensure creation of a uniform passive layer. Sterilisation In Place (SIP) of the device The measurement tube of the device can be sterilised in place in all the applications the device is used in. → Do the sterilisation in place procedure using dry saturated steam at a temperature between 121 °C and 140 °C for max. 1 hour. Troubleshooting, when no message is displayed Problem The display is OFF Possible cause The device is not energized 1. Check the wiring.
  • Page 64 Type 8098 Maintenanceandtroubleshooting Symbol Status Description • Malfunction, Failure, error or fault • or monitored values in the error range. Ongoing work on the device (for example, checking the correct behaviour of Function check the outputs by simulating measurement values); the output signal is tempo- rarily invalid (e.g. frozen). The ambient conditions or process conditions for the device are outside the permitted ranges. Out of specification Device internal diagnostics point to problems in the device or with the process properties. The device is in controlled operation, however function is briefly restricted. Maintenance required → Do the required maintenance operation. Table 13: Device status symbols English...

  • Page 65: Spare Parts And Accessories

    Type 8098 Sparepartsandaccessories SPARE PARTS AND ACCESSORIES ATTENTION Risk of injury and/or damage caused by the use of unsuitable parts. Incorrect accessories and unsuitable replacement parts may cause injuries and damage the device and the sur- rounding area. ▶ Use only original accessories and original replacement parts from Bürkert. Spare part or accessory Order code Unlocking magnetic key 690309 5 pin M12 female straight cable plug with 917116 plastic threaded locking ring, to be wired 5 pin M12 female and 5 pin M12 male straight cable plugs, moulded at each end of a 1 m 772 404 shielded cable 5 pin M12 female and 5 pin M12 male straight cable plugs, moulded at each end of a 3 m 772 405 shielded cable Female M12 connector with a 120 W termi- 772424 nation resistor Y plug adapter for the male M12 connector 772420 USB-büS-Interface set 772426 English...

  • Page 66: Packaging, Transport

    Type 8098 Packaging,Transport PACKAGING, TRANSPORT CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. NOTICE Damage due to transport Transport may damage an insufficiently protected device. ▶ Transport the device in shock-resistant packaging and away from humidity and dirt. ▶ Do not expose the device to temperatures that may exceed the admissible storage temperature range. ▶ Protect the electrical interfaces using protective plugs. STORAGE CAUTION Risk of injury due to a heavy device. A heavy device can fall down during transport or during installation and cause injuries. ▶ Transport, install and dismantle a heavy device with the help of another person. ▶ Use appropriate tools. NOTICE Poor storage can damage the device. ▶ Store the device in a dry place away from dust. ▶ Storage temperature of the device: –20...+70 °C. DISPOSAL OF THE DEVICE NOTICE Damage to the environment due to parts contaminated by the fluid.
