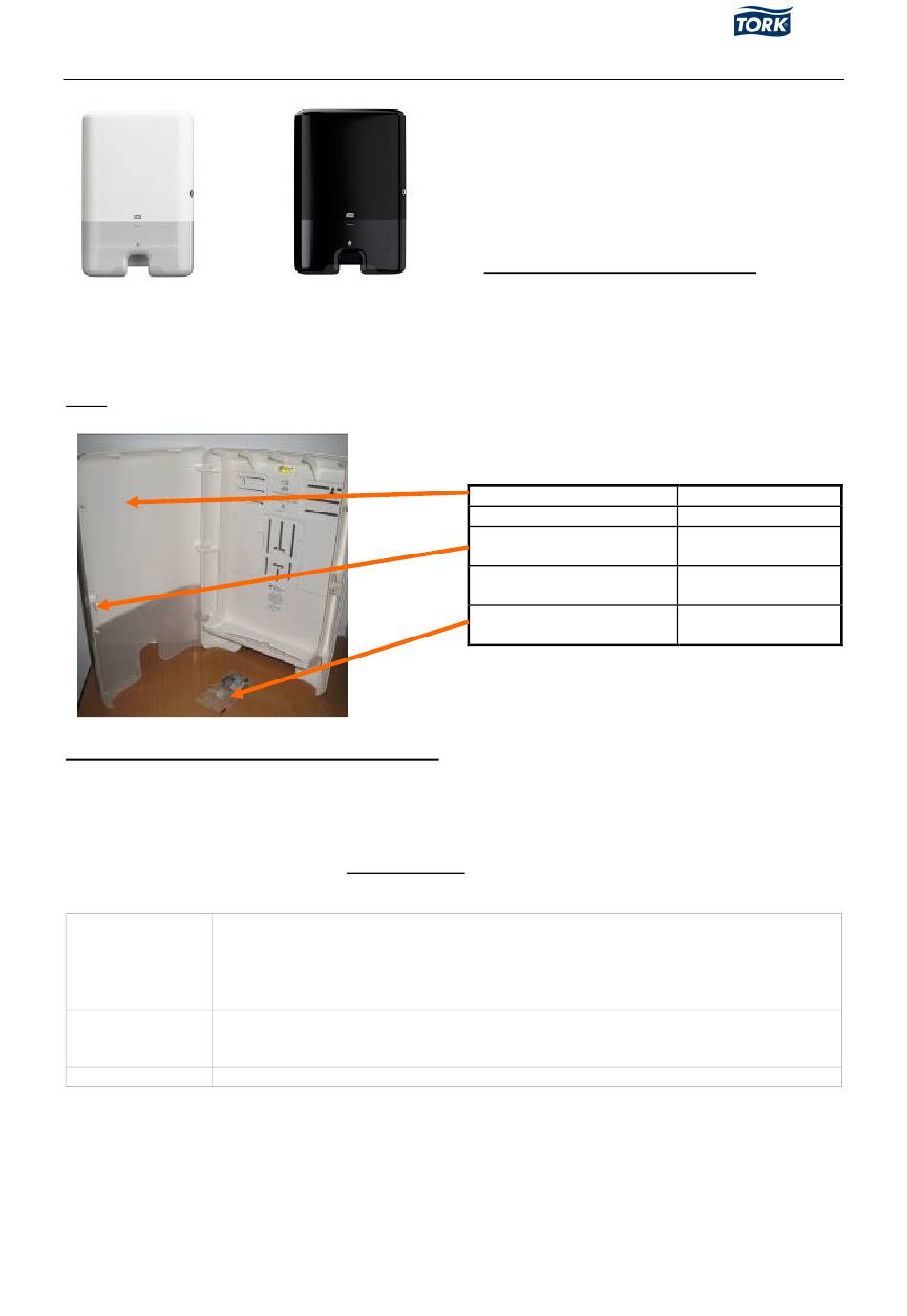

Washroom Dispenser Service and Parts Manual
Tork Elevation H2 Xpress Interfold Towel Dispenser
552020; 552028
Parts
Part Description with Replacement Instructions
Parts with SKUs listed are available for order as of the revision date on the manual. Contact an SCA
Sales Representative or the SCA Tissue Quality Coordinator to order these parts.
If no SKU is listed, the availability of the part is unknown. Please contact the SCA Tissue Quality
Coordinator for more information (see Contacting SCA section).
Replacement SKU
225520A
H2 ELEVATION HOOD (White or Black)
225521A
The hood for the 552020 or 552028 can be removed without any tools. Open the
cover. Start at the bottom hinge. Push hinge pivot on cover up to disengage from
back. Once bottom hinge is free, top hinge can then be pushed over rib and cover
can be removed.
205502
ELEVATION LOCK (White or Black)
205503
The lock can be replaced by pressing the plastic tabs on each side to free the lock
from the opening. A new lock can be snapped in place.
200260 KEY
SCA 200260 KEY FOR ALL TORK DISPENSERS
Description & Replacement Instructions

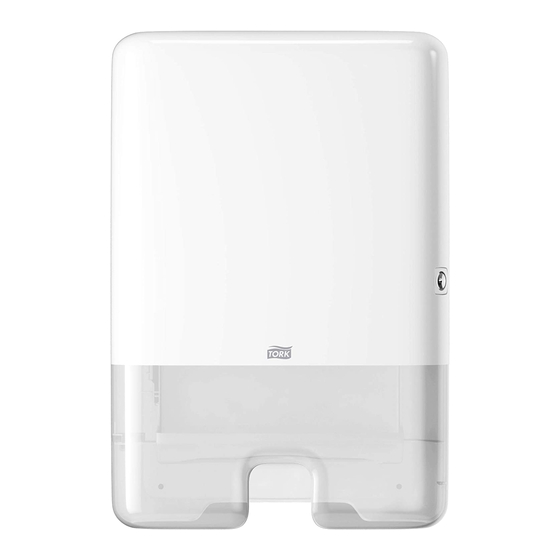

Tork Elevation H2 Xpress Interfold Towel
Dispenser (360 capacity):
H2 Xpress System: 552020 (white)
H2 Xpress System: 552028 (black)
Dispenser Dimensions HxWxD Inches (cm):
17.5 x 11.9 x 4.0 (44.4x 30.2 x 10.1 cm)
H2 Xpress Towel Product Options:
100297 (Tork Premium, 4 Panel)
101290 (Tork Advanced, 4 Panel)
101291 (Tork Advanced, 3 Panel)
Part Description
H2 ELEV HOOD (White)
H2 ELEV HOOD (Black)
ELEVATION LOCK
(White)
ELEVATION LOCK
(Black)
200260 KEY FOR ALL
TORK DISPENSERS
1 of 8
Revision Date: 4-10-12
Replacement SKU
225520A
225521A
205502
205503
200260 KEY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tork Elevation H2 Xpress
Summary of Contents for Tork Elevation H2 Xpress
- Page 1 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 Tork Elevation H2 Xpress Interfold Towel Dispenser (360 capacity): H2 Xpress System: 552020 (white) H2 Xpress System: 552028 (black) Dispenser Dimensions HxWxD Inches (cm): 17.5 x 11.9 x 4.0 (44.4x 30.2 x 10.1 cm)
- Page 2 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 Mounting and Filling Instructions Installation instruction sheet and mounting template are provided inside each carton. 2 of 8...
- Page 3 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 3 of 8...
- Page 4 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 Preventive Maintenance The dispenser should be cleaned any time there is heavy paper dust build-up inside the dispenser. If paper dust is not a problem, approximately every year is a good frequency for cleanings. The following is the recommended procedure to cleaning: 1) Open the dispenser and remove the remaining towels.
- Page 5 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 Contacting SCA To contact the SCA Tissue Quality Coordinator, dial 1-866-722-6659 and press 6. If asked for the date code on the dispenser, see instructions below.
- Page 6 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 552020 552028 - Tork Elevation H2 Xpress Interfold Hand Towel Dispenser Mounting Hole Dimensions (mm) 6 of 8...
- Page 7 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 4-10-12 Recommended Mounting Height (standard access) Bottom of towel dispenser to be located 47.25” (120cm) above finished floor. Recommended Mounting Height (ADAAG Guideline) 4.22.7 Controls and Dispensers.
- Page 8 High and Low - Side Reach Limits Under 4.4.1, the Elevation H2 Xpress dispenser can be located on any wall surface because it protrudes 4” or less. It will comply with ADAAG regulations as long as it is mounted at the appropriate height for the approach specified above.
