Tork 209303A Service And Parts Manual

Washroom dispenser

Washroom Dispenser Service and Parts Manual

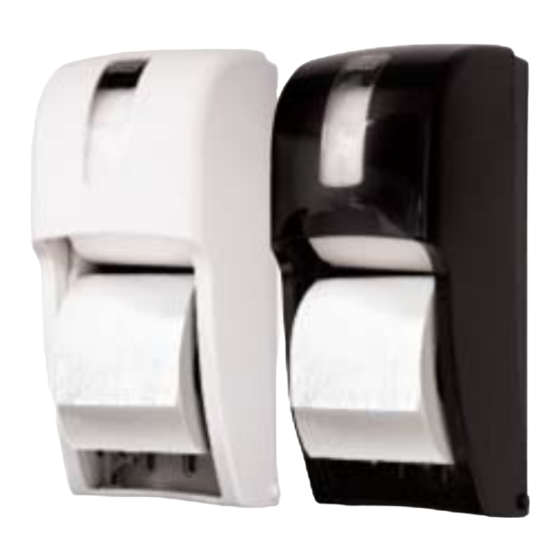

Tork Bath Tissue Roll Dispenser

209303A, 209305A

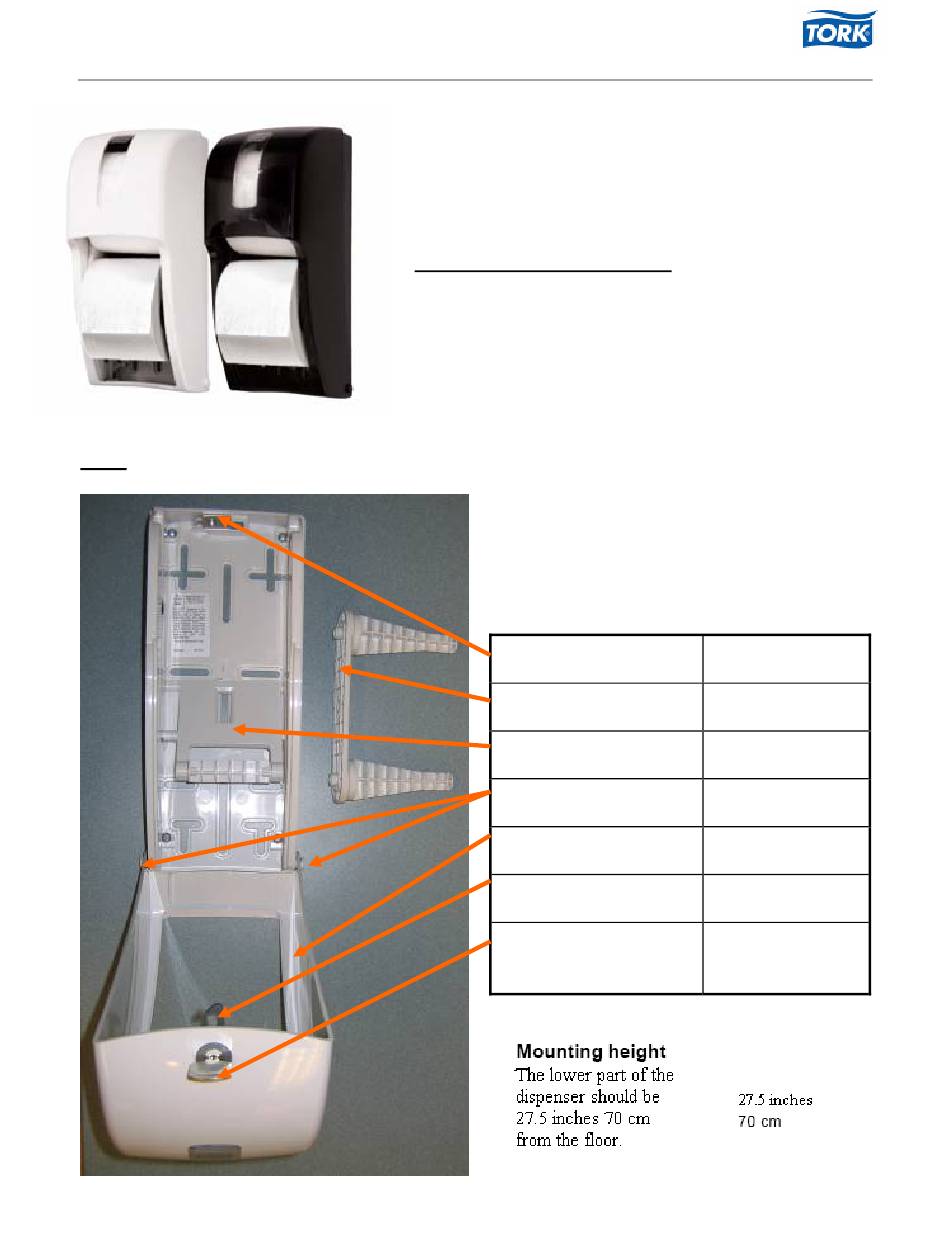

Parts

Tork Bath Tissue Roll Dispenser:

T26 System: 209303A (white), 209305A (quartz)

Dispenser Dimensions HxWxD (Inches):

14.2 x 6.3 x 6.46 (36.07 x 16 x 16.41 cm)

Bath Tissue Product Options:

110292A (Tork Advanced, 2 Ply, 1000 sheets)

110291A (Tork Advanced, 1 Ply, 2000 sheets)

Part Description

STRIKE PLATE

MANDREL

HOOD PINS

HOOD

TORK LOCK

200260 KEY FOR

ALL TORK

DISPENSERS

1 of 5

Revision Date: 2-17-10

Replacement SKU

200262-10 or

200262-20

200260 KEY

Table of Contents

Do you have a question about the 209303A and is the answer not in the manual?

Page 1 Tork Bath Tissue Roll Dispenser 209303A, 209305A Revision Date: 2-17-10 Tork Bath Tissue Roll Dispenser: T26 System: 209303A (white), 209305A (quartz) Dispenser Dimensions HxWxD (Inches): 14.2 x 6.3 x 6.46 (36.07 x 16 x 16.41 cm) Bath Tissue Product Options:...
Page 2 Tork key. Remove the mandrel by pulling it downward and out of the dispenser (1a) and install unwrapped Tork bath tissue as shown (1b). Do not try to pull the mandrel up through the top of the dispenser. 2 of 5...
Page 3 (2d). Preventive Maintenance The Tork Bath Tissue dispenser should be cleaned any time there is heavy paper dust build-up inside the dispenser. If paper dust is not a problem, approximately every year is a good frequency for cleanings. The following is the recommended procedure to cleaning: 1) Open the dispenser and remove the rolls of paper.
Page 4 Before contacting SCA, locate and make note of the date code of the dispenser. The date code for the 209303A and 209305A should be on a sticker on the inner back wall of the dispenser. To contact the SCA Tissue Quality Coordinator, dial 1-866-722-6659 and press 6.
Page 5 Washroom Dispenser Service and Parts Manual Tork Bath Tissue Roll Dispenser 209303A, 209305A Revision Date: 2-17-10 209303A – 209305A Tork Bath Tissue Roll Dispenser Mounting Instructions 5 of 5...

209305a
