Washroom Dispenser Service and Parts Manual
Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design
5510202; 5510282
Dispenser Parts
Essity Internal
Tork Elevation H1 Matic Towel Dispenser:
H1 Matic System
5510202 White; 5510282 Black
Dispenser Dimensions HxWxD Inches (cm):
14.65 x 13.26 x 7.99 (37.2 x 33.7 x 20.3)
H1 Roll Towel Product Options:
Roll Towel Product Options:
290094 - Tork Premium Extra Soft, White
290096 – Tork Premium Soft, White
290095 - Tork Advanced Soft, White
290092A - Tork Advanced, White
290089 - Tork Advanced, White
290088 - Tork Universal, Natural
290087 - Tork Advanced, White

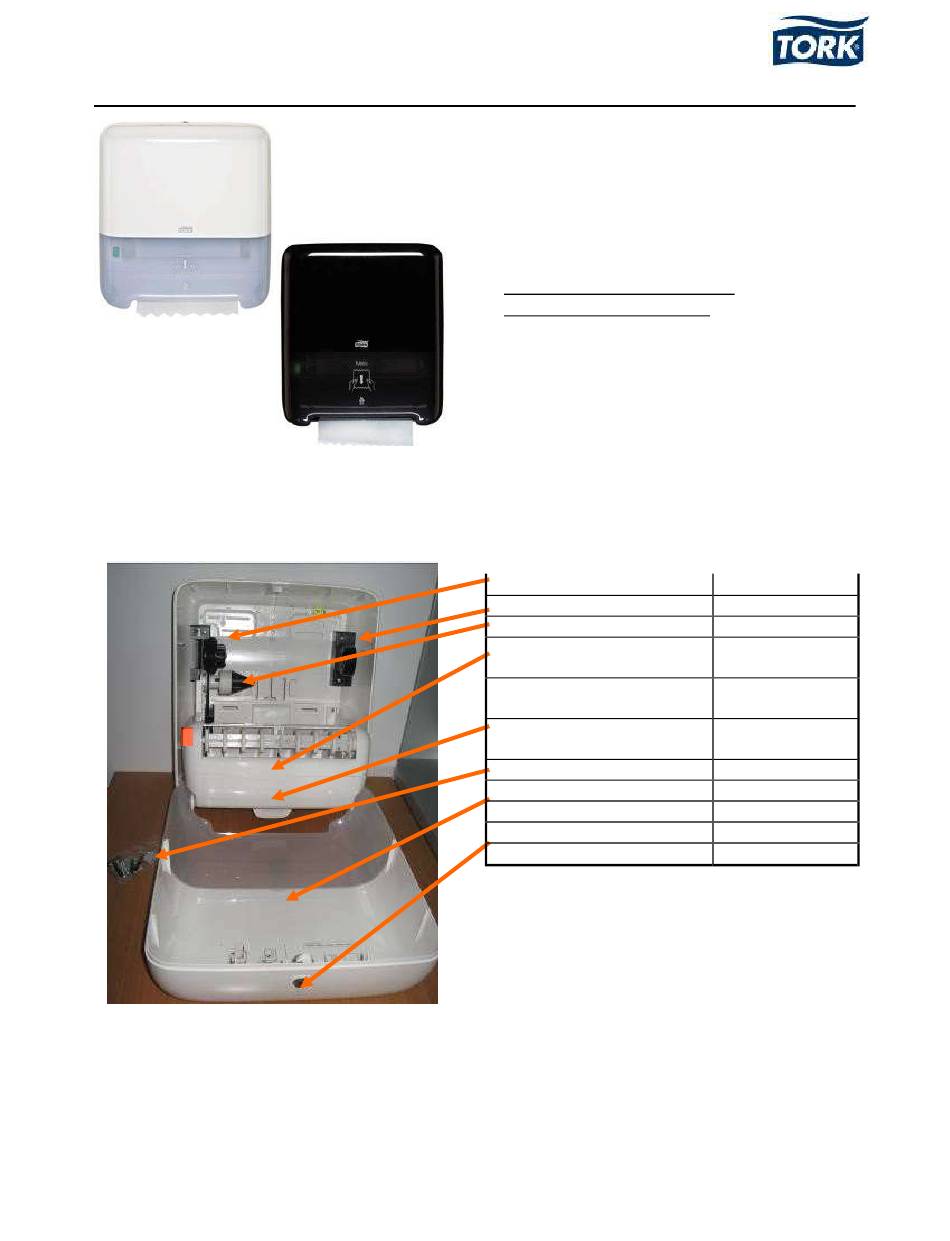

Part Description
Hub Holder/Left Arm
Pin Holder/Right Arm
Brake Arm
H1 Elevation Matic Cassette
(White)
H1 Elevation Matic Cassette
(Black)
Cassette Cover (opens to clear
paper jam)
Metal Key for Tork Dispensers
H1 Elevation Cover (White)
H1 Elevation Cover (Black)
Elevation Lock (White)
Elevation Lock (Black)
1
of
16
Revision Date: 3-13-18
Replacement SKU
225531P
225530P
2255111
2255121
200260 KEY
225518A
225519A
205502
205503
Advertisement
Table of Contents
Related Manuals for Tork Matic H1
Summary of Contents for Tork Matic H1
- Page 1 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Tork Elevation H1 Matic Towel Dispenser: H1 Matic System 5510202 White; 5510282 Black Dispenser Dimensions HxWxD Inches (cm): 14.65 x 13.26 x 7.99 (37.2 x 33.7 x 20.3)

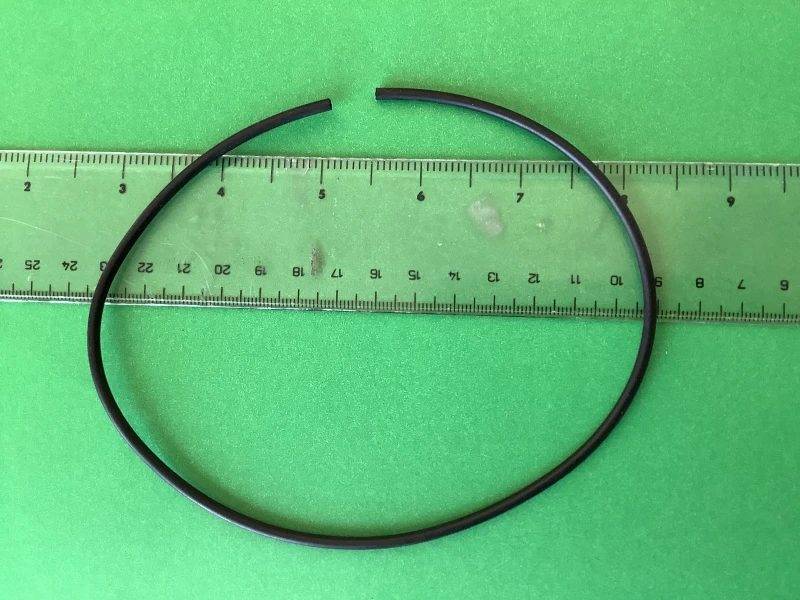

- Page 2 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Cassette Parts Parts Description Replacement SKU Large Elastic Ring 116mm 225515 Small Spring for Paper Brake 203025 Large Spring (RED) for Cutting...
- Page 3 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Replacing the H1 Matic Cassette: 2255111 (White); 2255121 (Black) Replacement cassette goes over and slides into two console hooks 1.
- Page 4 3. To attach the new spring, first insert the rear part on the plastic pin, then insert the front part of the spring into the fitting hole. Replacing Spring for Cylinder: 203024E Note: Be sure to order correct part. Spring is color-coded. Red spring is for Tork Elevation. Blue Spring is for Box 2000. 203024 Blue (Box 2000)
- Page 5 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Replacing the plastic pinion gear & bearing (P/N 225513) with a metal pinion gear & bearing: FIRST: Lift up on bottom right...
- Page 6 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Replacing the Protection Roll: 205513 (White); 205514 (Black) 1. Bend out the fitting hole on the left side. 2. Take out the protection roll (without damaging the elastic ring).
- Page 7 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Loading Instructions Loading instructions are placed on the inside cover of each dispenser. Essity Internal...
- Page 8 Using Stub Roll Compartment The Tork Matic dispenser allows part of an unused roll to be placed in the bottom compartment of the dispenser and a new roll to be placed in the main roll holder arms. The stub roll feature requires that both tails of the roll are fed through the dispensing mechanism.
- Page 9 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Troubleshooting Problem: Paper is not visible. Ensure paper is properly loaded. Arrows are embossed on the cassette cover to show where paper should be loaded.
- Page 10 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Essity Internal...
- Page 11 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 5510202 - 5510282 - Tork Elevation H1 Matic Hand Towel Roll Dispenser Mounting Hole Dimensions ELEVATION MATIC (5510202; 5510282) 7.1"...
- Page 12 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Recommended Mounting Height (standard access) Mount dispenser securely using four attachment points - two upper and two lower. Full size drilling hole template is located inside dispenser carton.
- Page 13 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Mounting Instructions – ADAAG Guidelines 606 Lavatories and Sinks 606.1 General. Lavatories and sinks shall comply with 606. Advisory 606.1 General. If soap and towel dispensers are provided, they must be located within the reach ranges specified in 308.
- Page 14 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Figure 308.3.1 Unobstructed Side Reach 308.2.2 Obstructed High Reach. Where a high forward reach is over an obstruction, the clear floor space shall extend beneath the element for a distance not less than the required reach depth over the obstruction.
- Page 15 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 309.4 Operation. Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate operable parts shall be 5 pounds (22.2 N) maximum.
- Page 16 Washroom Dispenser Service and Parts Manual Tork Matic Hand Towel Roll Dispenser, H1 System, Elevation Design 5510202; 5510282 Revision Date: 3-13-18 Recessed Mounting for H1 Elevation Matic Dispenser The H1 Matic dispenser can be semi-recessed in an existing stainless steel combination towel and waste cabinet using our 3096020 H1 Matic Stainless Steel Filler Panel.
