Tork Elevation T2 Mini JBT Series Service And Parts Manual

Washroom Dispenser Service and Parts Manual

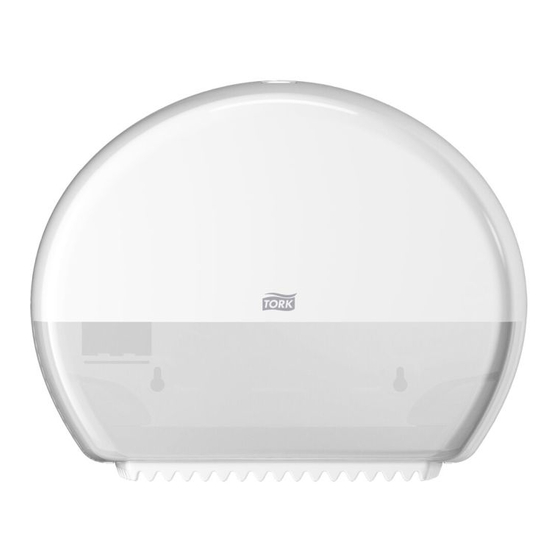

Tork Elevation T2 Mini JBT Dispenser
555020A; 555028A

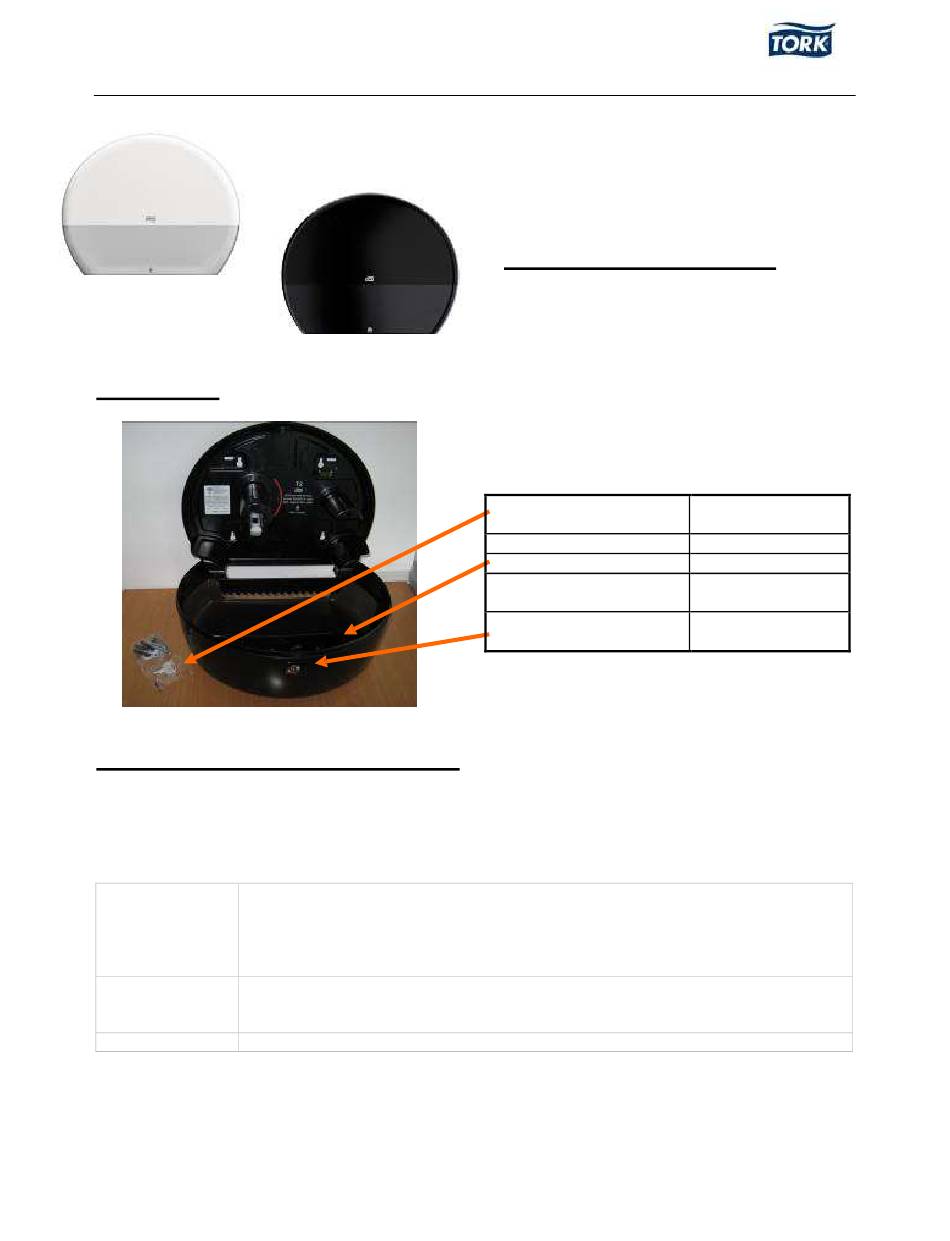

Dispenser Parts
Part Description with Replacement Instructions
Parts with SKU numbers are available for order as of the revision date on the manual. Contact an
Essity Sales Rep or the Essity Quality Coordinator to order these parts.
Replacement SKU
225550 White
225551 Black
205502 White
205503 Black
200260 KEY
Essity Internal
Description & Replacement Instructions
T2 HOOD
The hood can be replaced. There is a tabbed pivot on the hood that should be
aligned with the notched hole on the back. The notch and tab will line up when the
cover is open approximately 45 degrees. Push out to release from back on one
side, then the other.
ELEVATION LOCK (WHITE OR BLACK)
The lock can be replaced by pressing the plastic tabs on each side to free the lock
from the opening.
METAL KEY FOR TORK DISPENSERS
Tork Elevation T2 Mini JBT Dispenser:
T2 System: 555020A (white); 555028A (black)
Dispenser Dimensions HxWxD Inches (cm):
10.8 x 13.6 x 5.2 (27.5 x 34.5 x 13.2 cm)
Refill Product Options (T2 System):
12024402 (Tork Advanced, 2 Ply)
12013903 (Tork Advanced, 1 Ply)
120246 (Tork Advanced, 2-Ply)
Part Description
KEY FOR TORK
DISPENSER
T2 HOOD WHITE
T2 HOOD BLACK
ELEVATION LOCK -
WHITE
ELEVATION LOCK -
BLACK
1 of 7
Revision Date: 3-12-18
Replacement SKU
200260 KEY
225550
225551
205502
205503
