Washroom Dispenser Service and Parts Manual
Tork Elevation Liquid Skincare Dispenser
570020A; 570028A

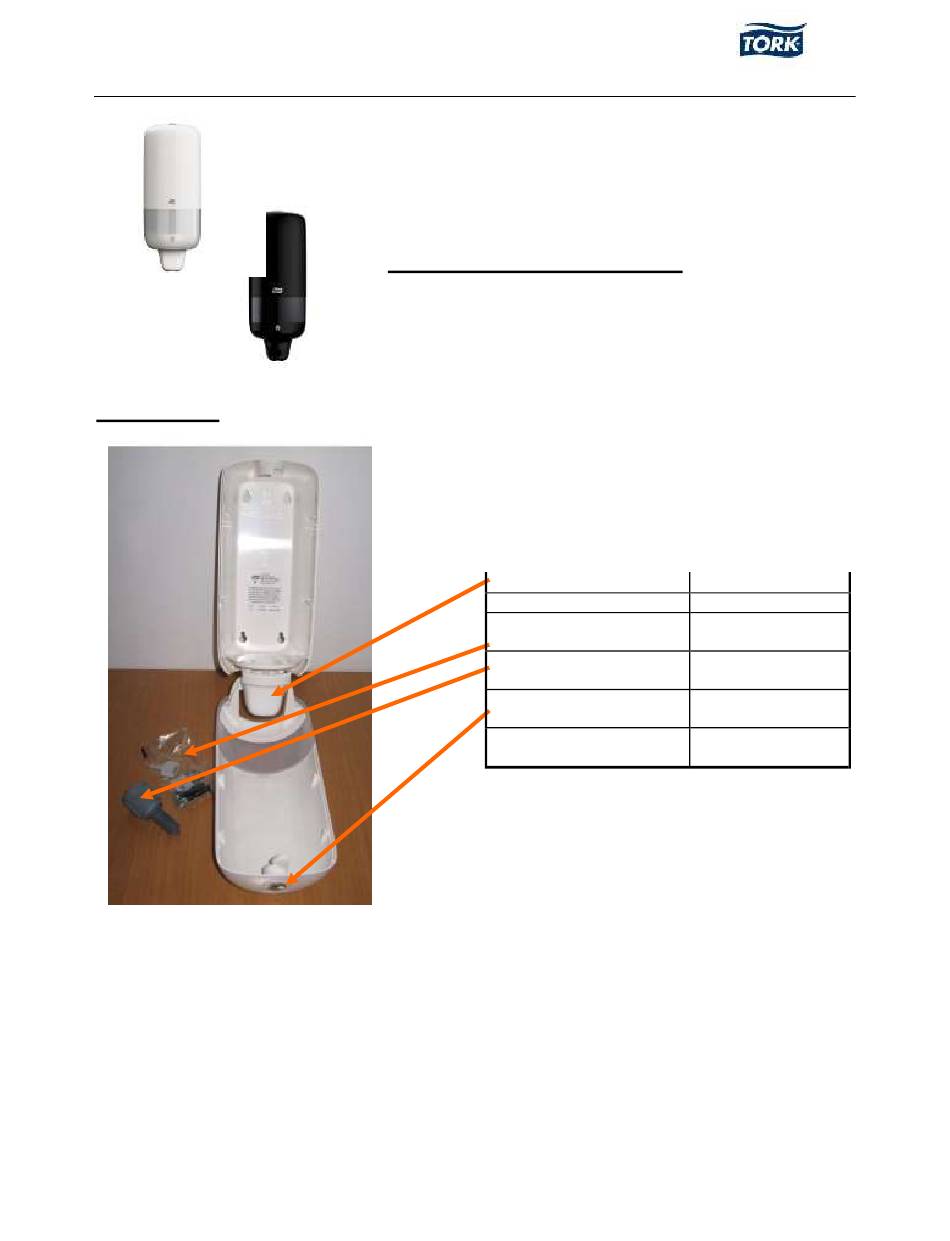

Dispenser Parts
Essity Internal

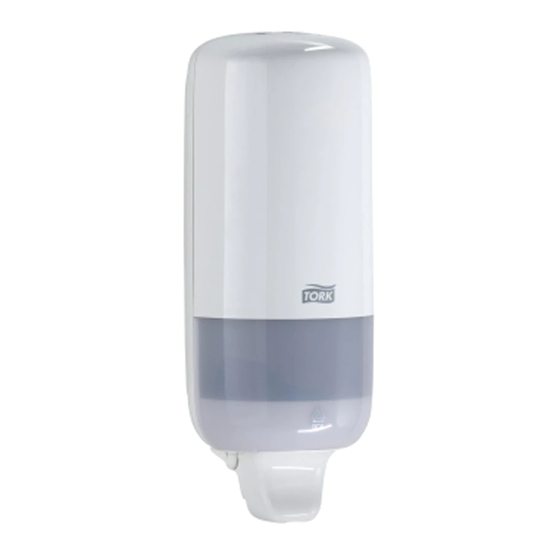

Tork Elevation Liquid Soap Dispenser:
S1 System: 570020A (white); 570028A (black)
Dispenser Dimensions HxWxD Inches (cm):
11.5 x 4.4 x 4.5 (29.1 x 11.2 x 11.4 cm)
Soap Product Options (1 L bottles):
400011 - Tork Premium Extra Mild
400012 - Tork Premium Luxury Soft Liquid Soap
400013 - Tork Premium Hair and Body Liquid Soap
400014 - Tork Premium Antibacterial Liquid Soap
400016 - Tork Premium Alcohol Gel Hand Sanitizer
Part Description
PUSH BUTTON - WHITE
PUSH BUTTON - BLACK
KEY FOR TORK
DISPENSER
SOAP PUMP (GREY
CAP & BLACK RUBBER)
ELEVATION LOCK -
WHITE
ELEVATION LOCK -
BLACK
1 of 6
Revision Date: 3-12-18
Liquid Soap
Non Perfumed
Replacement SKU
205602
205603
200260 KEY
252380-02 NEW
205502
205503
