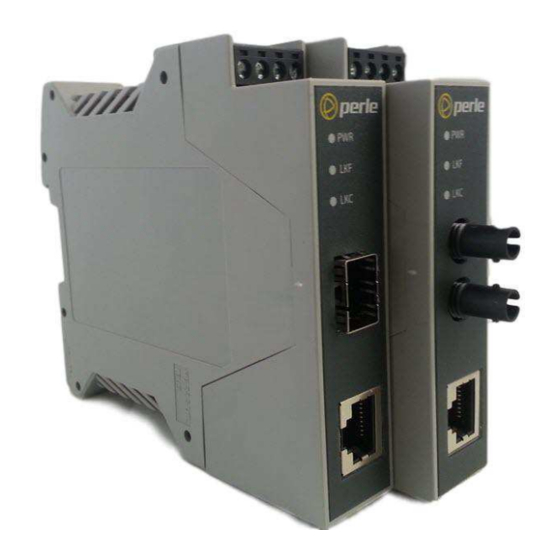

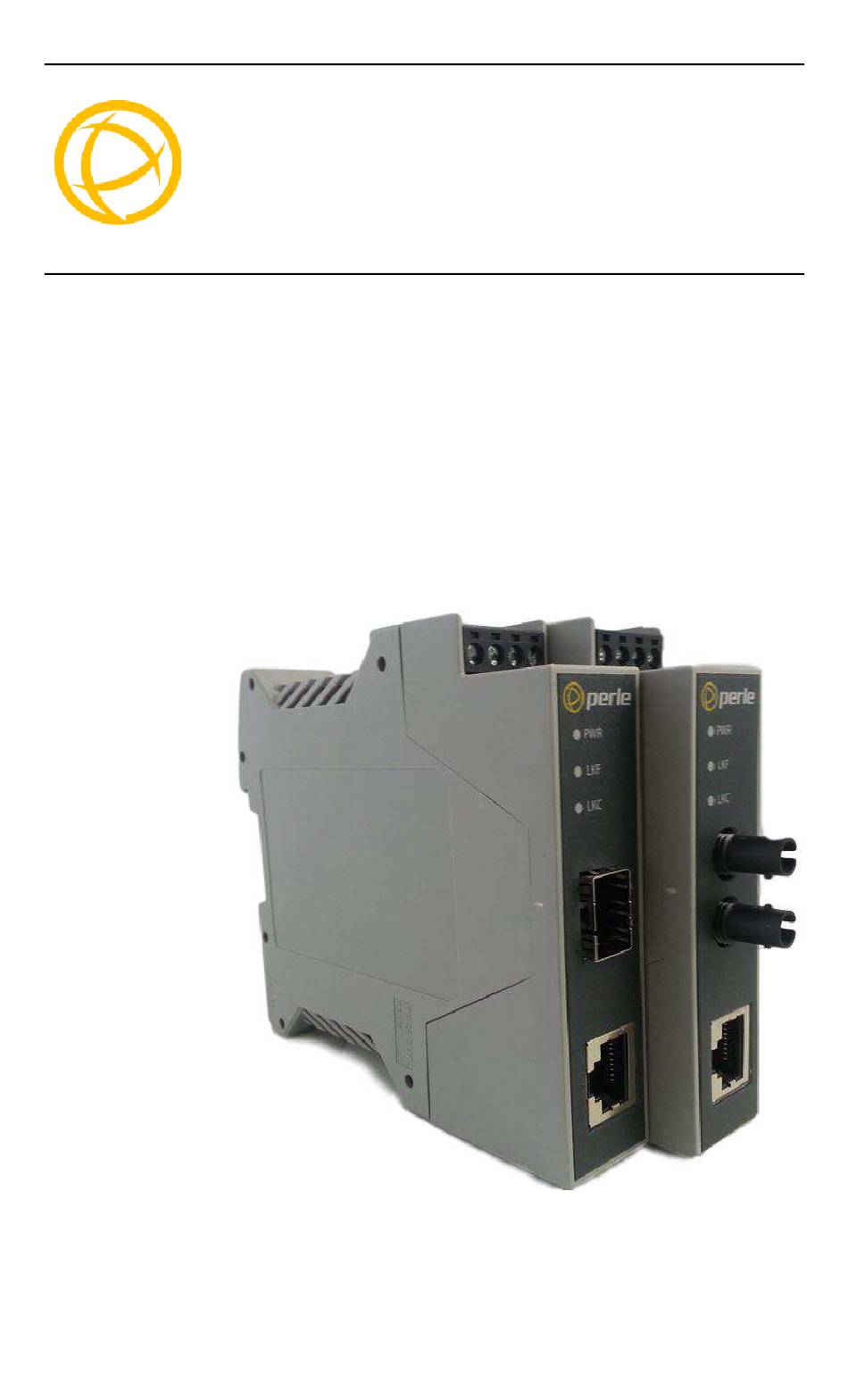

- Page 1 Perle Fast Ethernet Media Converters Installation Guide SR-100-XXXXXX- (XT) SR-100-SFP- (XT) P/N 5500443-10 (Rev F)
-
Page 2: Cautions And Warnings
Preface Audience This guide is for the network or computer technician responsible for installing the Perle SR-100 Gigabit Media Converter. Familiarity with the concepts and terminology of Ethernet and local area networks is required. Purpose This document describes the hardware and physical characteristics of the Perle SR-100 Media Converter. - Page 3 Warning: In case of malfunction or damage, no attempts at repair should be made by the user. All repairs need to be made by a qualified Perle representative. Do not dismantle this product. Warning: Transient protection shall be provided that is set at a level not exceeding 140% of the peak rated voltage value at the supply terminals to the equipment.
- Page 4 (copper) to a 100Base-X connection (fiber). The fiber connection can be either single mode (SM) or multimode (MM) and can operate over different wavelengths and distances, depending on the model selected (see table below). Perle Media Converters (SR-100) are also available in Extended Temperature models.
- Page 5 Note 1 Note 1: Fiber characteristics will depend on the SFP fiber module selected Note: Please visit Perle’s web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Perle SR-100 Fast Ethernet Media Converter Installation Guide...
-
Page 6: Installation
2. Release both tabs as located in the diagram (Step 1). 3. Gently side the case open 1/3 of the way to expose the DIP switches (Step 2). You will hear an audible click. Do not force the case completely open. Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 7: Dip Switches
DIP Switches Set the DIP Switches accordingly, and then slide the case together until you hear an audible click. Reserved Auto Negotiation Smart Link Pass-Through Far End Fault Reserved Pause Loopback Reserved Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 8: Dip Switch Settings
Disable: In this mode, the links on the fiber and copper sides can be brought up and down independently of each other. A loss of link on either the fiber ports or copper ports can take place without affecting the other connection. Perle SR-100 Fast Ethernet Media Converter Installation Guide... - Page 9 (A) loses fiber connection on its receiver (A) sends an FEF (B) detects loss of link in its fiber receiver (B) drops link on copper connection through Link Pass-Through (A) Link on copper connection is not affected. Perle SR-100 Fast Ethernet Media Converter Installation Guide...
- Page 10 (RX) fiber connection is looped back to the transmit (TX) fiber connection. The state of the copper is not relevant and no data or link status is passed through to the copper side. Reserved (Switch 8) Perle SR-100 Fast Ethernet Media Converter Installation Guide...
-
Page 11: Installing The Copper Cable
Installing the Copper Cable • Locate 100Base-TX compliant copper cables with male, RJ45 connectors installed at both ends. • Connect the RJ45 cable between the Perle media converter and the device. Note: The Perle media converter supports Auto-MDI-X, either a straight-through or cross over Ethernet cable may be used. -
Page 12: Connecting The Terminal Block
7. Check that the PWR LED light is lit. 8. Check LED indicators in the guide before and applying power to the media converter. 9. Ensure that there is one individual conductor for each clamping point. Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 13: Operation
• On: Copper link is present. • Blinking quickly: Copper link present and receiving data. • Blinking slowly: Copper link disabled because of fiber link loss. • Off: No copper link present. Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 14: Other Features
If it has not, the link will be forced down again, however if the original problem has been resolved, the link will be restored Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 15: Troubleshooting
At the remote media converter, the data will be looped back and passed through the fiber, once again, to pass through the local converter to the copper link. Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 16: Technical Specifications
ICES-003 EN55032(CISPR32) EN61000-6-4 EN55024 IEC/EN 61000-6-2 General Immunity for Industrial Environments IEC/EN 61000-4-2 (ESD): Contact: EN 61000-4-3 (RS) EN 61000-4-4 (EFT) EN 61000-4-5 (Surge EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) EN 61000-4-11 Perle SR-100 Fast Ethernet Media Converter Installation Guide... -
Page 17: Fiber Optic Specifications
RX: 1550 Max: 0 Max: -3 TX: 1550 Min: -5 Min: -34 SR-100-ST80 RX: 1550 Max: 5 Max: -3 TX: 1550 Min: 0 Min: -35 SR-100-SC120 RX: 1550 Max: 5 Max: -3 Perle SR-100 Fast Ethernet Media Converter Installation Guide... - Page 18 Ethernet Copper Cabling Requirements • Category 5e UTP or STP • Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date specifications. http://www.perle.com/ Perle SR-100 Fast Ethernet Media Converter Installation Guide...
-
Page 19: Mechanical Drawings
Mechanical Drawings Perle SR-100 Fast Ethernet Media Converter Installation Guide... - Page 20 Alternatively, a downward force on the clip will release the clip. 2. When the clip is released, pull the bottom of the SR-100 out slightly and remove the SR-100 from the DIN rail. Perle SR-100 Fast Ethernet Media Converter Installation Guide...
-
Page 21: Warranty Registration
Warranty / Registration Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. A Technical Support Query may be made via this web page. www.perle.com/support_services/support_request.shtml... - Page 22 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
